Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the bolt and nut from the trailing arm (6) and the knuckle (8).
  3. Remove the nut and bolt from the trailing arm (6) and the trailing arm bracket.
  4. Remove the trailing arm (6) from the vehicle.

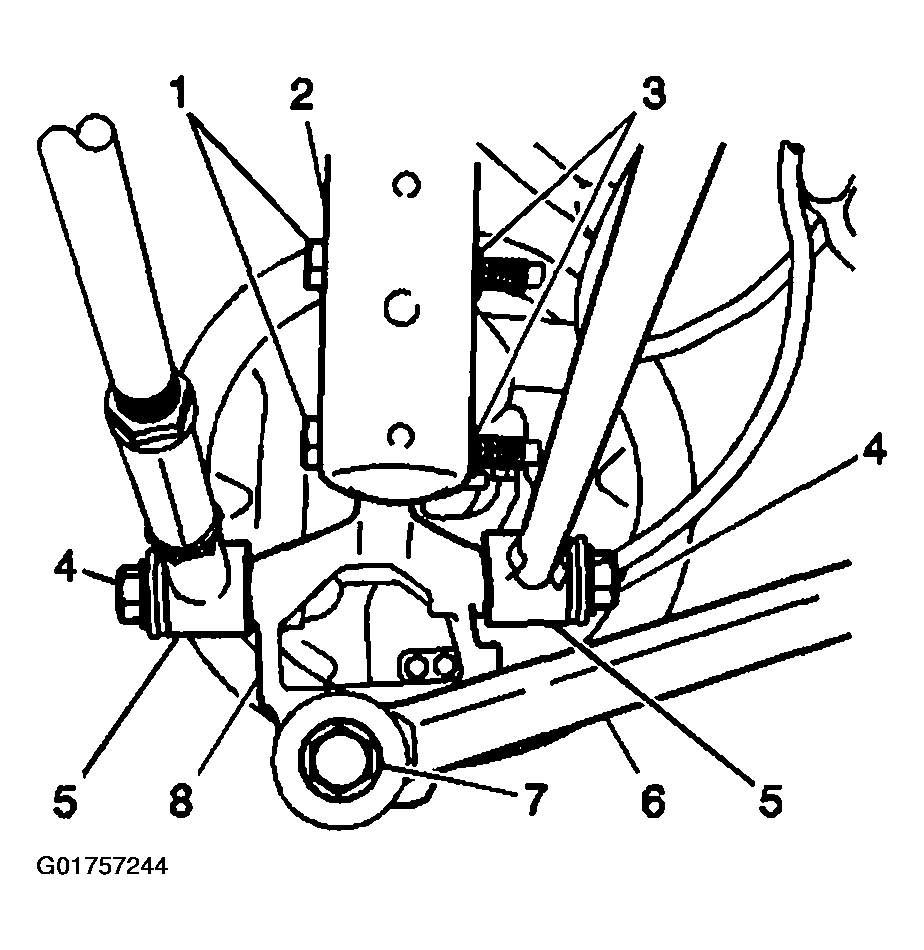

    Fig 1: Removing Bolt, Nut From Trailing Arm And Knuckle
    G01757244Courtesy of GENERAL MOTORS CORP.
