Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trailing arm (6) to the trailing arm bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolt and nut to the trailing arm (6) and the trailing arm bracket.

    Tighten

    Tighten the bolt to 105 N.m (77 lb ft).

  3. Install the trailing arm (6) to the knuckle (8).
  4. Install the bolt and nut to the trailing arm (6) and the knuckle (8).

    Tighten

    Tighten the nut to 70 N.m + 65 degrees (52 lb ft + 65 degrees).

  5. Lower the vehicle.

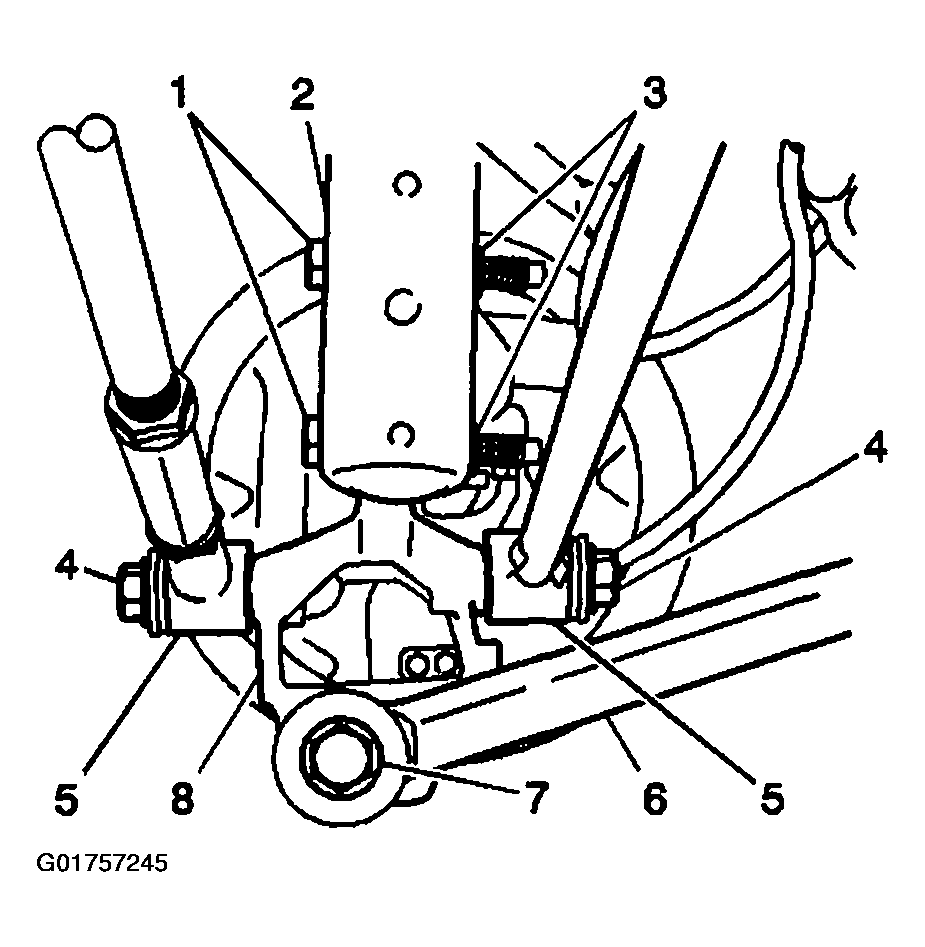

    Fig 1: Installing Bolt, Nut To Trailing Arm And Knuckle
    G01757245Courtesy of GENERAL MOTORS CORP.
