Disassembly Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove strut from vehicle. Refer to Strut Assembly Replacement
Install the strut (5) to the J 34013-B. Use wing nuts to secure the tool to the mounting holes. Position the wide end of the adapter outboard.

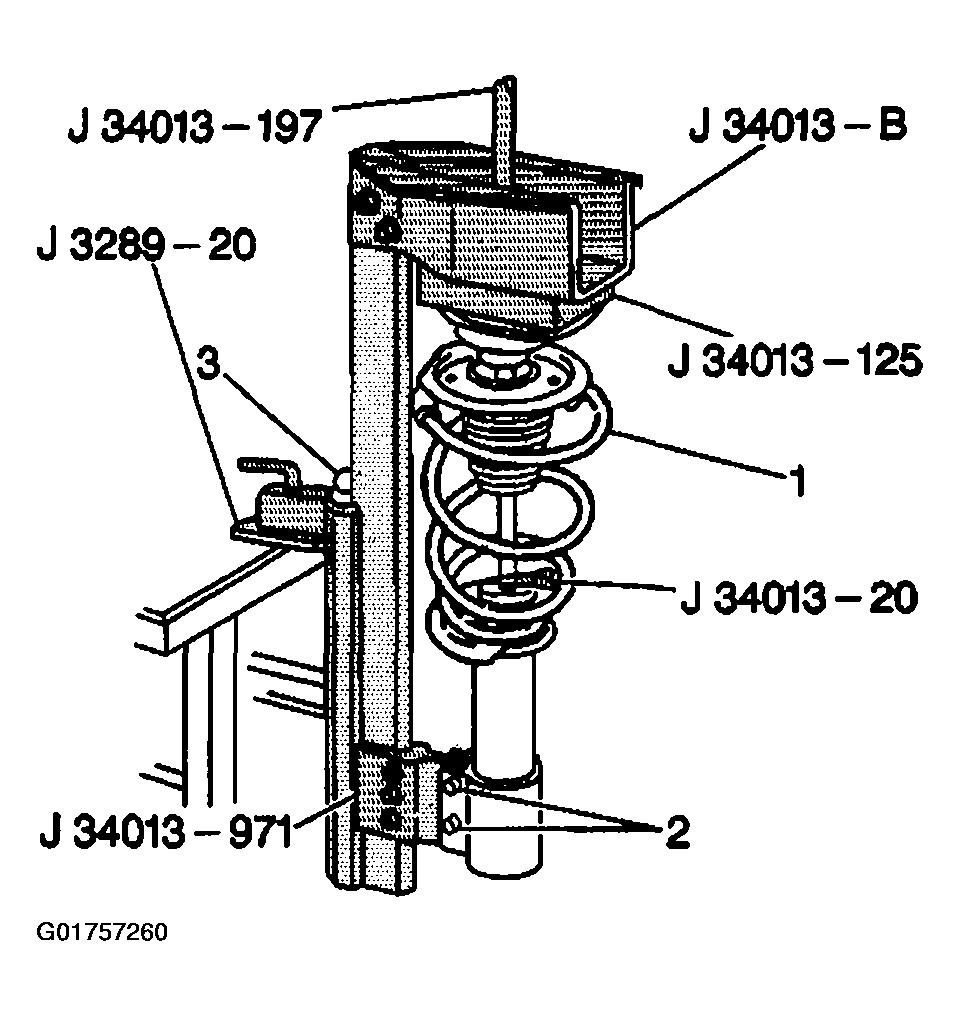

Fig 1: Installing Strut To J 34013-B
Courtesy of GENERAL MOTORS CORP.

Important: Align J 34013-971 and J 34013-125 so that the tools may open and close together. The tools will not open if the tools do not align properly.
Install J 34013-971 and J 34013-125.
Install the strut into J 34013-971 and J 34013-125.
Close J 34013-971 and J 34013-125.
Install the locking pins (2) through the holes of J 34013-B and the struts mounting holes.
CAUTION: Do not over compress the spring. Severe overloading may cause tool failure which could result in bodily injury.
Turn the screw (3) on J 34013-B counterclockwise to raise the strut up to J 34013-125.
Compress the spring approximately 13 mm (0.50 in) or 3-4 complete turns of the operating screw.

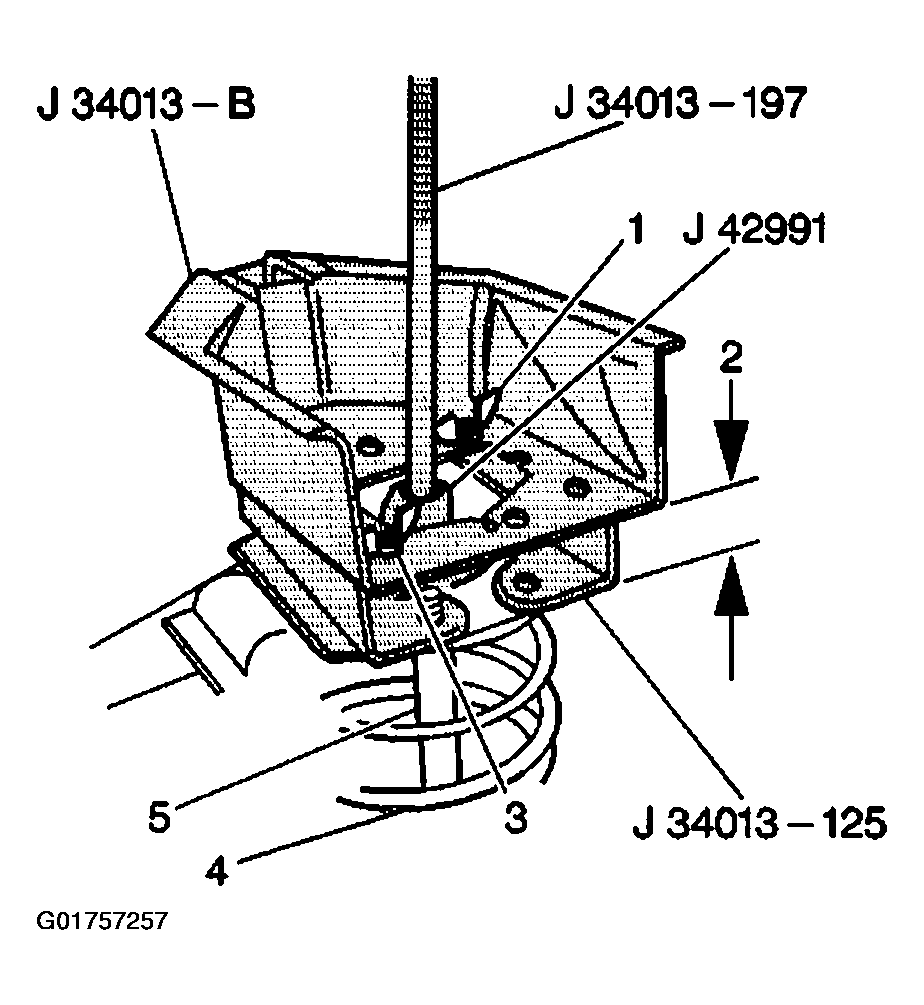

Fig 2: Installing Locking Pins Through Holes Of J 34013-B And Struts Mounting Holes
Courtesy of GENERAL MOTORS CORP.
Insert J 42991 on the nut.
Hold shaft with a T-45 bit.
Use J42991 in order to remove the nut while preventing the rod from rotating with a T-45 TORX® bit.
Discard the strut nut.

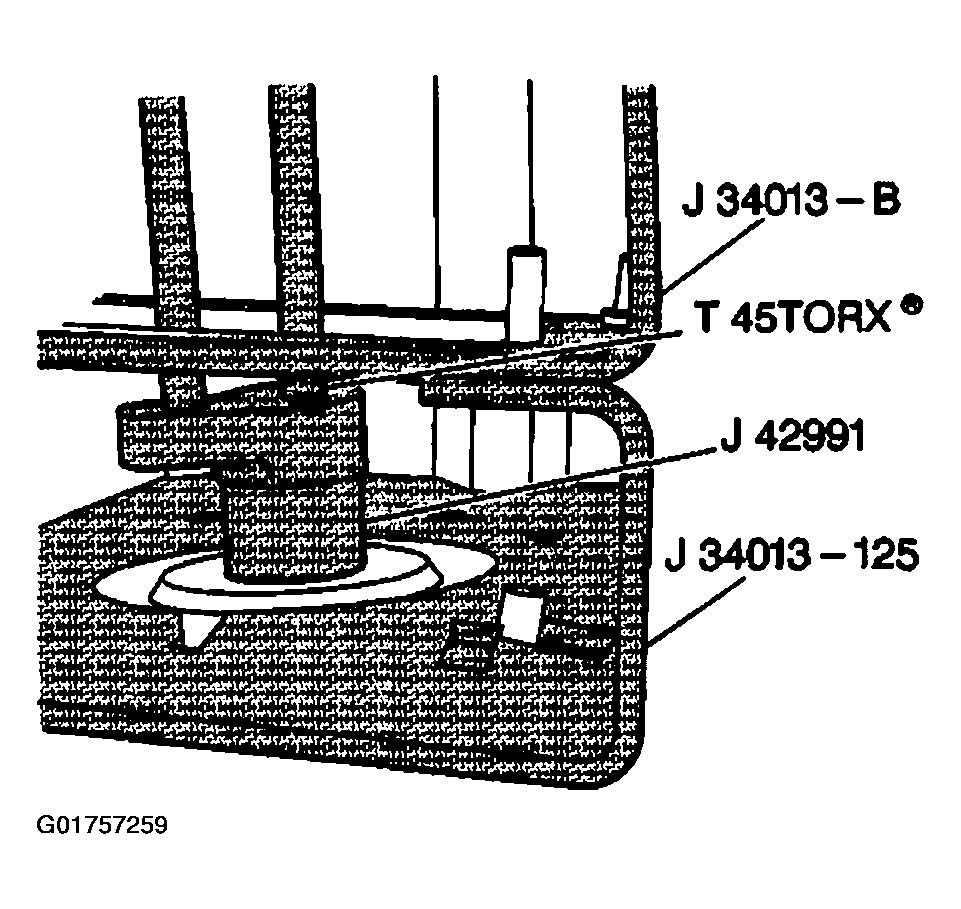

Fig 3: Use J42991 To Remove Nut While Preventing Rod From Rotating With T-45 TORX® Bit
Courtesy of GENERAL MOTORS CORP.
Turn the operating screw (3) on J 34013-B clockwise to fully relieve the spring compression.

Fig 4: Turn Operating Screw On J 34013-B Clockwise To Relieve Spring Compression
Courtesy of GENERAL MOTORS CORP.
