Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the left and right stabilizer shaft link nuts from the stabilizer shaft links (1).

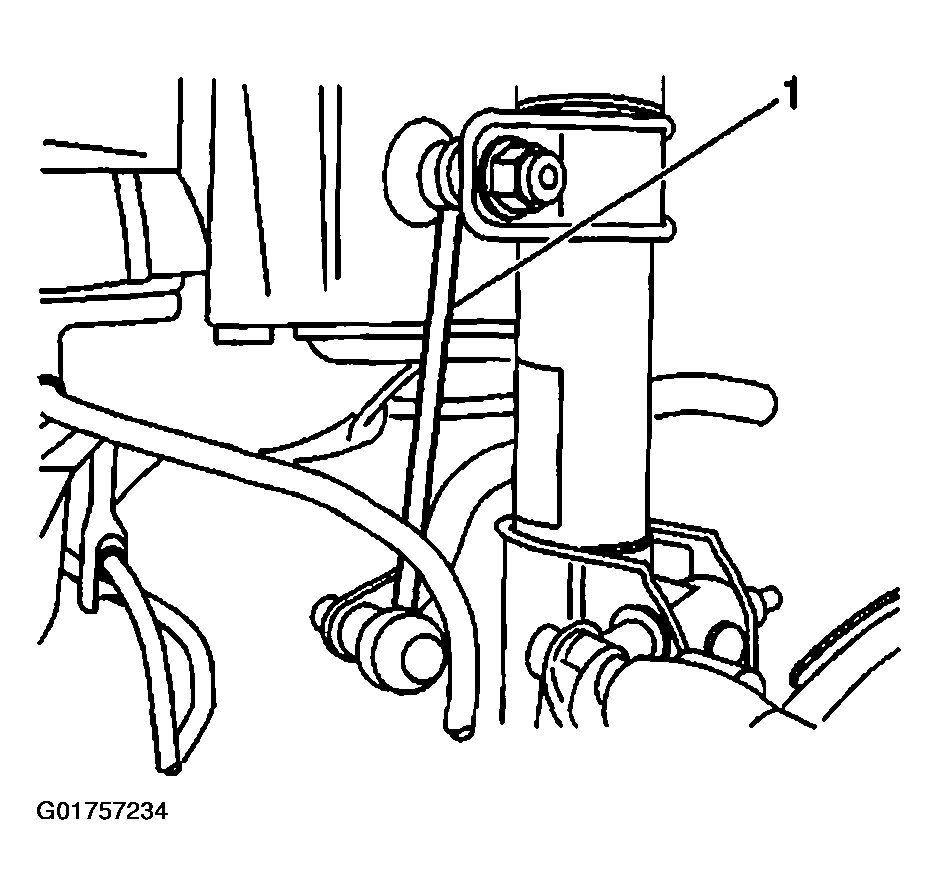

    Fig 1: Removing Left/Right Stabilizer Shaft Link Nuts From Stabilizer Shaft Links
    G01757234Courtesy of GENERAL MOTORS CORP.
  4. Remove the insulator brackets (3) and the bolts from the stabilizer shaft (1).
  5. Remove the stabilizer shaft (1) from the rear suspension support.

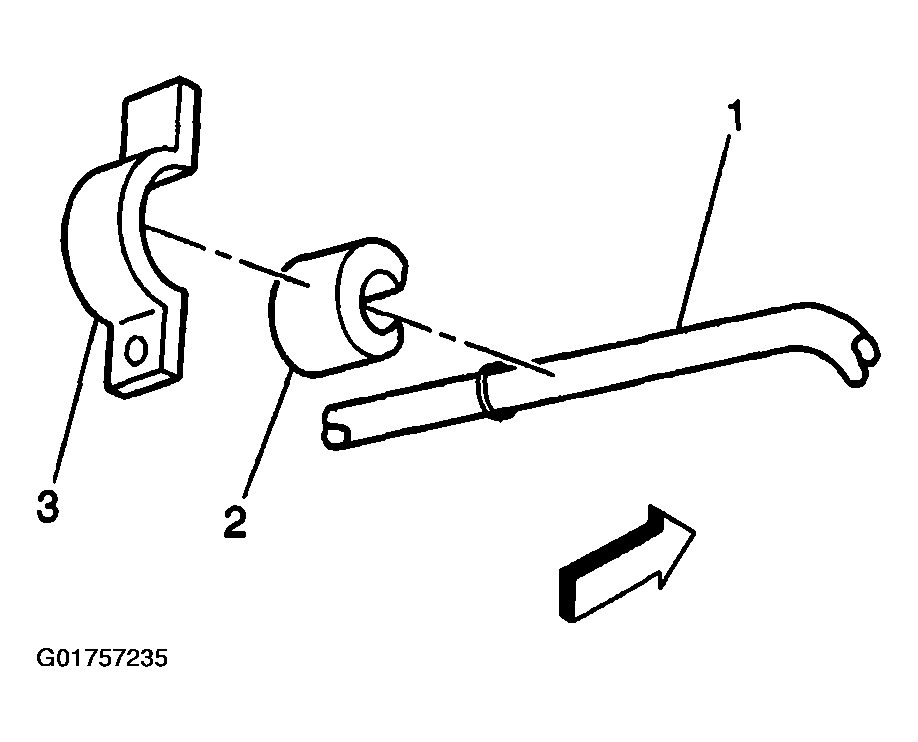

    Fig 2: Insulator Brackets, Bolts Removed And Stabilizer Shaft Removed
    G01757235Courtesy of GENERAL MOTORS CORP.
