Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the stabilizer shaft link nut from the stabilizer shaft link (1) and the stabilizer shaft (2).

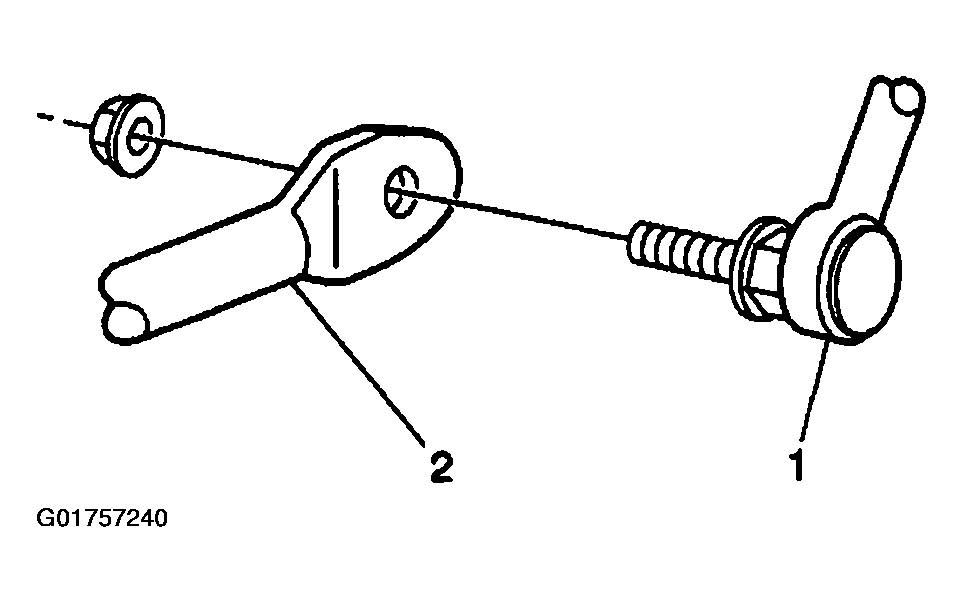

    Fig 1: Stabilizer Shaft Link Nut Removed From Stabilizer Shaft Link And Stabilizer Shaft
    G01757240Courtesy of GENERAL MOTORS CORP.
  3. Remove the stabilizer shaft link nut from the stabilizer shaft link (1) and the strut.
  4. Remove the stabilizer shaft link (1) from the vehicle.

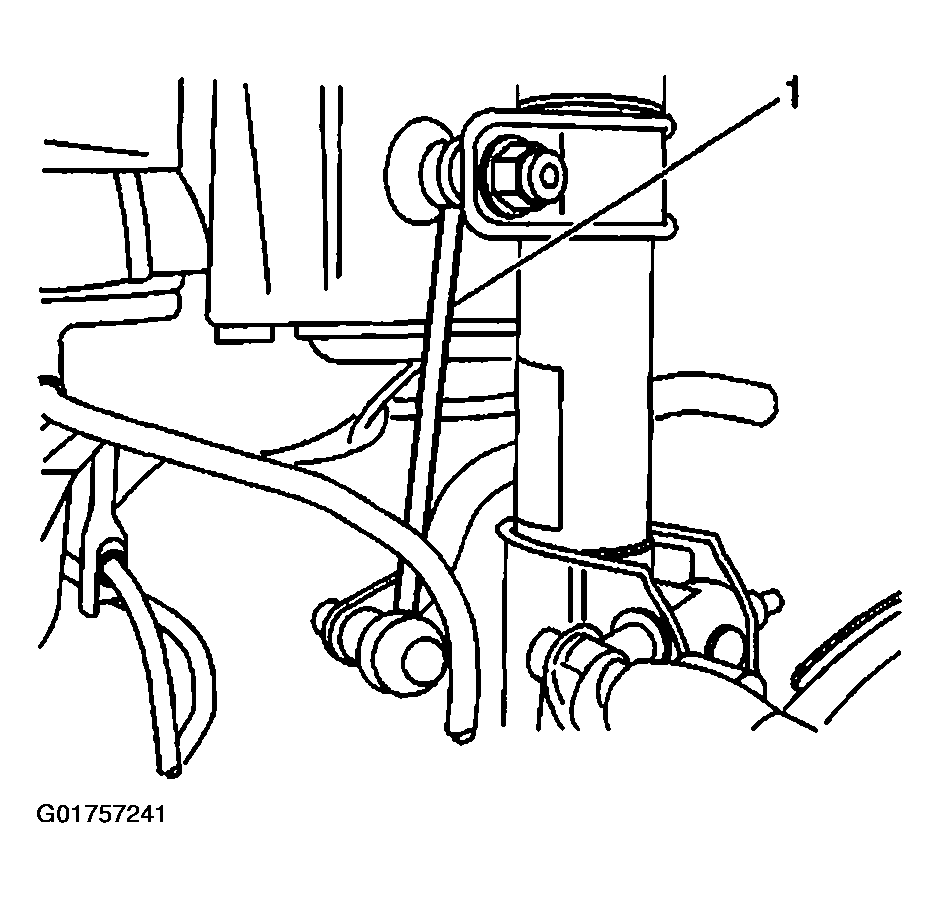

    Fig 2: Removing Stabilizer Shaft Link Nut From Stabilizer Shaft Link And Strut
    G01757241Courtesy of GENERAL MOTORS CORP.
