Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft link (1) to the vehicle.
  2. Connect the stabilizer shaft link (1) to the stabilizer shaft (2).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the stabilizer shaft link nut to the stabilizer shaft link (1) and the stabilizer shaft (2).

    Tighten

    Tighten the nut to 35 N.m (26 lb ft).

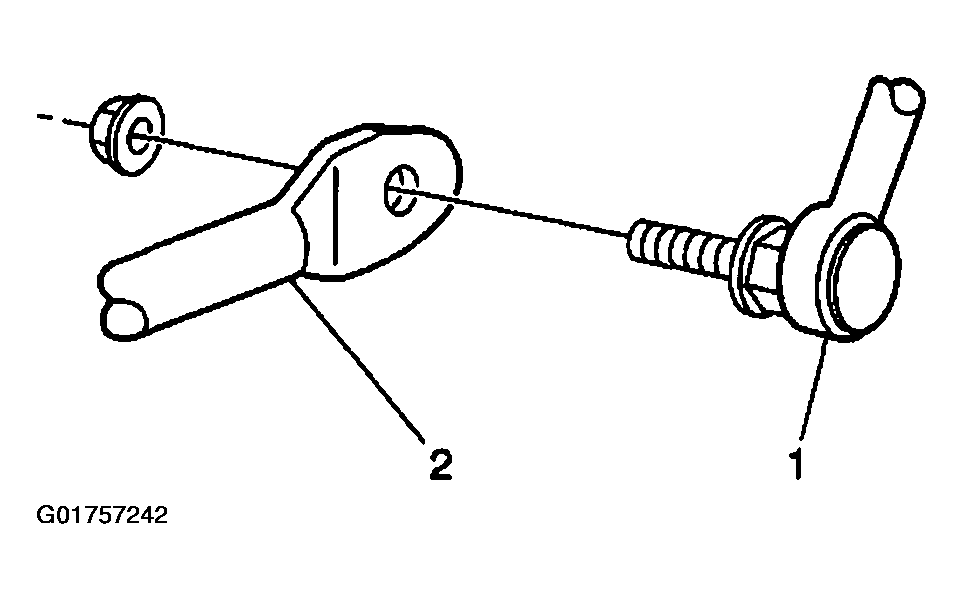

    Fig 1: Installing Stabilizer Shaft Link To Vehicle.
    G01757242Courtesy of GENERAL MOTORS CORP.
  4. Connect the stabilizer shaft link (1) to the strut.
  5. Install the stabilizer shaft link nut to the stabilizer shaft link (1) and the strut.

    Tighten

    Tighten the nut to 35 N.m (26 lb ft).

  6. Lower the vehicle.

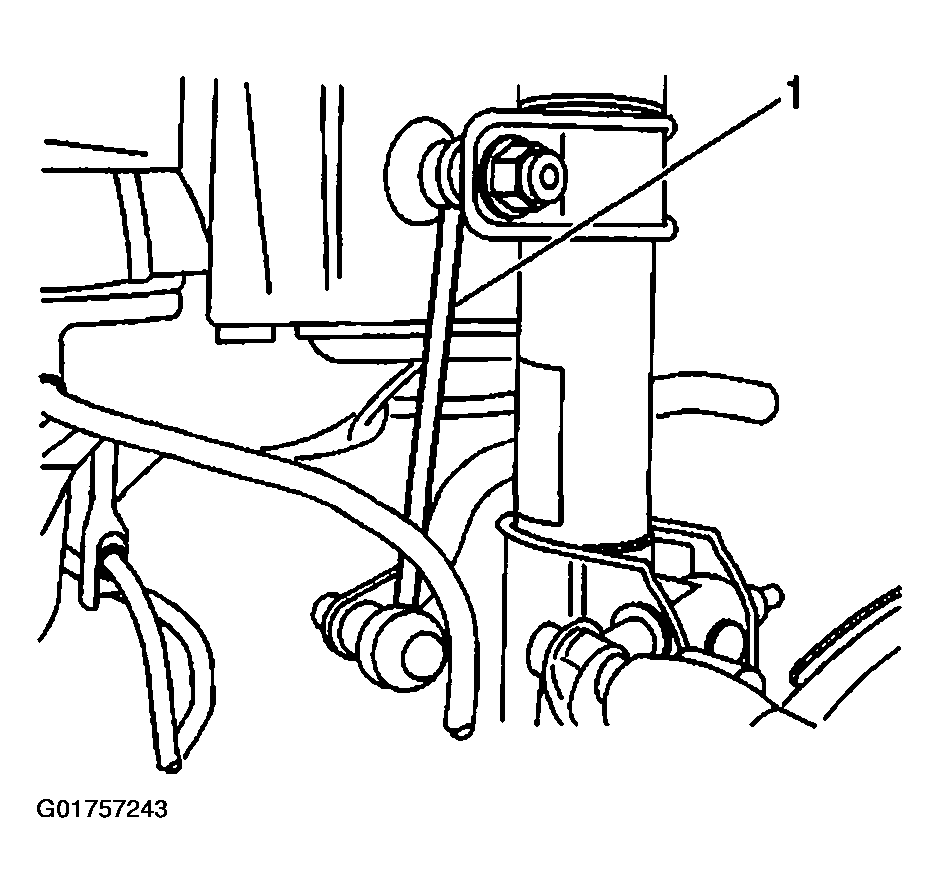

    Fig 2: Installing Stabilizer Shaft Link Nut To Stabilizer Shaft Link And Stabilizer Shaft
    G01757243Courtesy of GENERAL MOTORS CORP.
