Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the bolt from the stabilizer shaft insulator bracket (3).
  3. Remove the stabilizer shaft insulator bracket.
  4. Remove the stabilizer shaft insulator (2) from the stabilizer shaft.

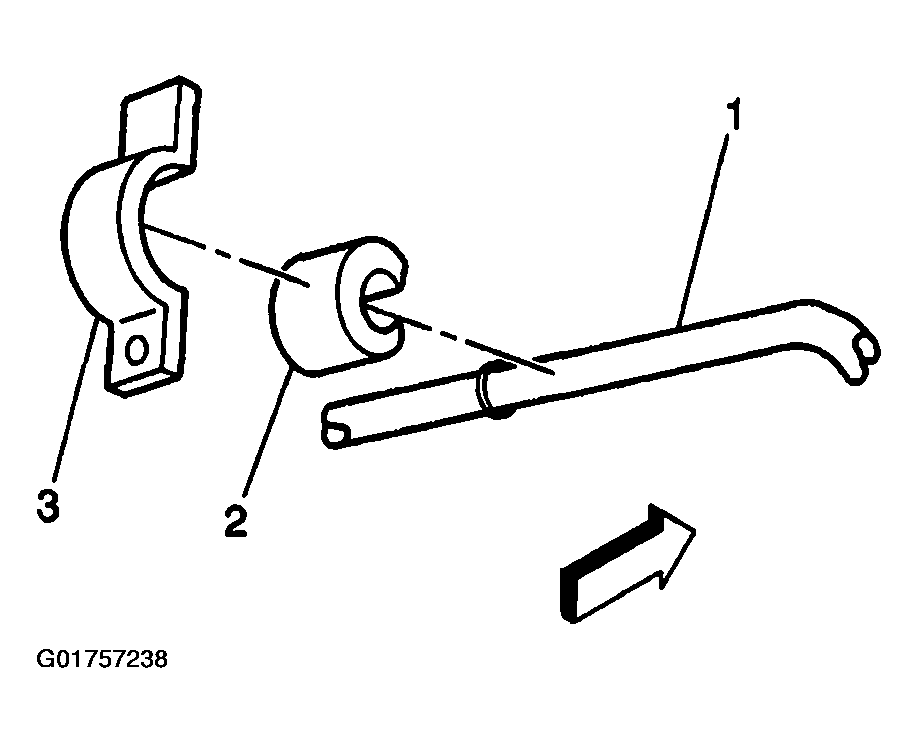

    Fig 1: Stabilizer Shaft Insulator Bracket, Insulator And Bolt Removed
    G01757238Courtesy of GENERAL MOTORS CORP.
