Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft insulator (2) to the stabilizer shaft.
  2. Install the stabilizer shaft insulator bracket (3).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the stabilizer shaft bracket bolts.

    Tighten

    Tighten the nuts to 48 N.m (35 lb ft).

  4. Lower the vehicle.

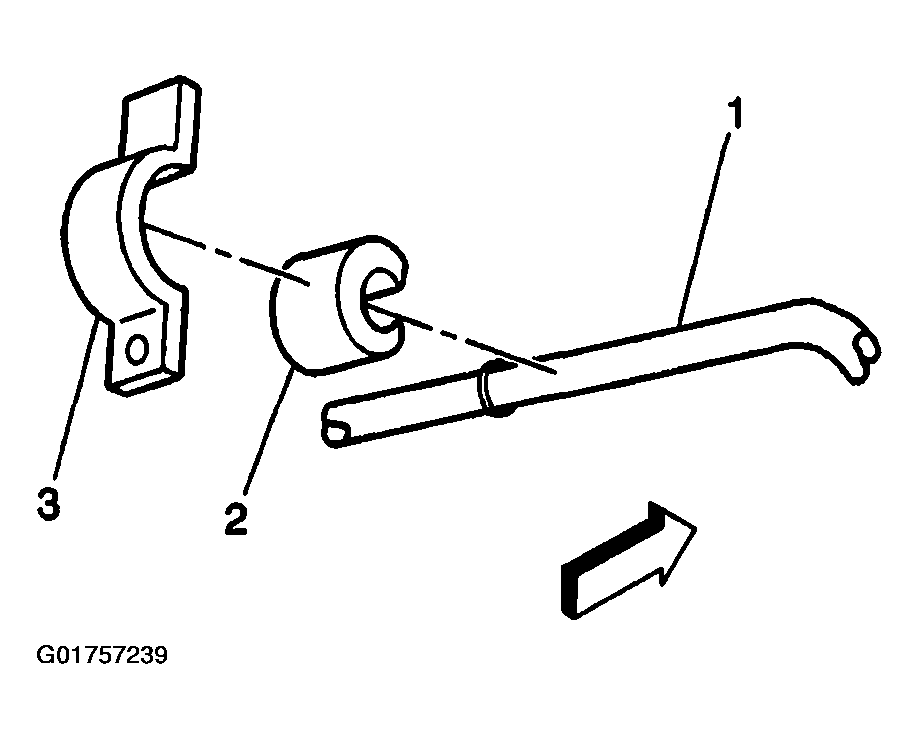

    Fig 1: Installing Stabilizer Shaft Insulator Bracket, Insulator And Bolt
    G01757239Courtesy of GENERAL MOTORS CORP.
