Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel bearing/hub.
    CAUTION: These fasteners MUST be replaced with new fasteners anytime they become loose or are removed. Failure to replace these fasteners after they become loose or are removed may cause loss of vehicle control and personal injury.
    NOTE: FASTENER NOTICE
  2. Install NEW wheel bearing/hub bolts.

    Tighten

    Tighten the NEW wheel bearing/hub bolts to 130 N.m (96 lb ft).

  3. Install the wheel drive shaft nut. Refer to DRIVE SHAFT in Wheel Drive Shafts.
  4. Install the brake rotor. Refer to FRONT BRAKE ROTOR .
  5. Install the brake caliper bracket with the brake caliper. Refer to FRONT BRAKE CALIPER BRACKET .

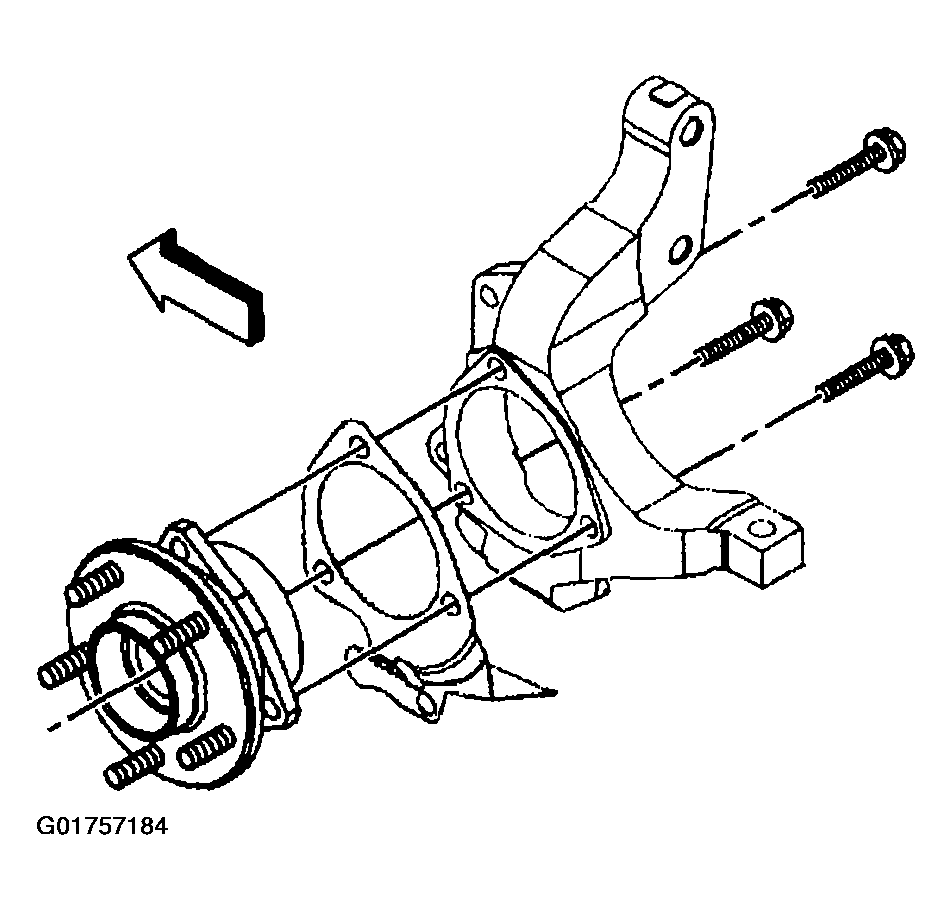

    Fig 1: Wheel Bearing/Hub And Bolts
    G01757184Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the connector clip engages the bracket properly.
  6. Install the wheel speed sensor electrical connector to the bracket.

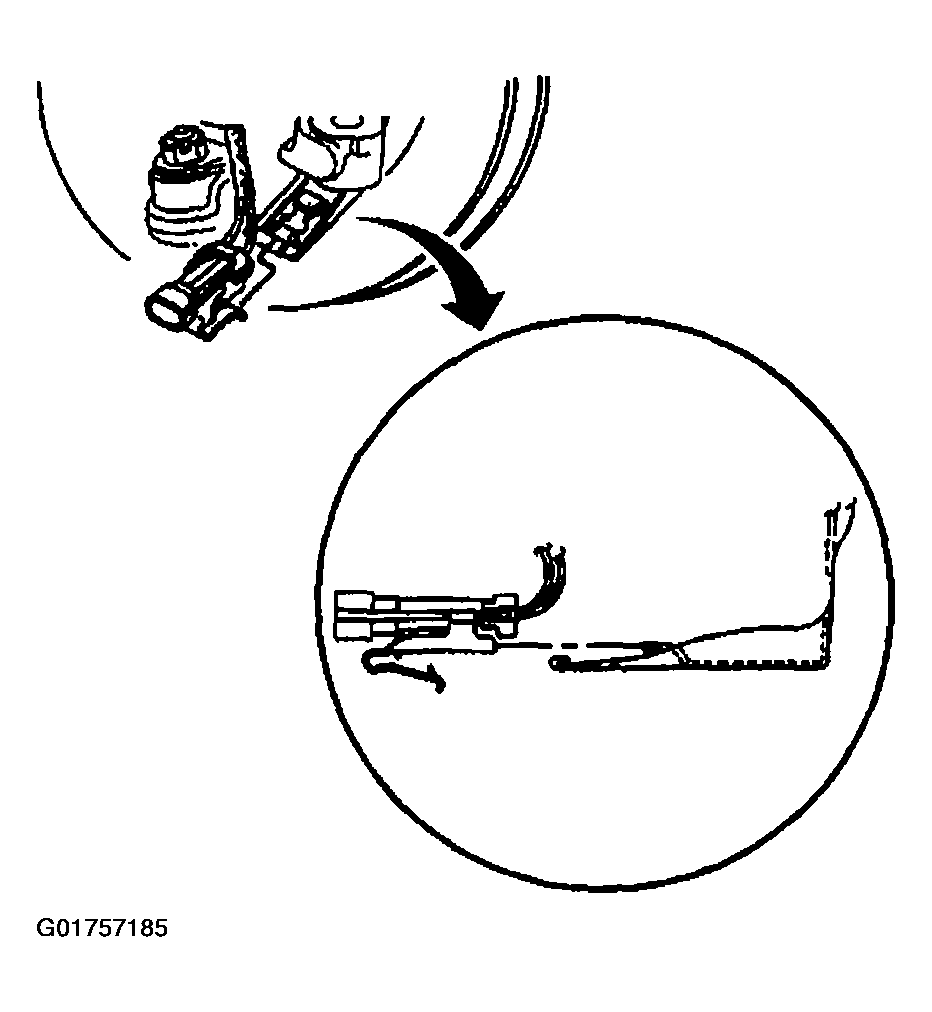

    Fig 2: Installing Wheel Speed Sensor Electrical Connector To Bracket
    G01757185Courtesy of GENERAL MOTORS CORP.
  7. Connect the wheel speed sensor electrical connector (2).
  8. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  9. Lower the vehicle.

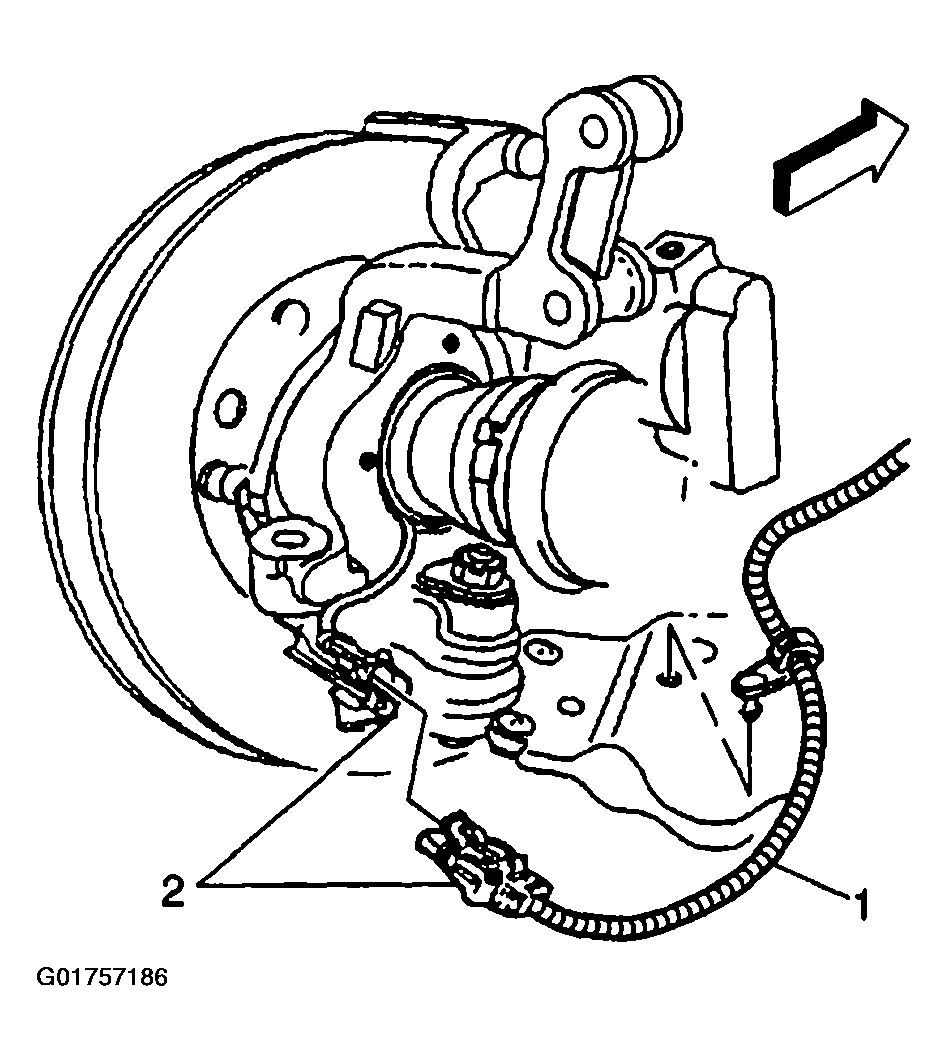

    Fig 3: Connecting Wheel Speed Sensor Electrical Connector
    G01757186Courtesy of GENERAL MOTORS CORP.
