Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle and suitably support the vehicle.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the stabilizer shaft link bolt and nut.
  4. Remove the stabilizer shaft link from the vehicle.

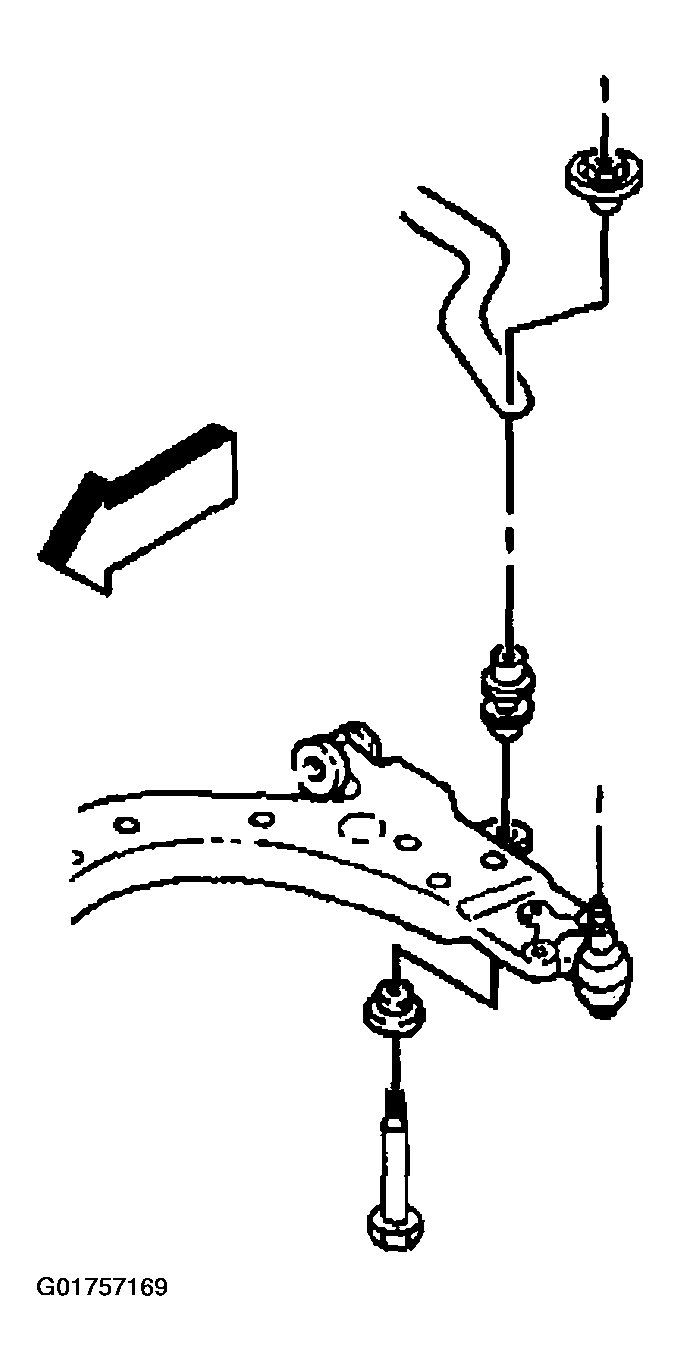

    Fig 1: Stabilizer Shaft Link Bolt And Nut Removed
    G01757169Courtesy of GENERAL MOTORS CORP.
