Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer link into the vehicle.
    NOTE: FASTENER NOTICE
  2. Install the stabilizer shaft link bolt and nut.

    Tighten

    Tighten the stabilizer shaft link nut to 23 N.m (17 lb ft).

  3. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Lower the vehicle.

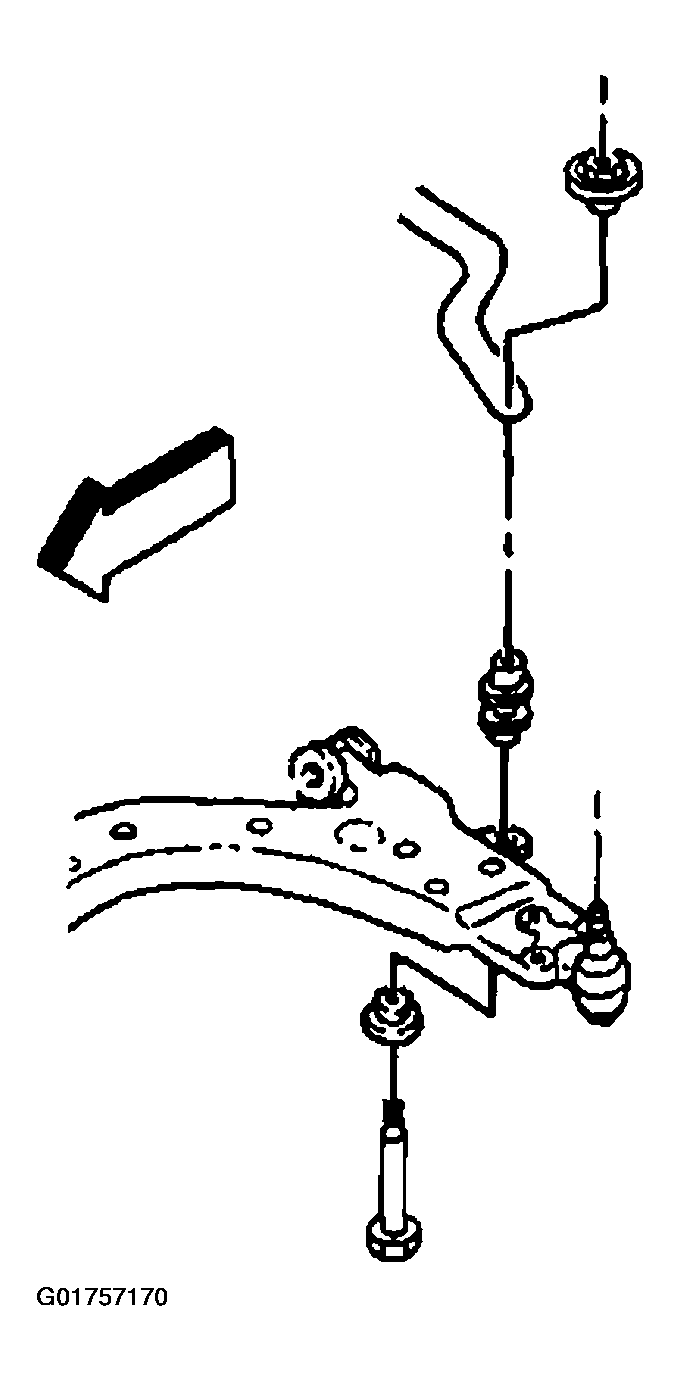

    Fig 1: Installing Stabilizer Shaft Link Bolt And Nut
    G01757170Courtesy of GENERAL MOTORS CORP.
