Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the left and right side stabilizer shaft insulator bracket bolts.
  3. Remove the left and right side stabilizer shaft insulator brackets.

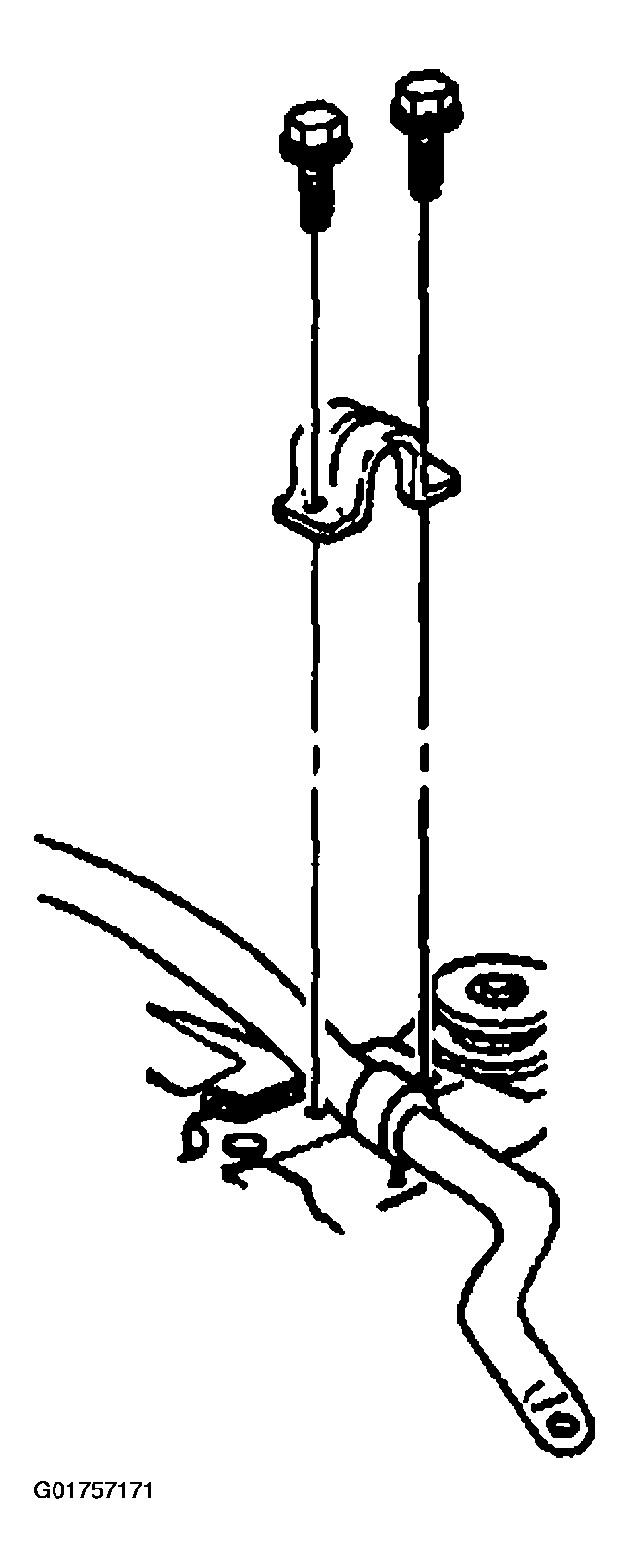

    Fig 1: Left/Right Side Stabilizer Shaft Insulator Brackets And Bolts Removed
    G01757171Courtesy of GENERAL MOTORS CORP.
  4. Remove the left and right side stabilizer shaft insulators (1) from the stabilizer shaft (2).

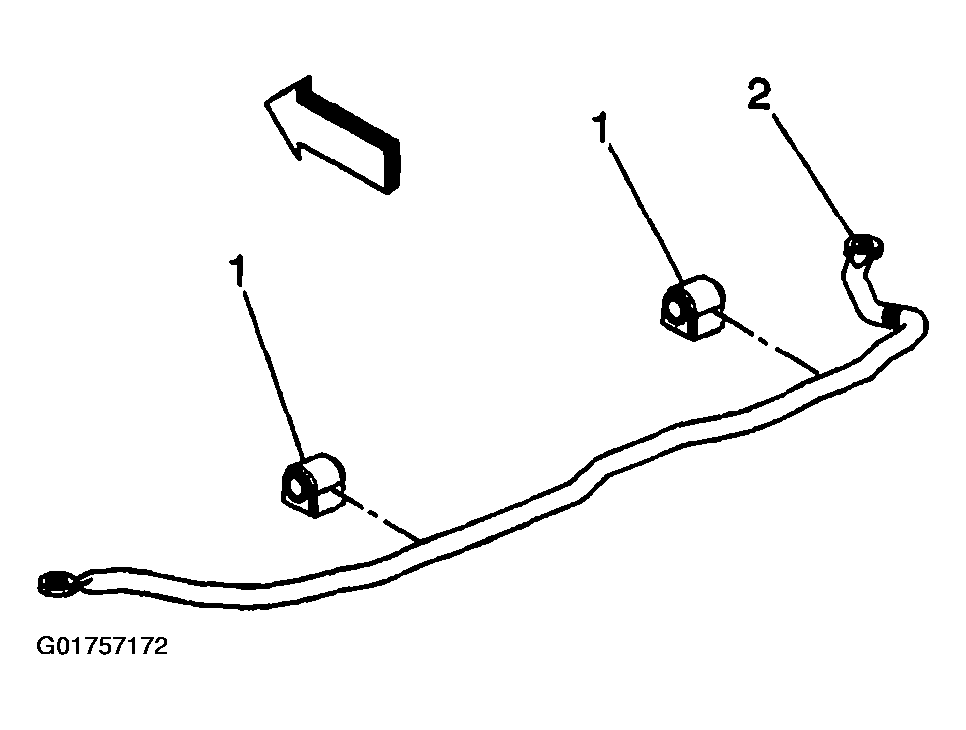

    Fig 2: Left/Right Side Stabilizer Shaft Insulators Removed From Stabilizer Shaft
    G01757172Courtesy of GENERAL MOTORS CORP.
