Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).

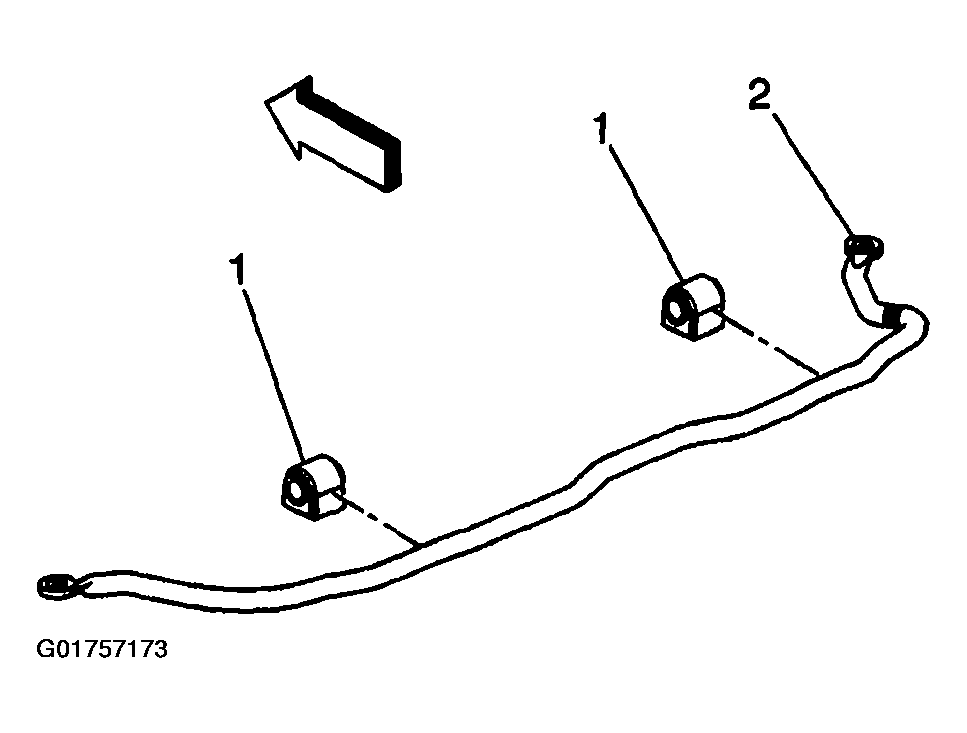

    Fig 1: Installing Left/Right Side Stabilizer Shaft Insulators To Stabilizer Shaft
    G01757173Courtesy of GENERAL MOTORS CORP.
  2. Install the left and right side stabilizer shaft insulator brackets.
    NOTE: FASTENER NOTICE
  3. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

  4. Lower the vehicle.

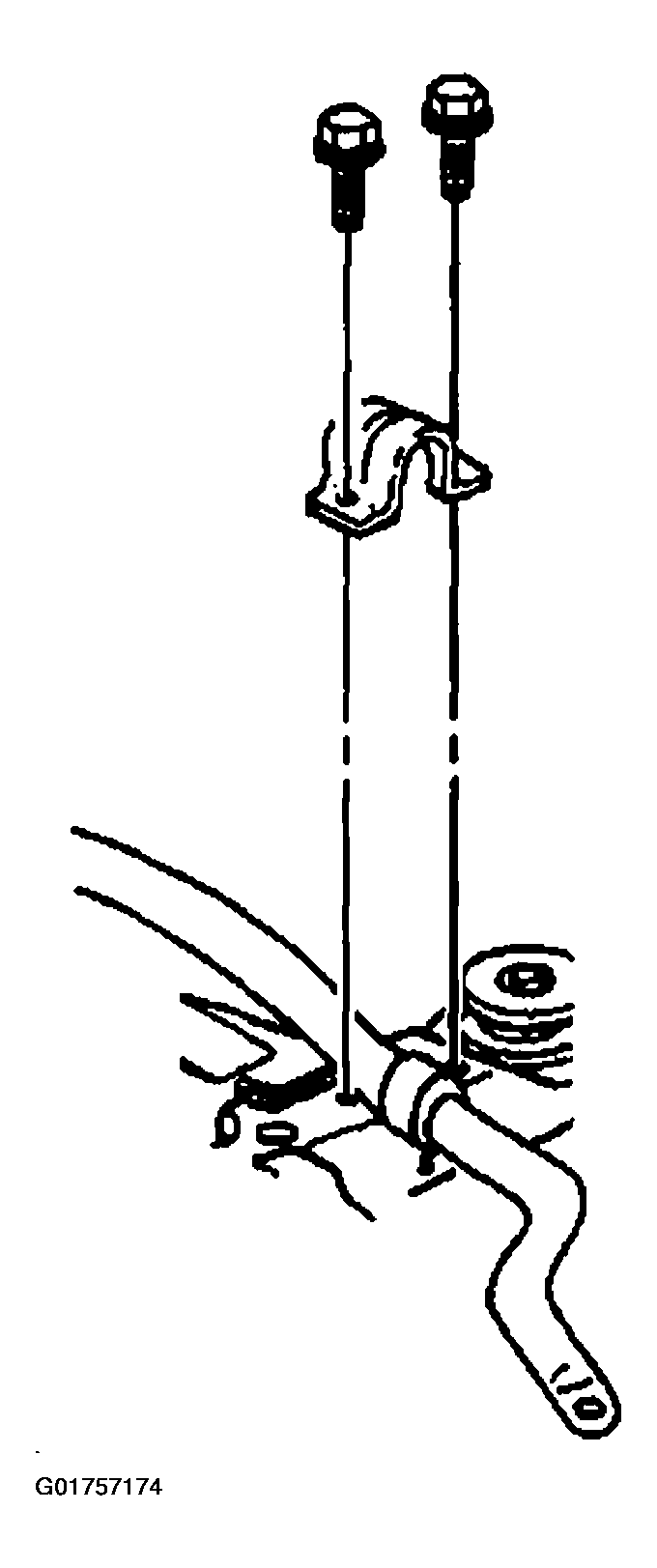

    Fig 2: Installing Left/Right Side Stabilizer Shaft Insulator Bracket And Bolts
    G01757174Courtesy of GENERAL MOTORS CORP.
