Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lower control arm. Refer to Lower Control Arm Replacement
Secure the lower control arm in a vice.

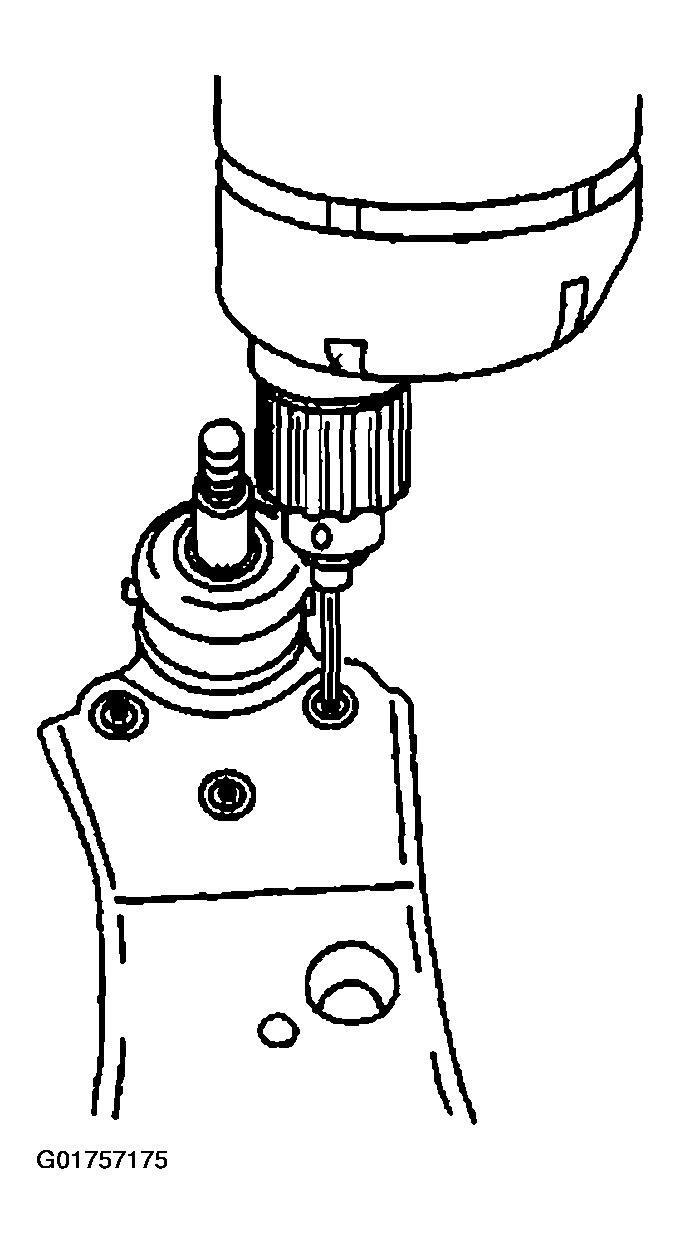

Drill or grind off the ball stud rivet heads.

Fig 1: Removing Ball Stud Rivet Heads
Courtesy of GENERAL MOTORS CORP.

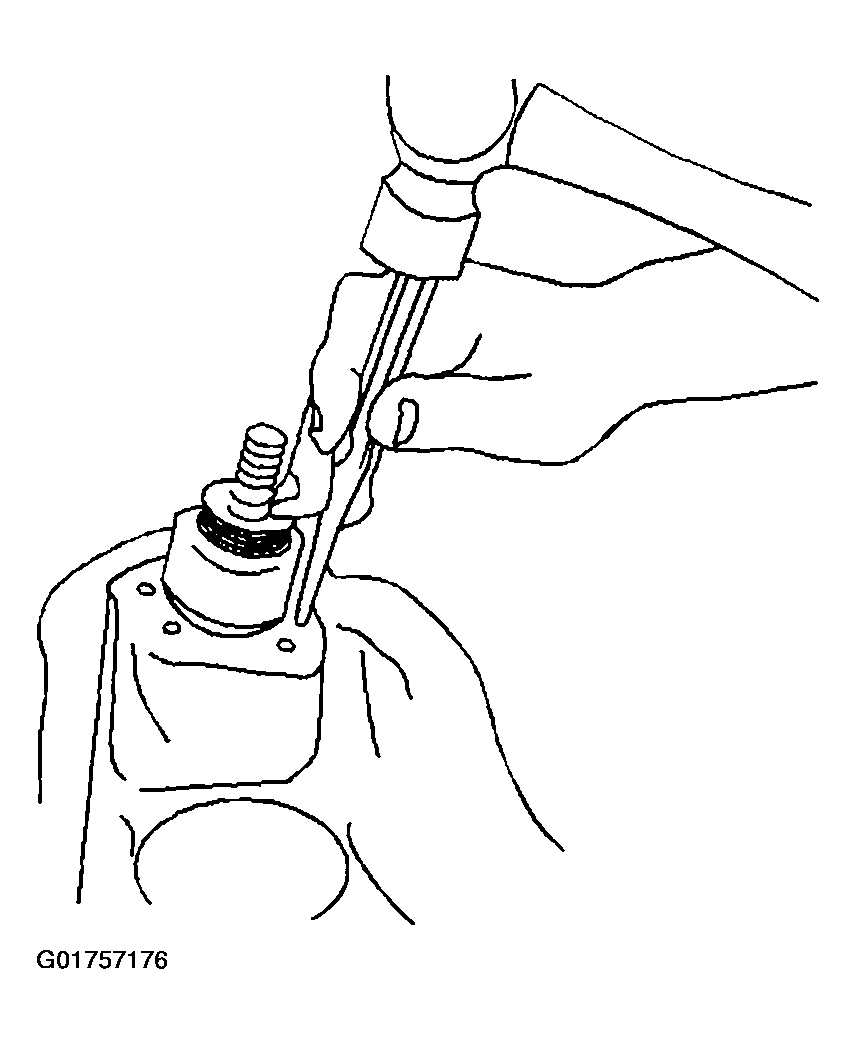

Use a hammer and a drift punch in order to remove the rivets.

Fig 2: Removing Rivets
Courtesy of GENERAL MOTORS CORP.

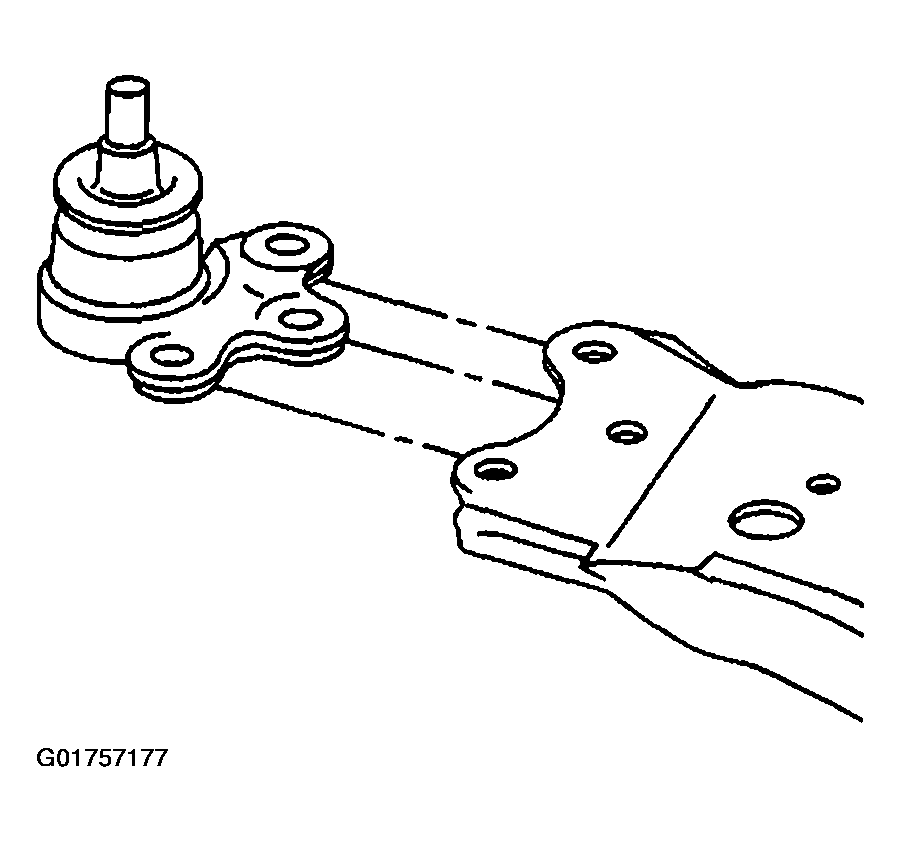

Remove the ball stud from the lower control arm.

Fig 3: Ball Stud Removed From Lower Control Arm
Courtesy of GENERAL MOTORS CORP.
