Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to step numbers on the diagnostic table.

  1. 2. Checks if the IPC has the ability to turn the LOW TRAC indicator on.

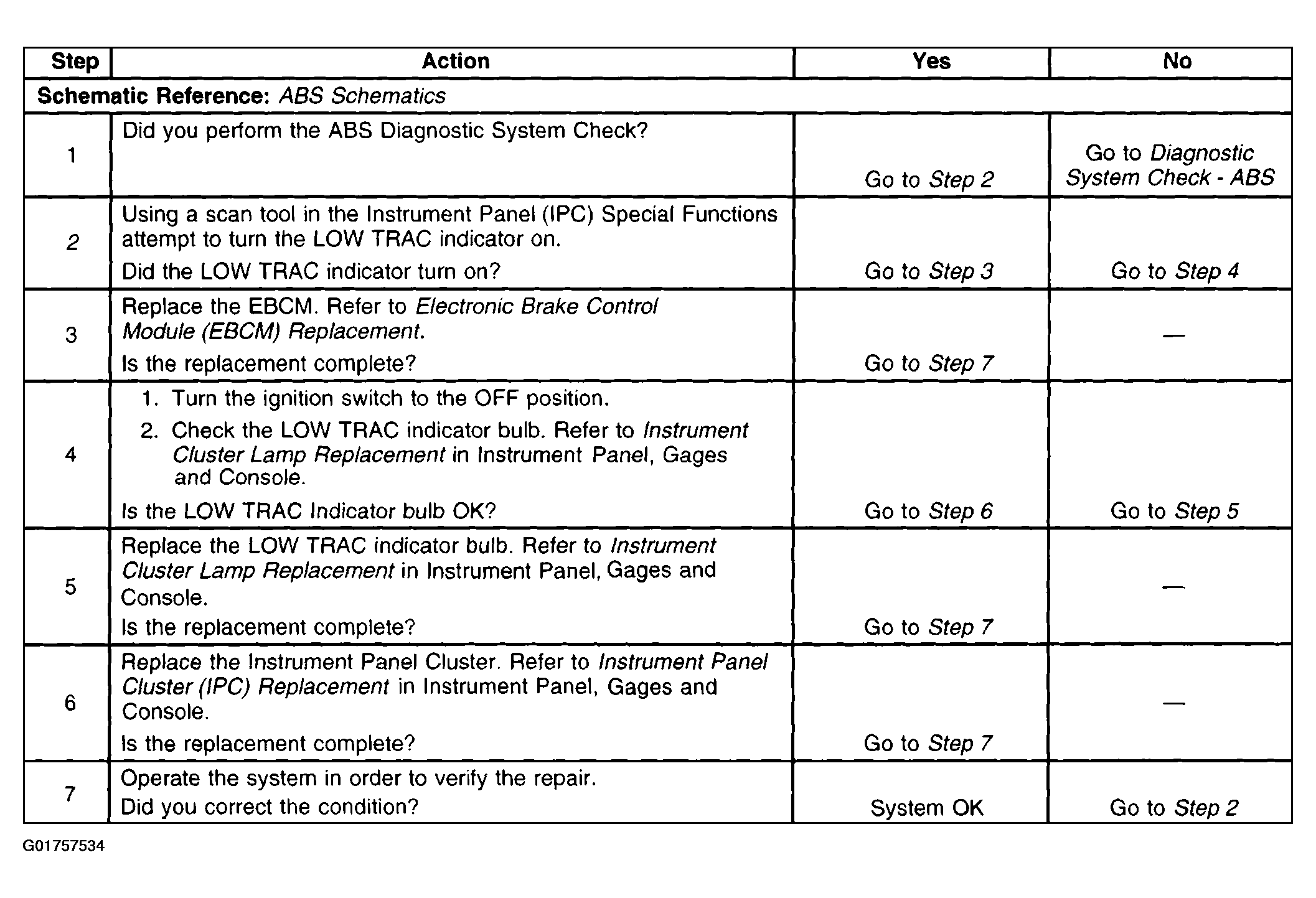

    Fig 1: Low Traction Indicator Inoperative
    G01757534Courtesy of GENERAL MOTORS CORP.
