Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to step numbers on the diagnostic table.

  1. 2. Checks if the instrument panel cluster has the ability to turn the LOW TRAC indicator off or if the EBTCM is sending an incorrect command to turn the LOW TRAC indicator on.

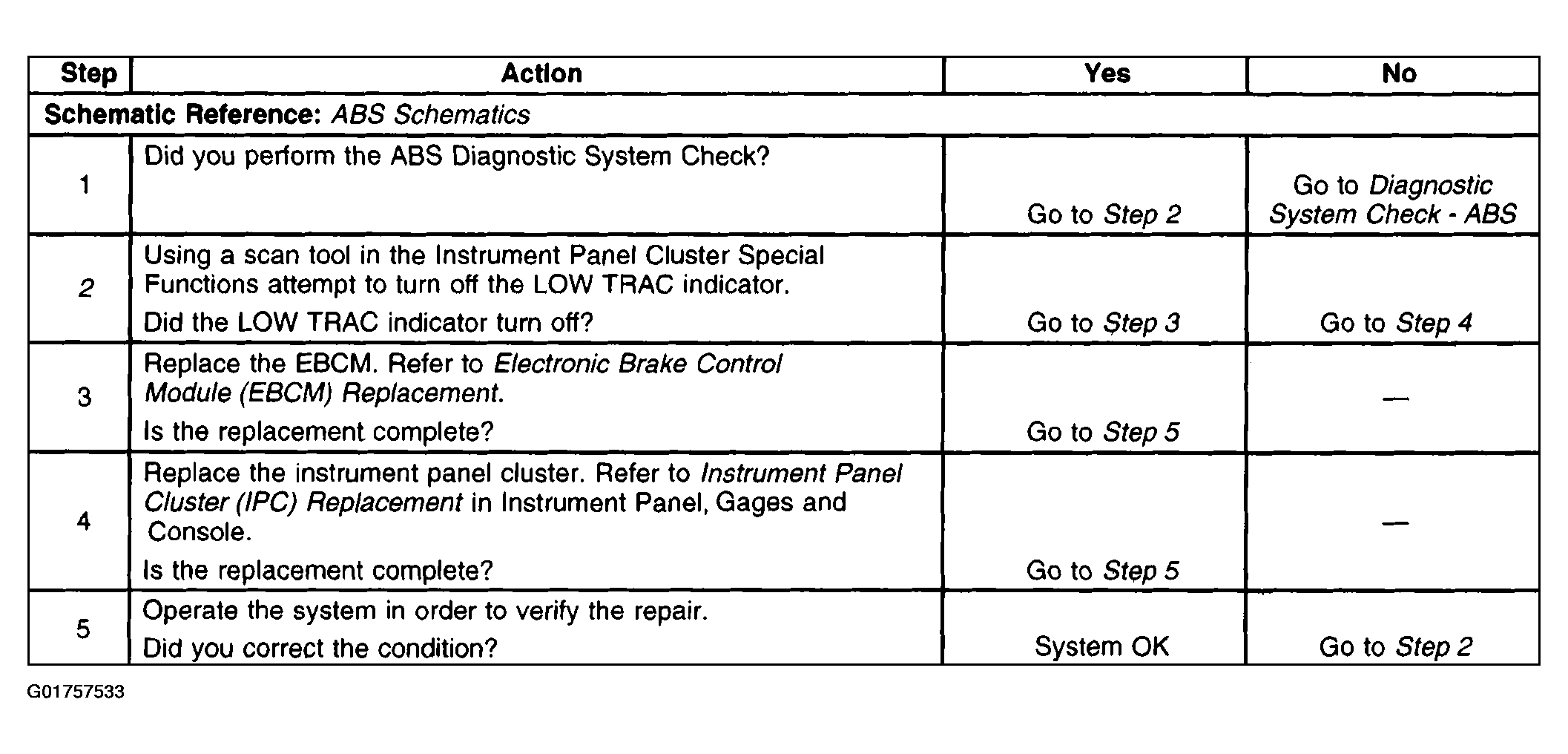

    Fig 1: Low Traction Indicator Always On
    G01757533Courtesy of GENERAL MOTORS CORP.
