Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Checks to see if any other DTC is set.
  2. 3. Checks to see if steering angle sensor is centered.

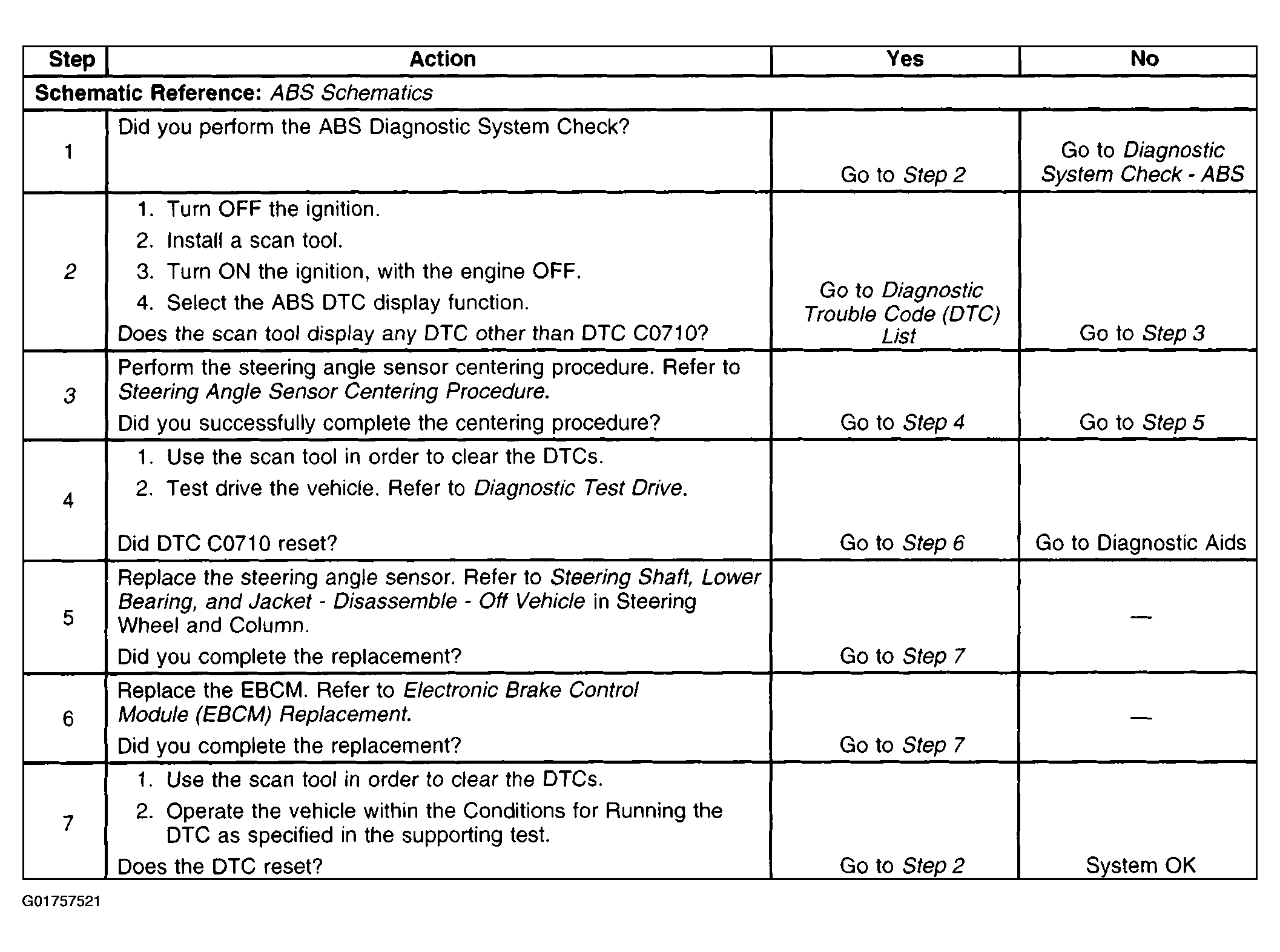

    Fig 1: DTC C0710
    G01757521Courtesy of GENERAL MOTORS CORP.
