Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This checks to see if DTC C0252 is set.
  2. 3. This step checks to see if the DTC C0252 resets.
  3. 4. This step checks to see if VSES data list parameters are correct.
  4. 5. This step checks the components harness connectors for poor connections.

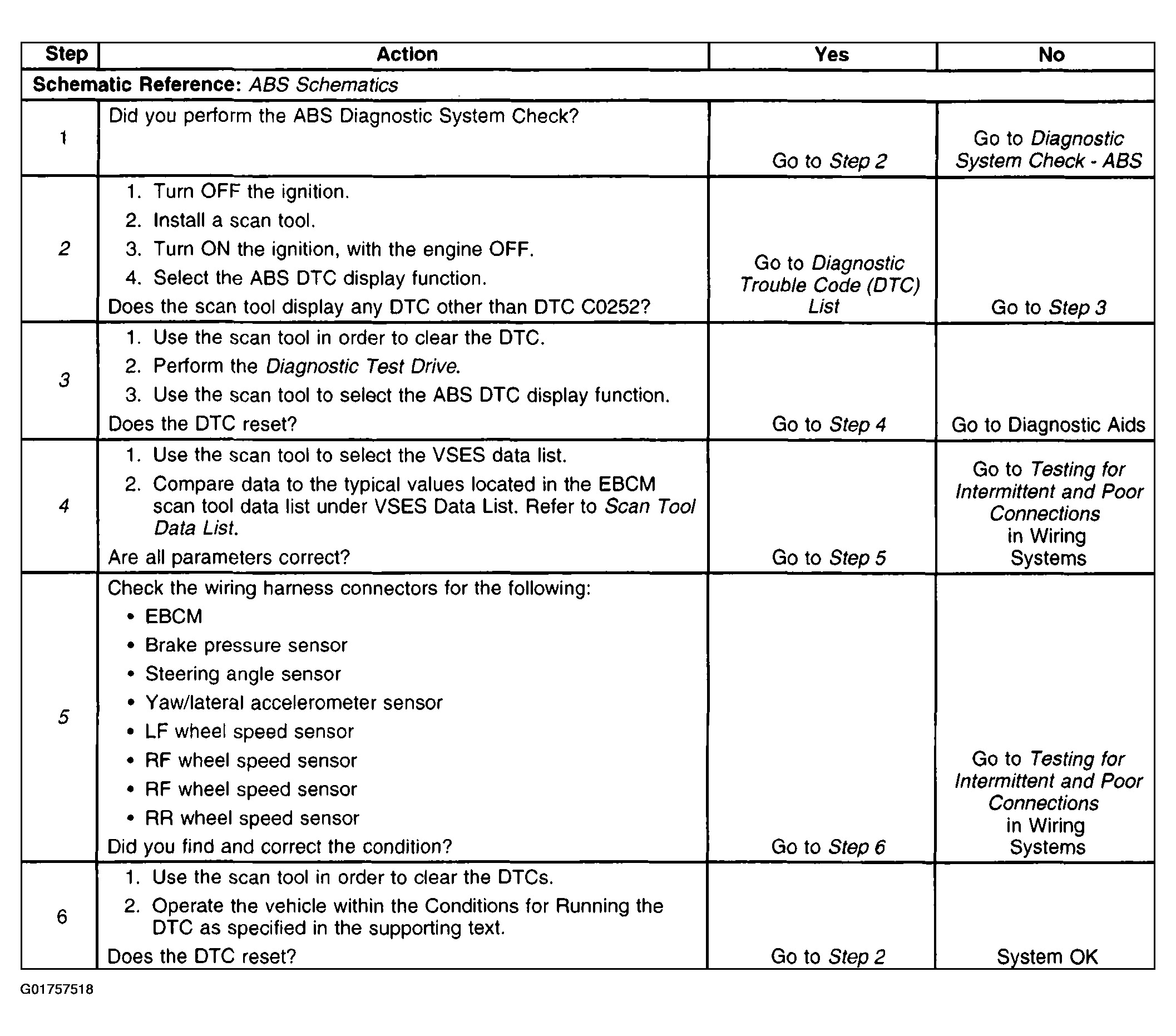

    Fig 1: DTC C0252
    G01757518Courtesy of GENERAL MOTORS CORP.
