Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. If the instrument panel tachometer is working properly, the cause of the malfunction is most likely between the PCM and the EBCM, or the EBCM itself.
  2. 9. At this point, the PCM is likely causing the malfunction. Refer to the OBD system check.

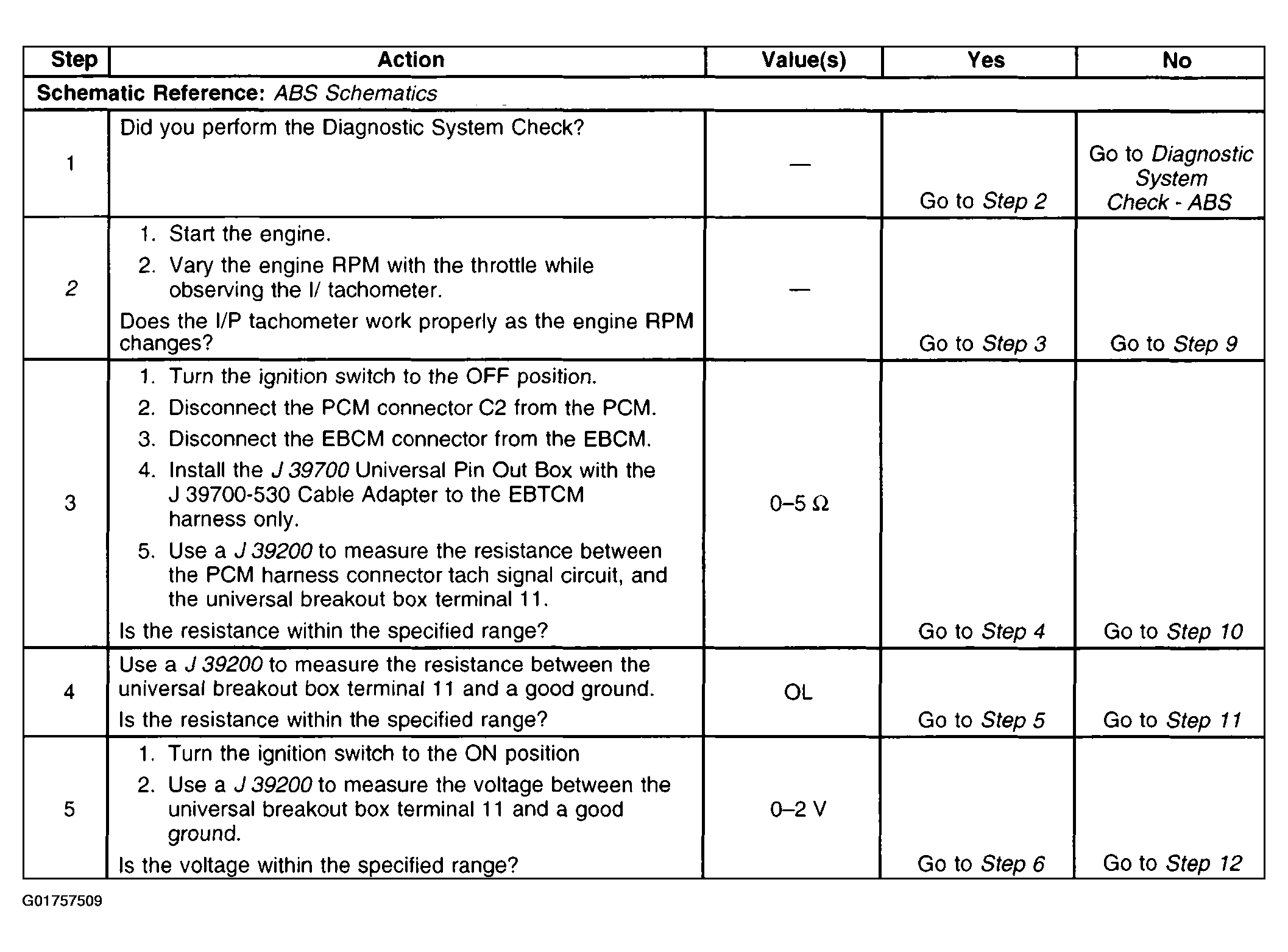

    Fig 1: DTC C0235-C0237 Or P1504 (1 Of 2)
    G01757509Courtesy of GENERAL MOTORS CORP.

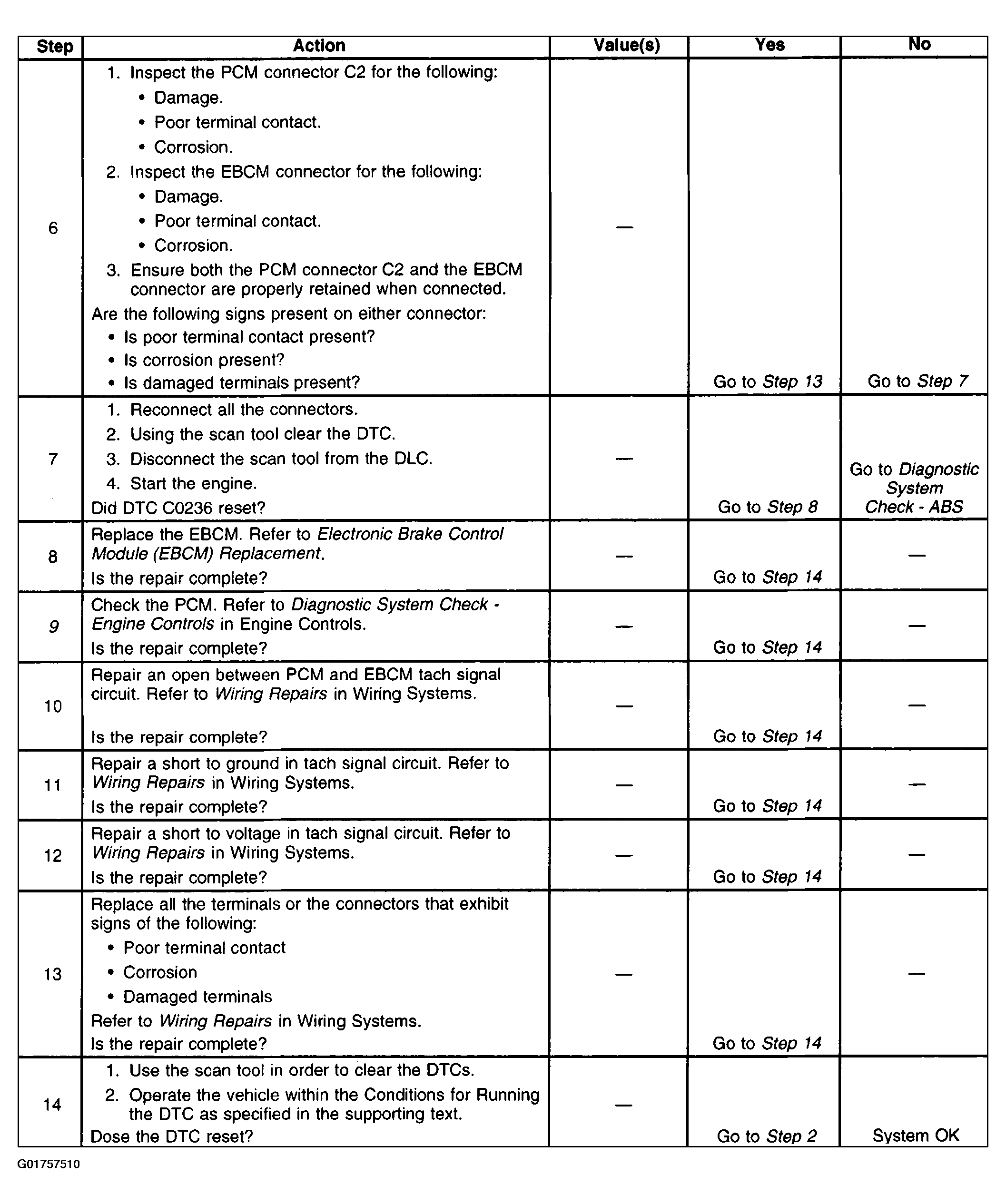

    Fig 2: DTC C0235-C0237 Or P1504 (2 Of 2)
    G01757510Courtesy of GENERAL MOTORS CORP.
