Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to step numbers on the Diagnostic Table.

  1. 2. This step determines if the DTC is current.

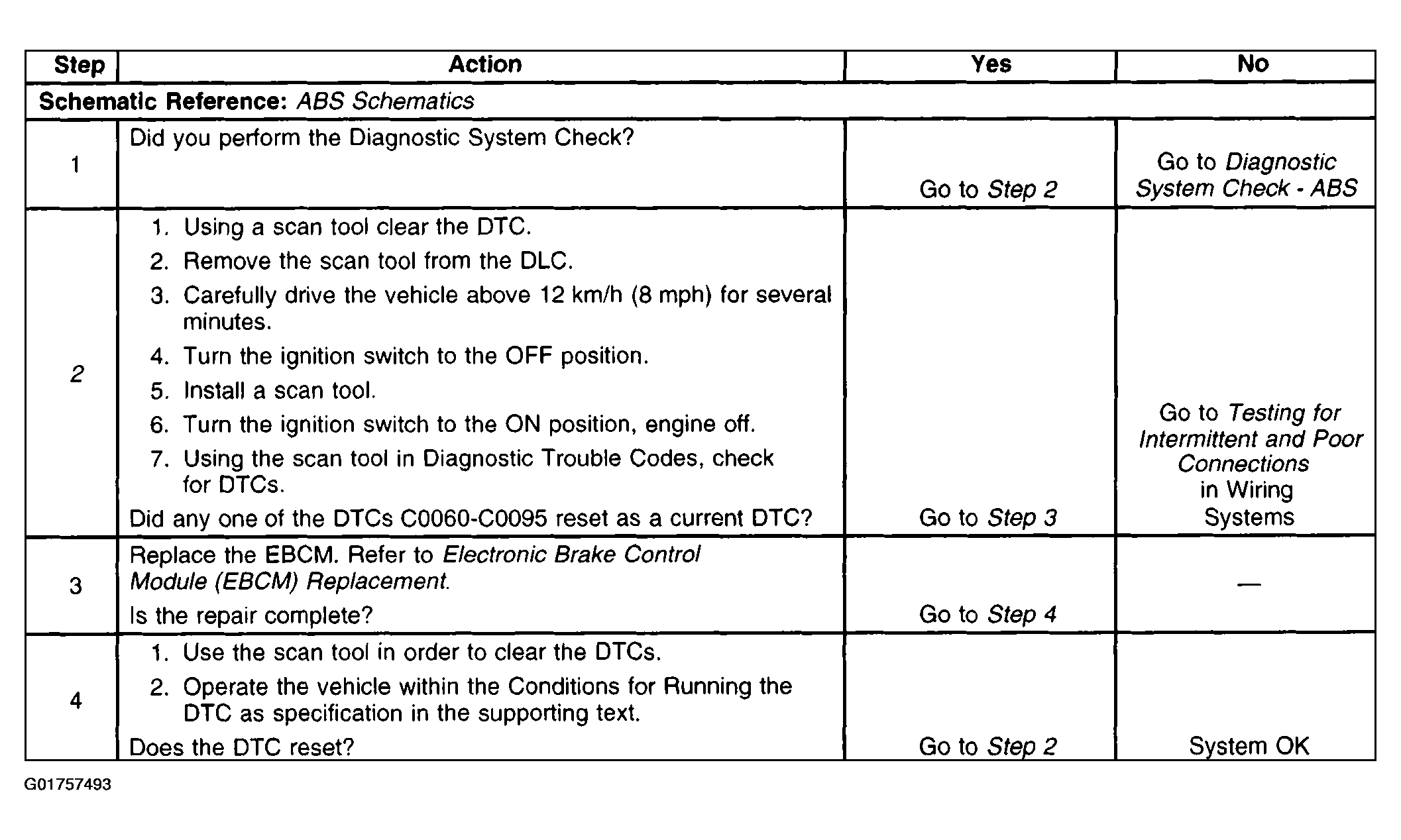

    Fig 1: DTC C0060-C0095
    G01757493Courtesy of GENERAL MOTORS CORP.
