Air Temperature Actuator: Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

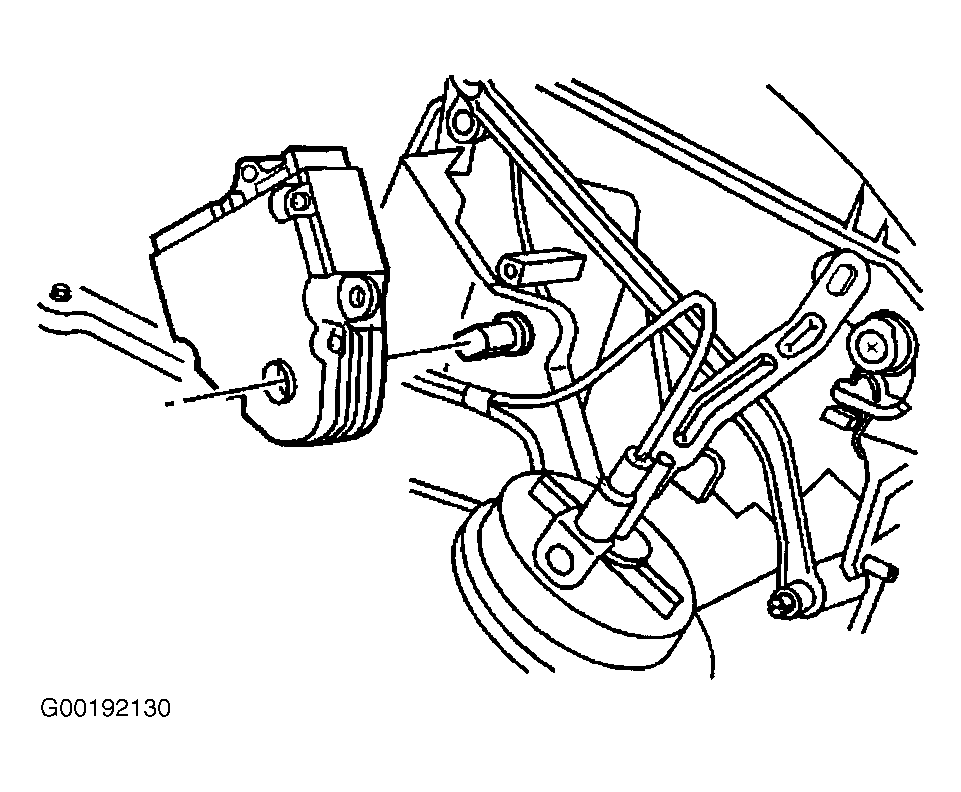

Position the air temperature actuator, then align the slots in the electric actuator driver to the flats on the shaft. Align the locating hole to the alignment pin on the HVAC module case. Slide the actuator driver on to the shaft. The actuator driver should seat completely on to the shaft and the mounting holes should be flush with the mounting bolts on the HVAC case. Install the mounting screws to the air temperature actuator. Connect the electrical connector to the air temperature actuator. Install the hood release lever and the DLC connector bolt. Install the knee bolster bracket. Install the left I/P insulator. Install the I/P steering column opening filler. Re-calibrate the actuator. See RE-CALIBRATING ACTUATORS under ADJUSTMENTS.
