Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: This vehicle is equipped with a Supplemental Inflatable Restraint (SIR) System. Failure to follow the correct procedure could cause the following conditions:
  • Air bag deployment
  • Personal injury
  • Unnecessary SIR system repairs

In order to avoid the above conditions, observe the following guidelines:
  • Refer to SIR Component Views in order to determine if you are performing service on or near the SIR components or the SIR wiring.
  • If you are performing service on or near the SIR components or the SIR wiring, disable the SIR system. Refer to Disabling the SIR System in SIR.

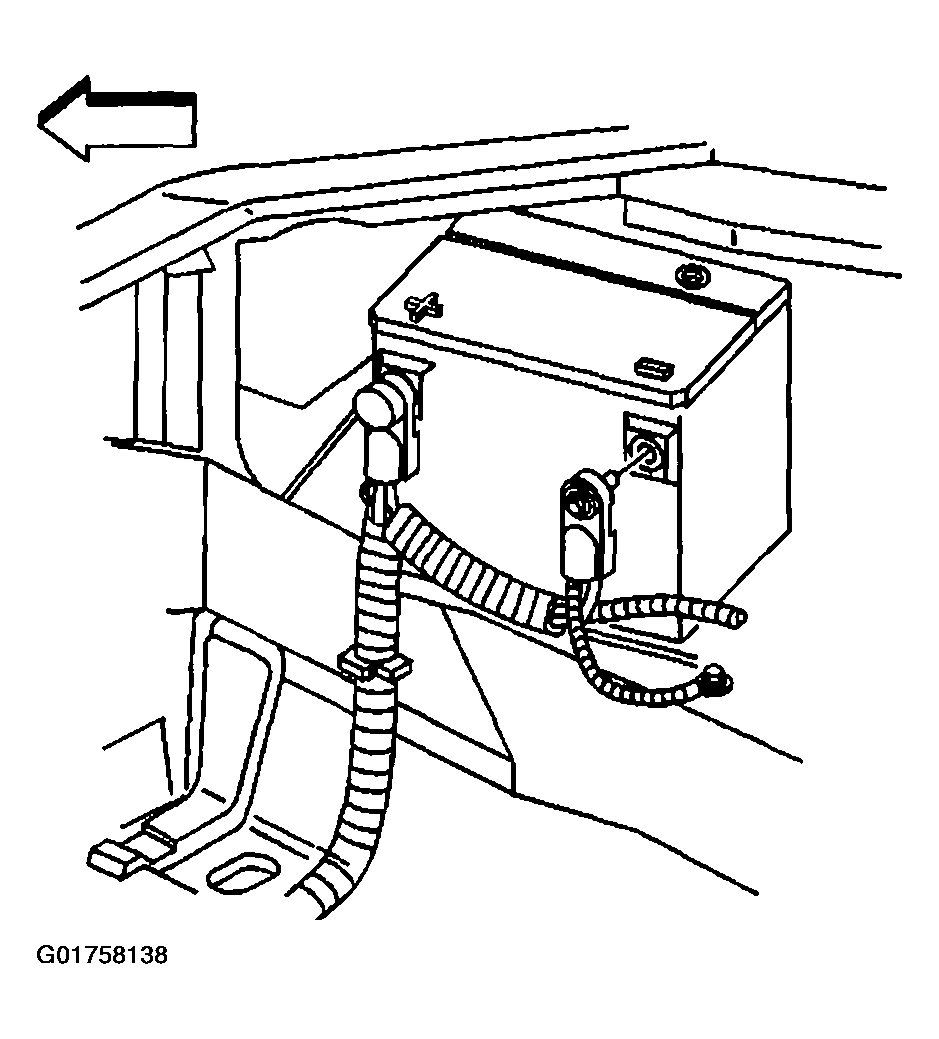

Fig 1: Disconnecting Negative Battery Cable
G01758138Courtesy of GENERAL MOTORS CORP.
CAUTION: Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.
  1. Record all of the vehicle preset radio stations.
  2. Record the customer's Theftlock® code if applicable. Refer to RADIO/AUDIO SYSTEM DESCRIPTION AND OPERATION in Entertainment.
  3. Turn OFF all the lamps and the accessories.
  4. Make sure the ignition switch is in the OFF position.
  5. Disconnect the battery negative cable from the battery.
