Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle
  2. Depress the tabs located on the top and bottom of the windshield wiper and washer switch assembly.

    Remove the windshield wiper and washer switch assembly.

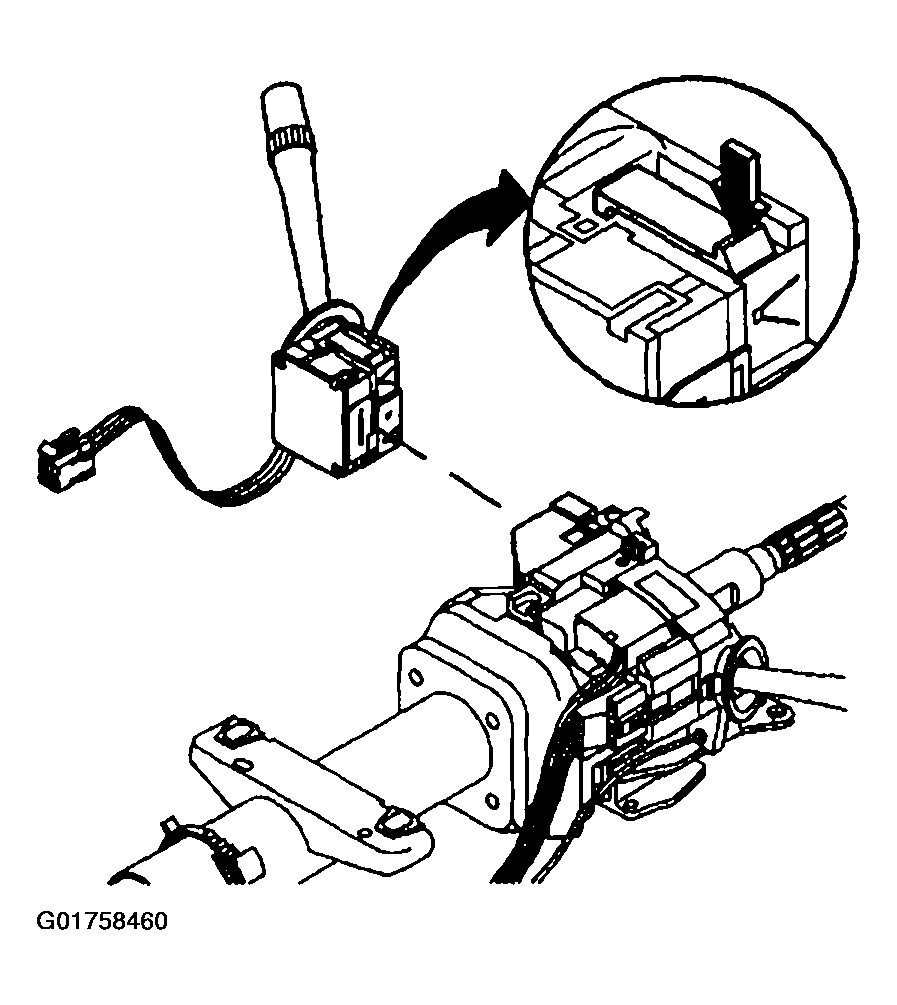

    Fig 1: Removing Windshield Wiper And Washer Switch Assembly
    G01758460Courtesy of GENERAL MOTORS CORP.
  3. Remove the 3 screws (1) from the signal switch housing assembly (2).

    Remove the signal switch housing assembly (2).

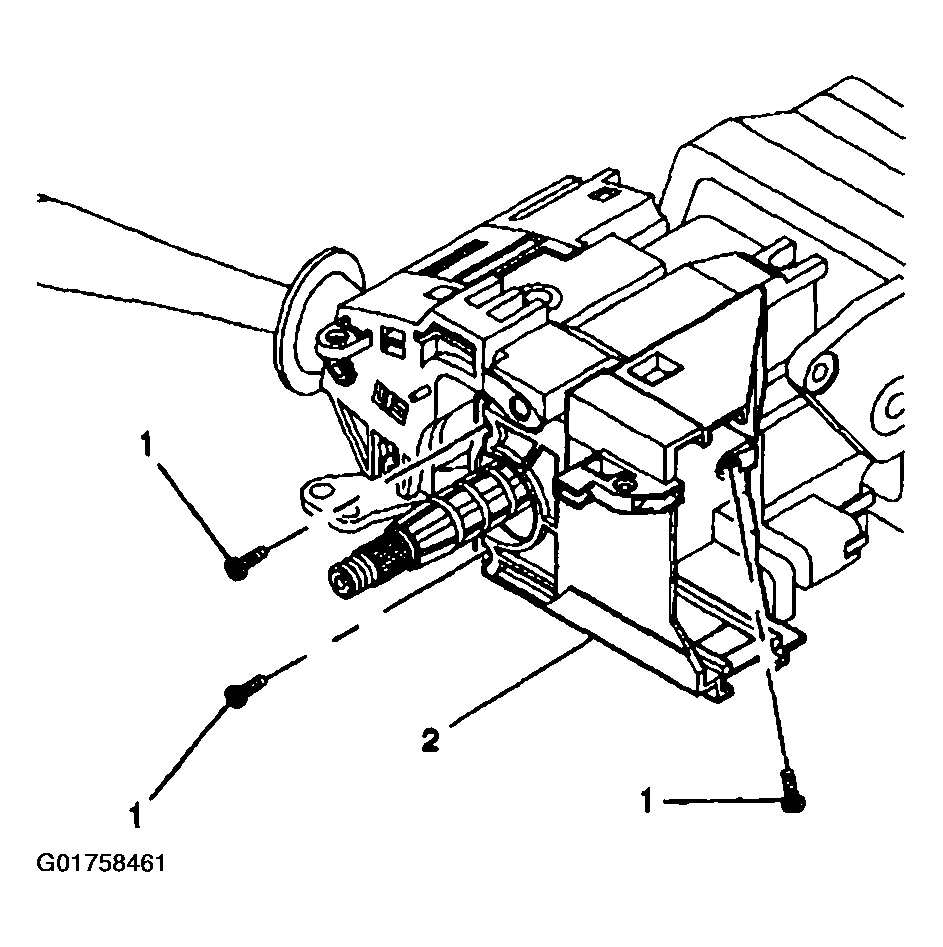

    Fig 2: Screws Removed From Signal Switch Housing Assembly
    G01758461Courtesy of GENERAL MOTORS CORP.
