Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE
  1. Install the signal switch housing assembly (2) and secure by using (3) screws (1).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  2. Install the windshield wiper and washer switch assembly to the signal switch housing assembly.
  3. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle

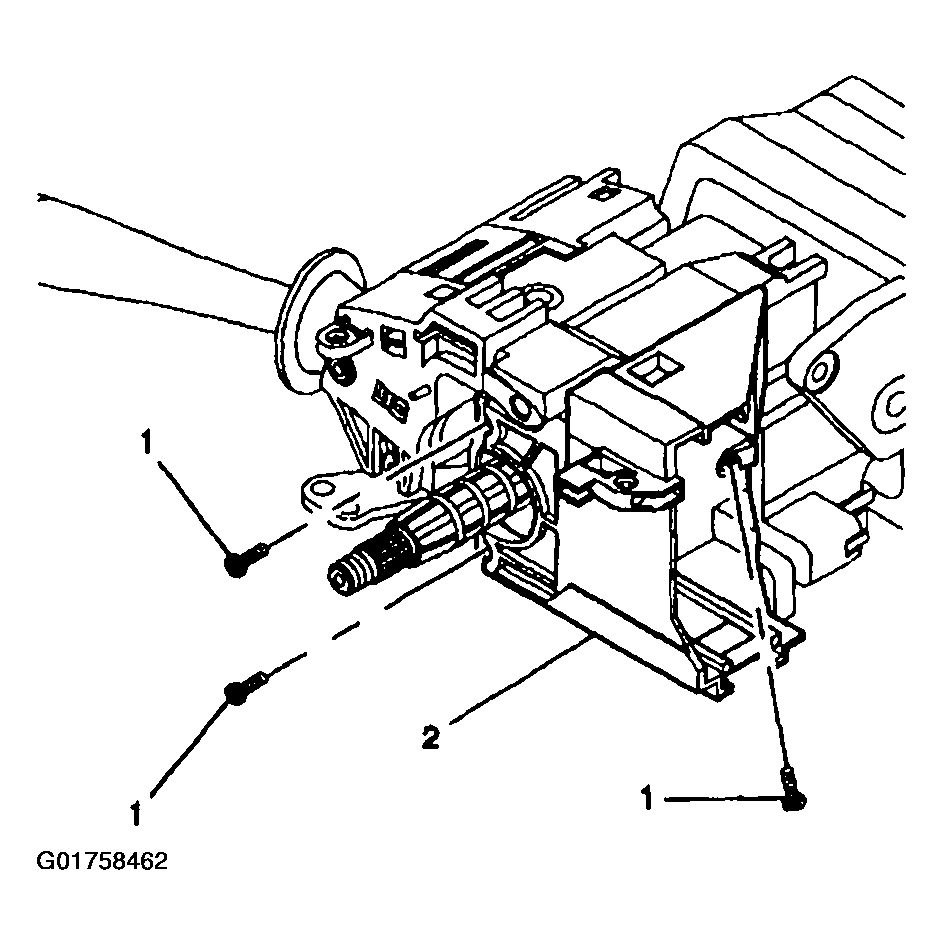

    Fig 1: Installing Signal Switch Housing Assembly And Screws
    G01758462Courtesy of GENERAL MOTORS CORP.
