Windshield Wiper and Washer Switch Assembly - Disassemble - Off Vehicle
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to SIR CAUTION
- Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM in SIR.
- Remove the steering column tilt head housing. Refer to Steering Column Tilt Head Housing -Disassemble - Off Vehicle
- Depress the tabs located on the top and bottom of the windshield wiper and washer switch assembly.
Remove the windshield wiper and washer switch assembly.

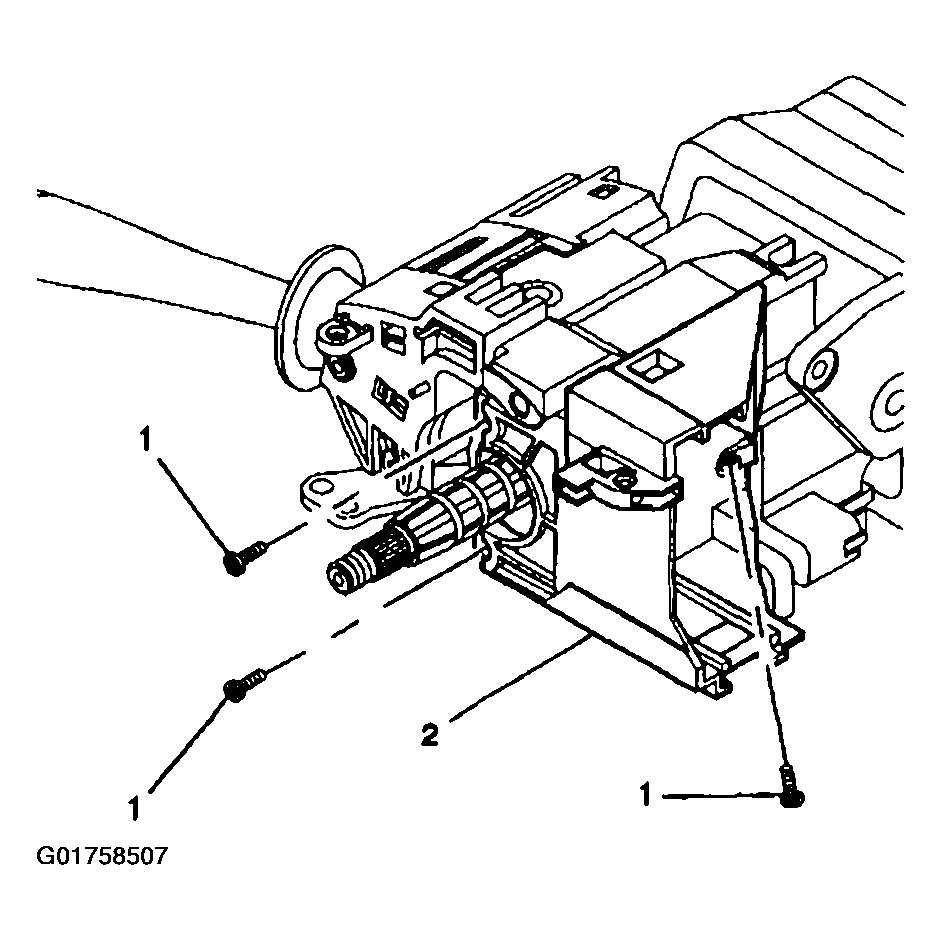

- Remove the 3 pan head tapping screws (1) from the signal switch housing assembly (2).
Remove the signal switch housing assembly (2).
