Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rock the tilt lever back and forth from the steering column while pulling the tilt lever from the steering column.
  2. Pull the tilt lever from the steering column.

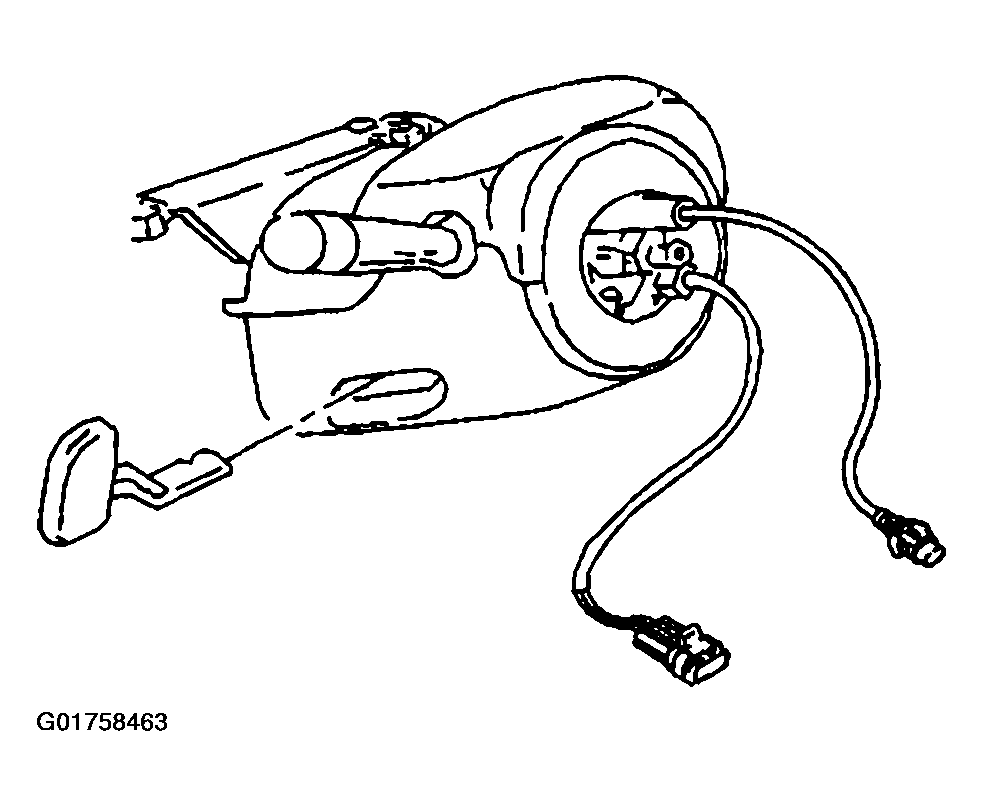

    Fig 1: Tilt Lever Removed From Steering Column
    G01758463Courtesy of GENERAL MOTORS CORP.
