Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tilt lever to the steering column by snapping the tilt lever into place.
  2. Inspect the operation of the tilt steering column.

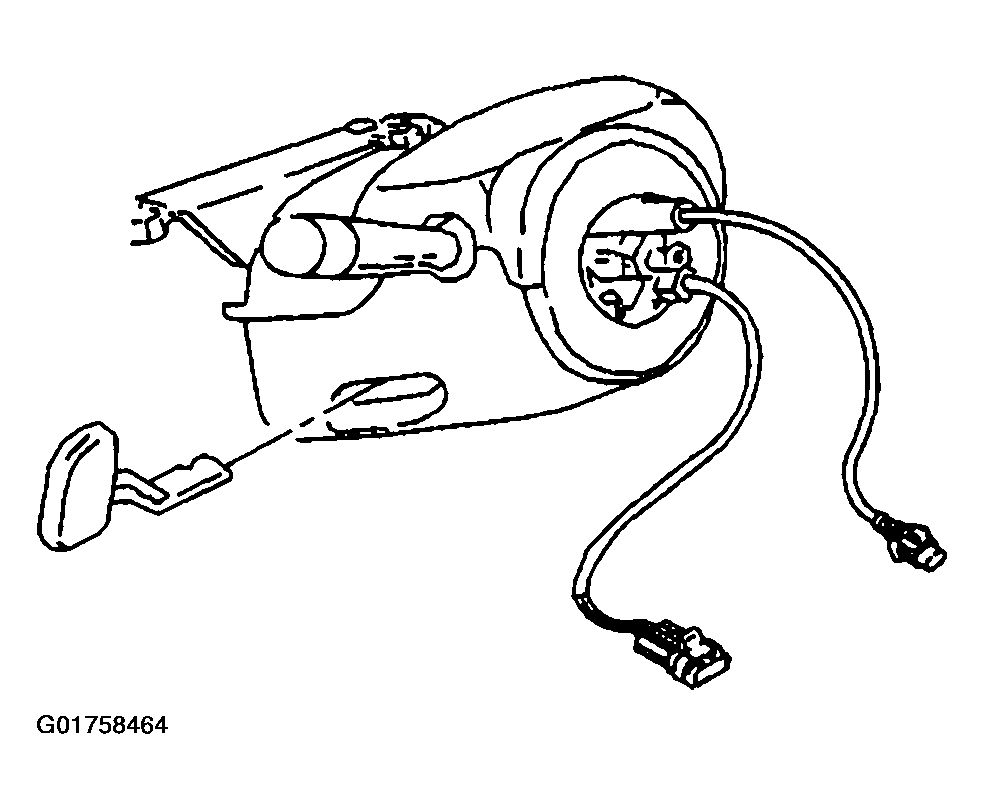

    Fig 1: Installing Tilt Lever To Steering Column
    G01758464Courtesy of GENERAL MOTORS CORP.
