Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the multifunction turn signal lever is in the center of the OFF position.
CAUTION: Refer to BATTERY DISCONNECT CAUTION
Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
Disable the SIR Refer to DISABLING SYSTEM in SIR.
Remove the inflatable restraint steering wheel module. Refer to AIR BAG MODULES in SIR.
Remove the steering wheel. Refer to Steering Wheel Replacement
Remove the upper and lower steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle
Remove the wire harness straps (1) from the wire harness assembly (2).
Remove the wire harness assembly (1) from the wire harness strap (2).

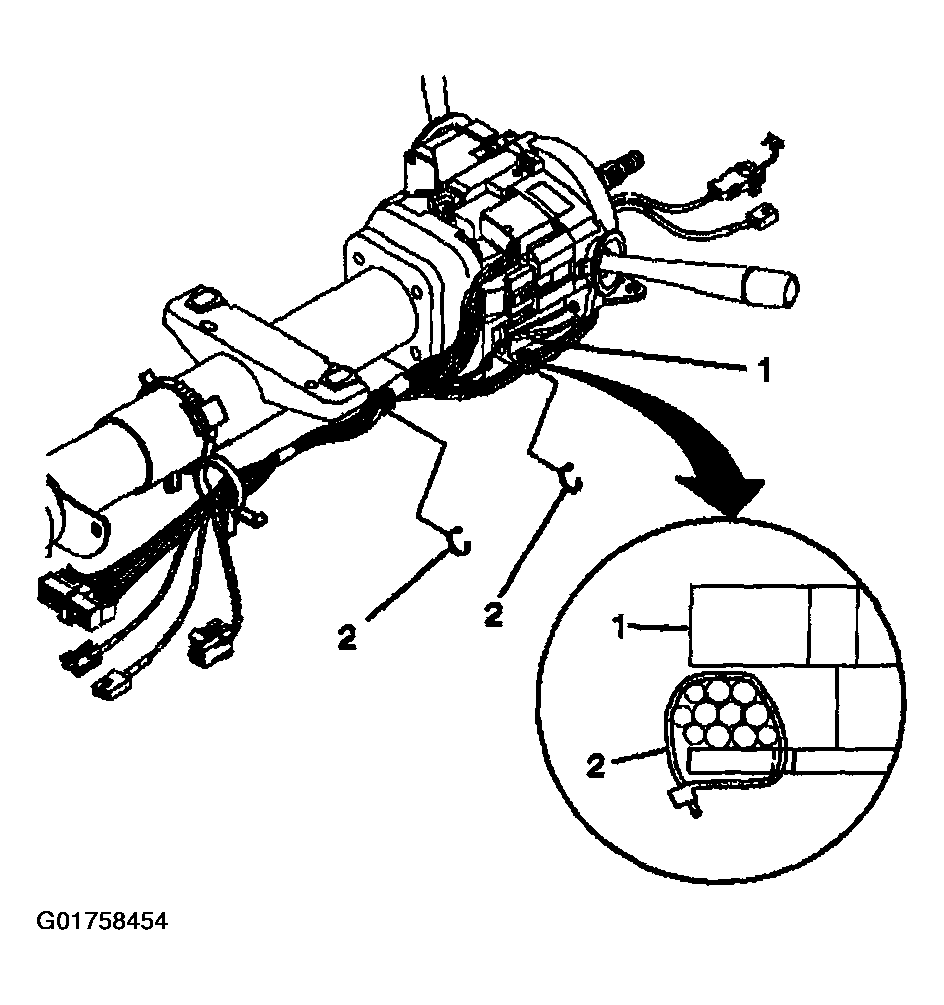

Fig 1: Removing Wire Harness Assembly From Wire Harness Strap
Courtesy of GENERAL MOTORS CORP.

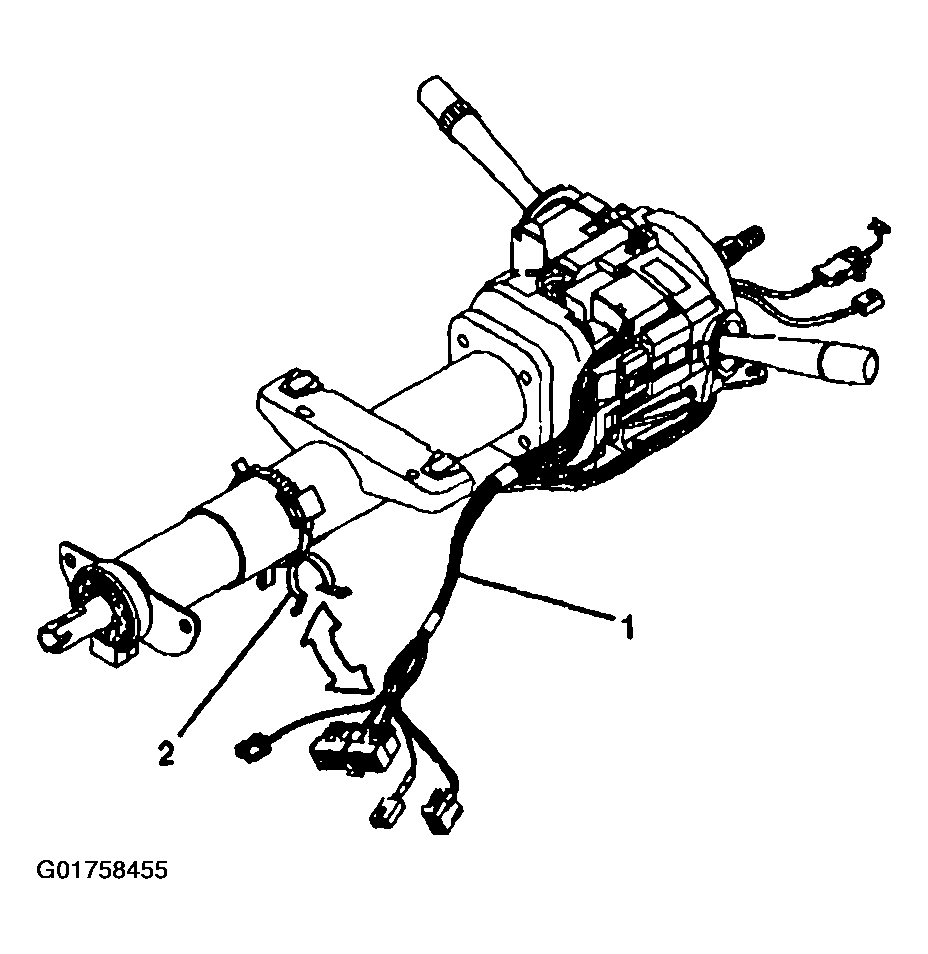

Fig 2: Removing Wire Harness Assembly From Wire Harness Strap
Courtesy of GENERAL MOTORS CORP.
Remove the 2 multifunction turn signal switch screws (1).

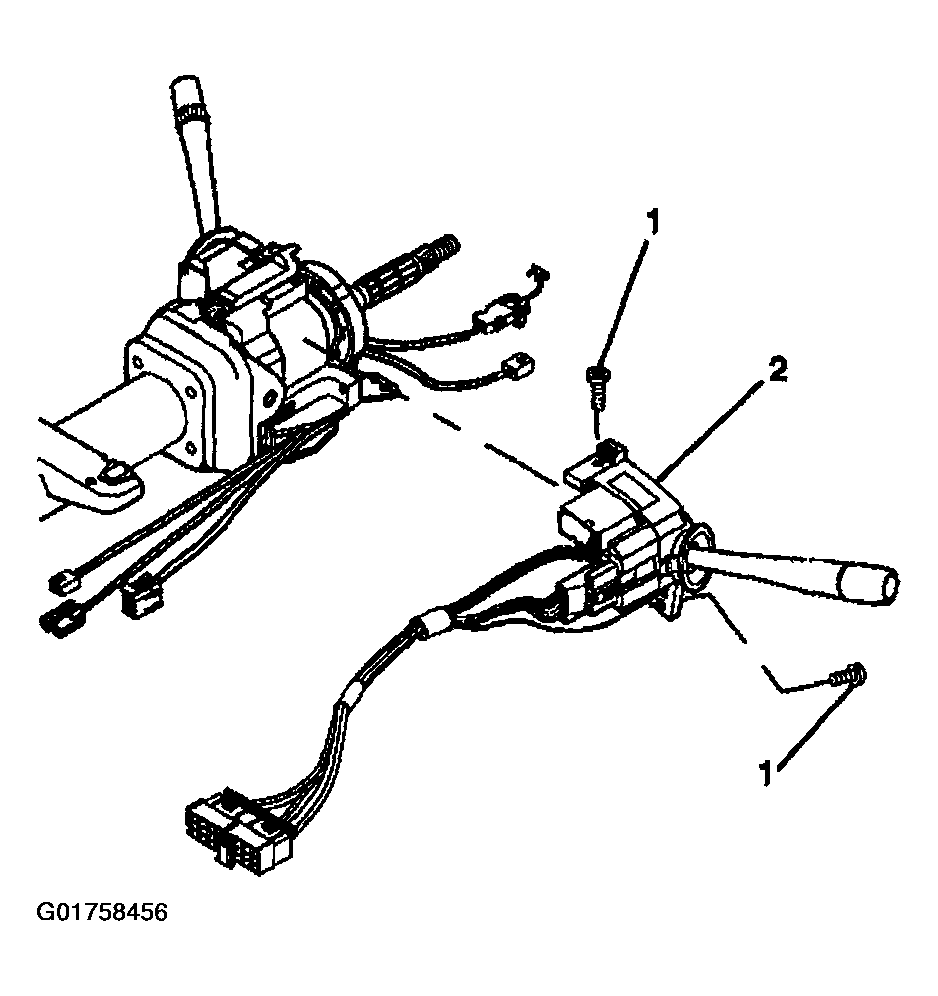

Fig 3: Turn Signal Switch Screws And Switch
Courtesy of GENERAL MOTORS CORP.

Remove the multifunction turn signal switch assembly (2).
