Tire Diagnosis - Irregular or Premature Wear: Notes

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

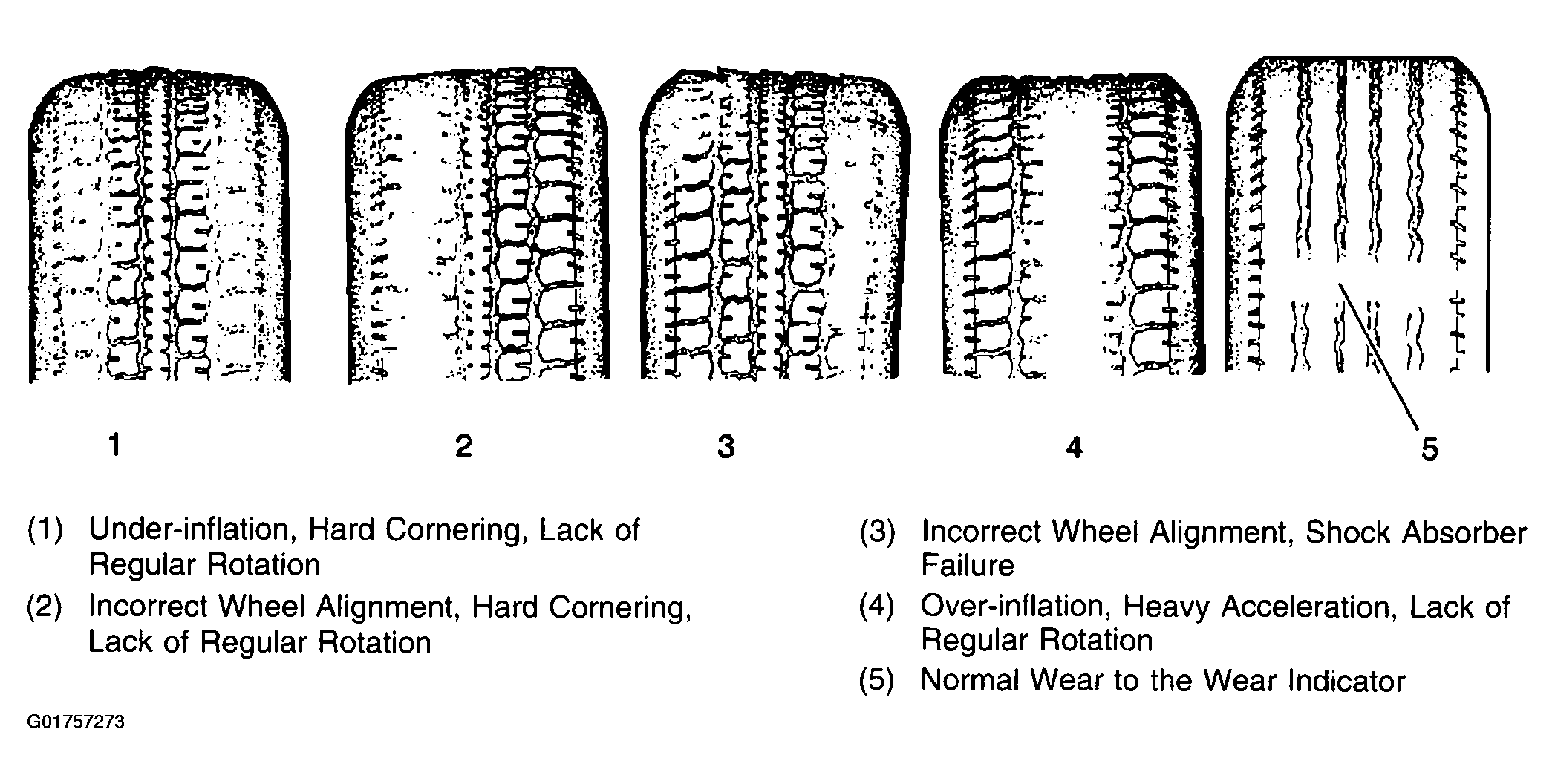

Fig 1: Tire Diagnosis - Irregular Or Premature Wear
G01757273Courtesy of GENERAL MOTORS CORP.
