Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body heater outlet hose to the throttle body.
  2. Install the throttle body heater outlet hose clamp to the throttle body.

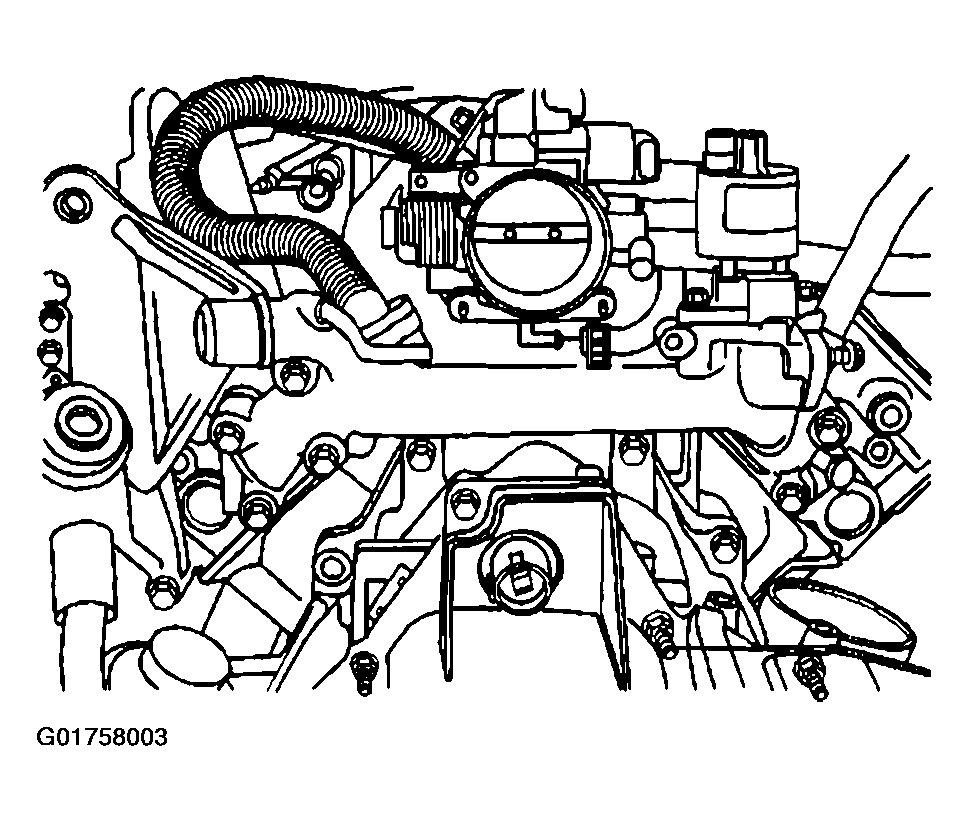

    Fig 1: Install Throttle Body Heater Outlet Hose To Throttle Body
    G01758003Courtesy of GENERAL MOTORS CORP.
  3. Install the throttle body heater outlet hose (1) to the surge tank inlet hose pipe (3).
  4. Install the throttle body heater outlet hose clamp (2) to the surge tank inlet hose pipe (3).
  5. Install the accelerator controls cable bracket.
  6. Install the air cleaner intake duct. Refer toAIR CLEANER INTAKE DUCT
  7. Fill the cooling system. Refer to Draining and Filling Cooling System .
  8. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT in Engine Mechanical - 3.5L.

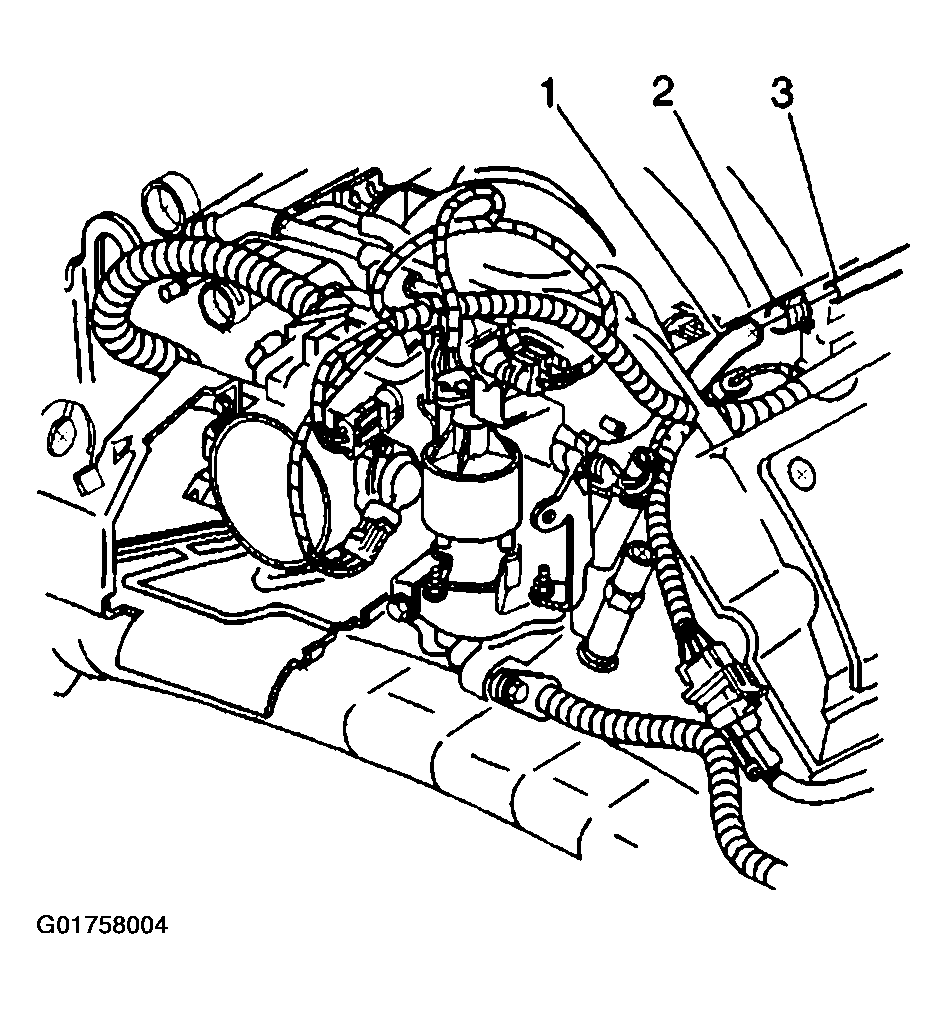

    Fig 2: Install Throttle Body Heater Outlet Hose To Surge Tank Inlet Hose Pipe
    G01758004Courtesy of GENERAL MOTORS CORP.
