Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Drain the cooling system. Refer to Draining and Filling Cooling System .
  3. Reposition the inlet surge tank hose clamp from the surge tank use J 38185  .
  4. Remove the inlet surge tank hose from the surge tank.

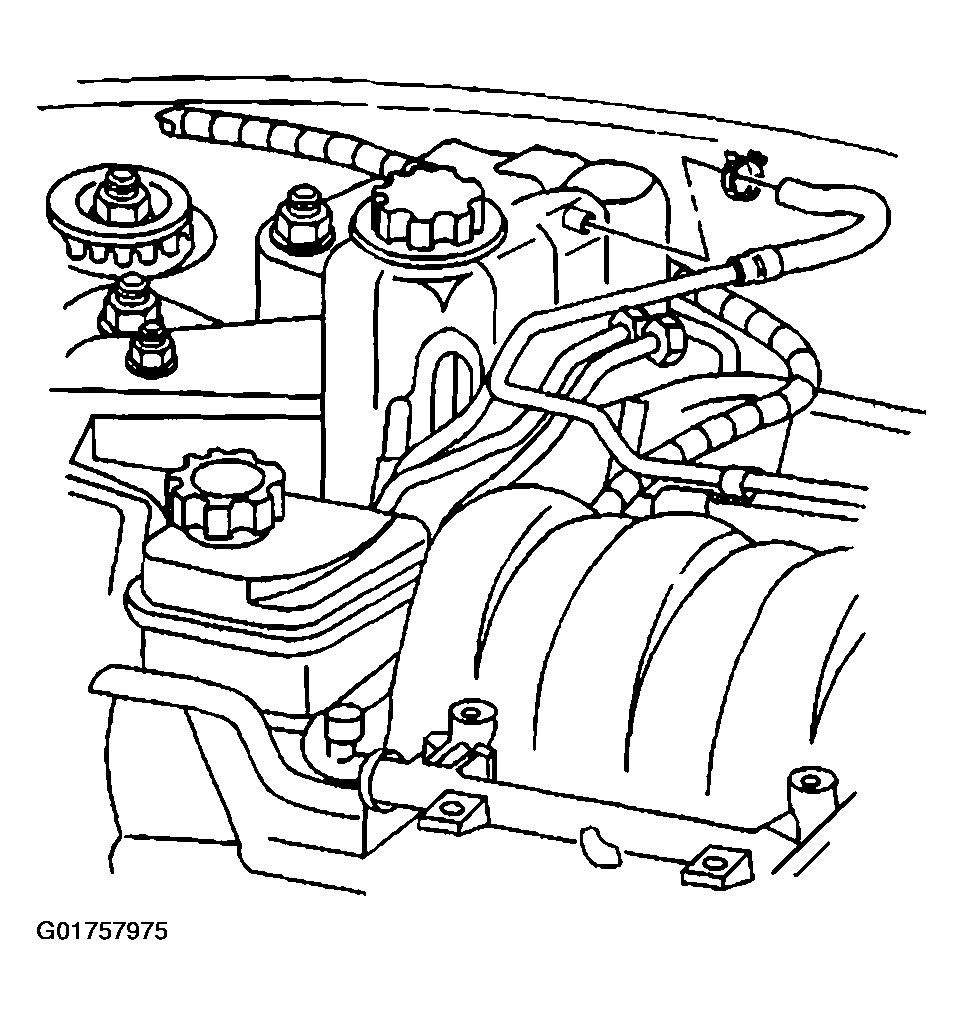

    Fig 1: Removing Inlet Surge Tank Hose From Surge Tank
    G01757975Courtesy of GENERAL MOTORS CORP.
  5. Reposition the outlet surge tank hose clamp from the surge tank use J 38185  .
  6. Remove the outlet surge tank hose from the surge tank.

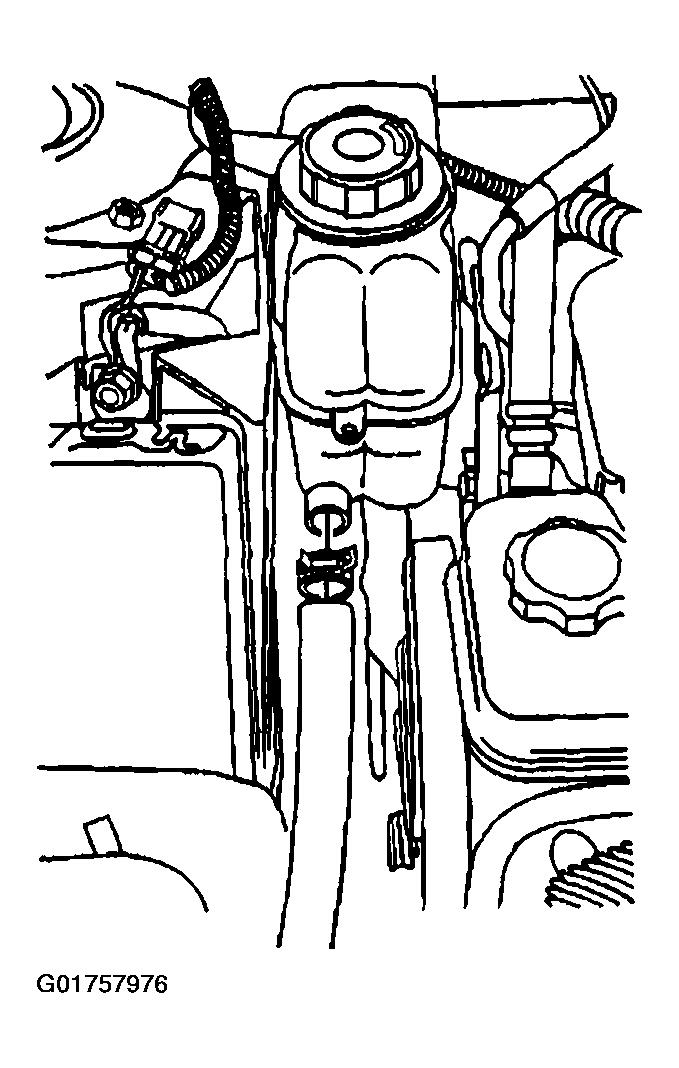

    Fig 2: Removing Outlet Surge Tank Hose From Surge Tank
    G01757976Courtesy of GENERAL MOTORS CORP.
  7. Remove the surge tank nuts.
  8. Raise the surge tank.
  9. Disconnect the wiring harness connector from the coolant level sensor.
  10. Remove the surge tank.

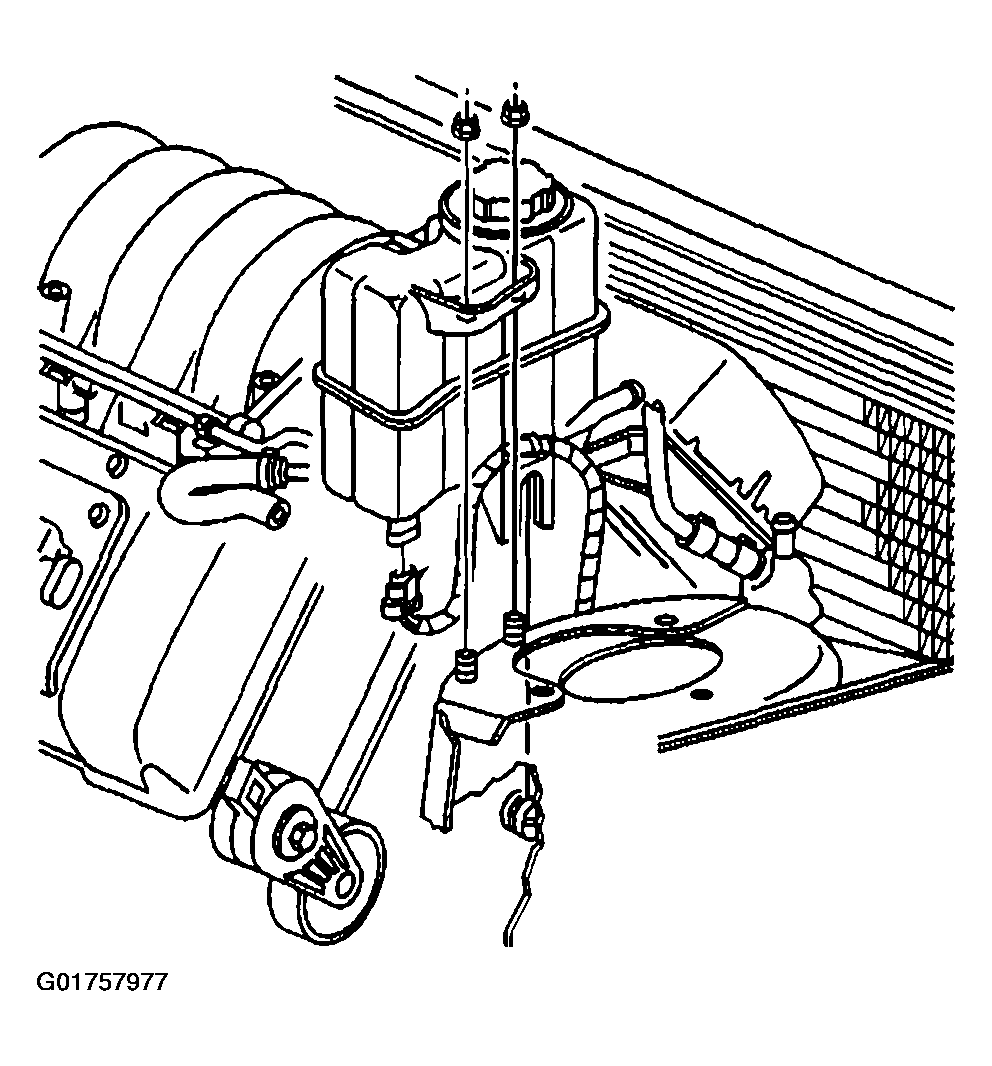

    Fig 3: Disconnect Wiring Harness Connector From Coolant Level Sensor
    G01757977Courtesy of GENERAL MOTORS CORP.
  11. Inspect the surge tank retainer mounted to the shock tower stud, replace if necessary.
  12. If replacing the surge tank, remove the coolant level sensor.
    Fig 4: Inspect Surge Tank Retainer Mounted To Shock Tower Stud
    G01757978Courtesy of GENERAL MOTORS CORP.
