Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When adding coolant, use DEX-COOL® coolant. If silicated coolant is added to the system, premature engine, heater core or radiator corrosion may result. In addition, the engine coolant will require change sooner-at 50,000 km (30,000 ml) or 24 months.

Partially drain the cooling system. Refer to Draining and Filling Cooling System .
Reposition the surge tank outlet hose clamp from the surge tank use J 38185 .
Remove the surge tank outlet hose from the surge tank.

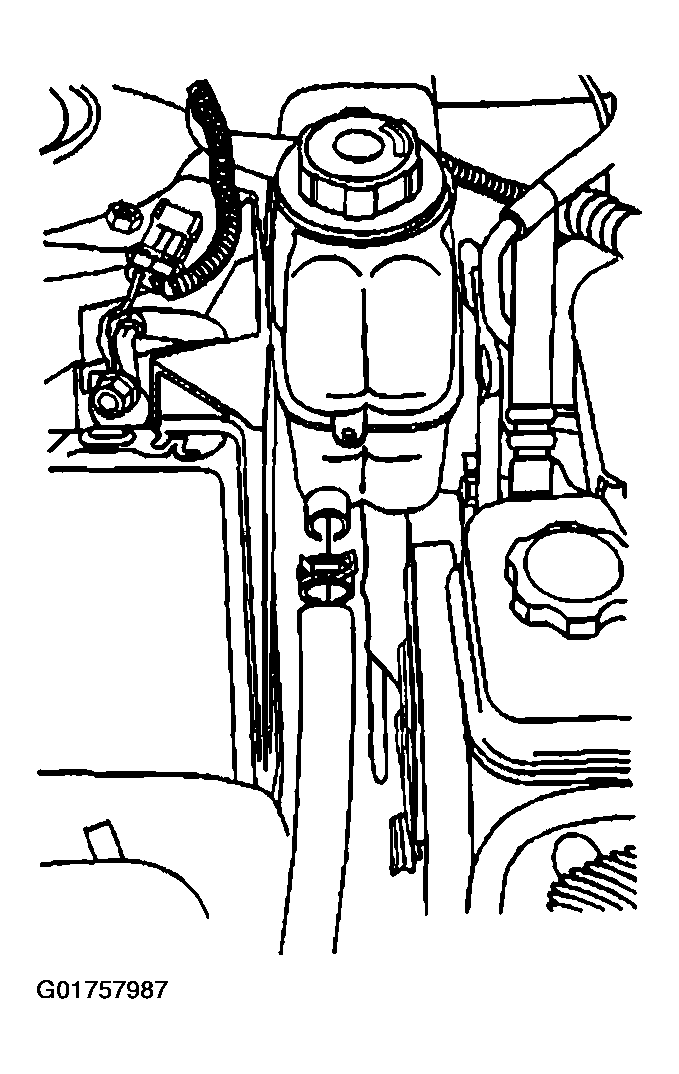

Fig 1: Remove Surge Tank Outlet Hose From Surge Tank
Courtesy of GENERAL MOTORS CORP.
Reposition the surge tank outlet hose clamp from the thermostat housing use J 38185.
Remove the surge tank outlet hose from the thermostat housing.

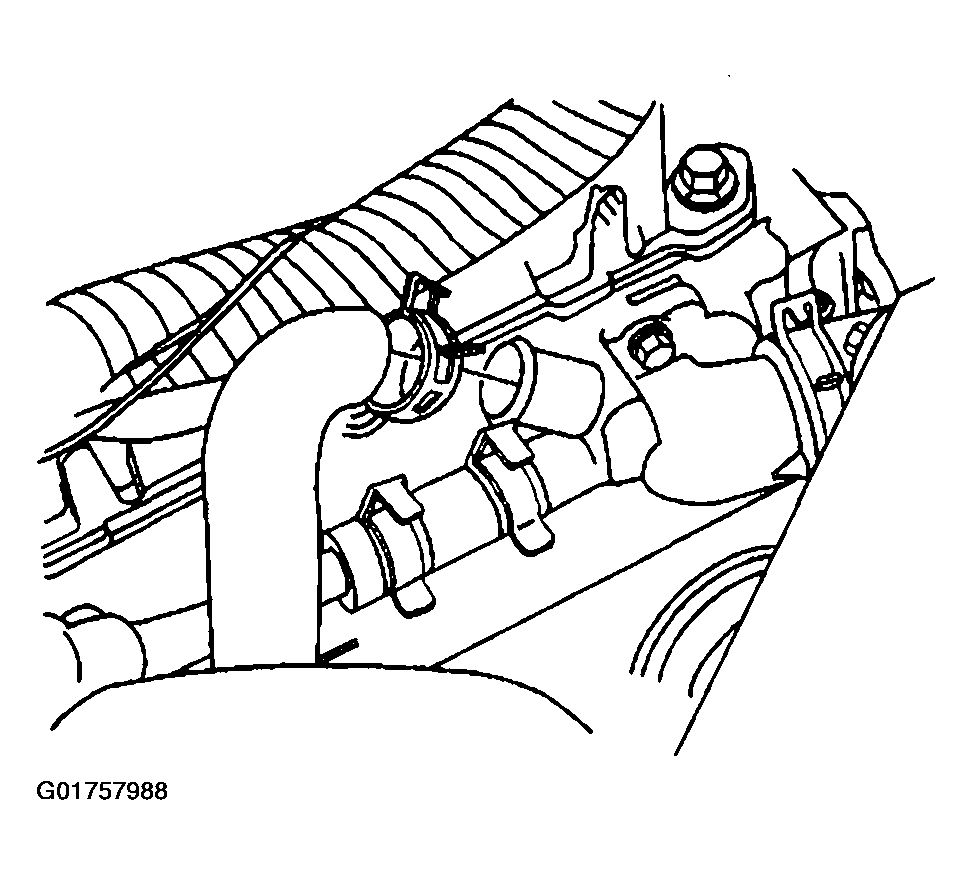

Fig 2: Remove Surge Tank Outlet Hose From Thermostat Housing
Courtesy of GENERAL MOTORS CORP.
