Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the surge tank outlet hose to the thermostat housing.
  2. Install the surge tank outlet hose clamp to the thermostat housing use J 38185  .

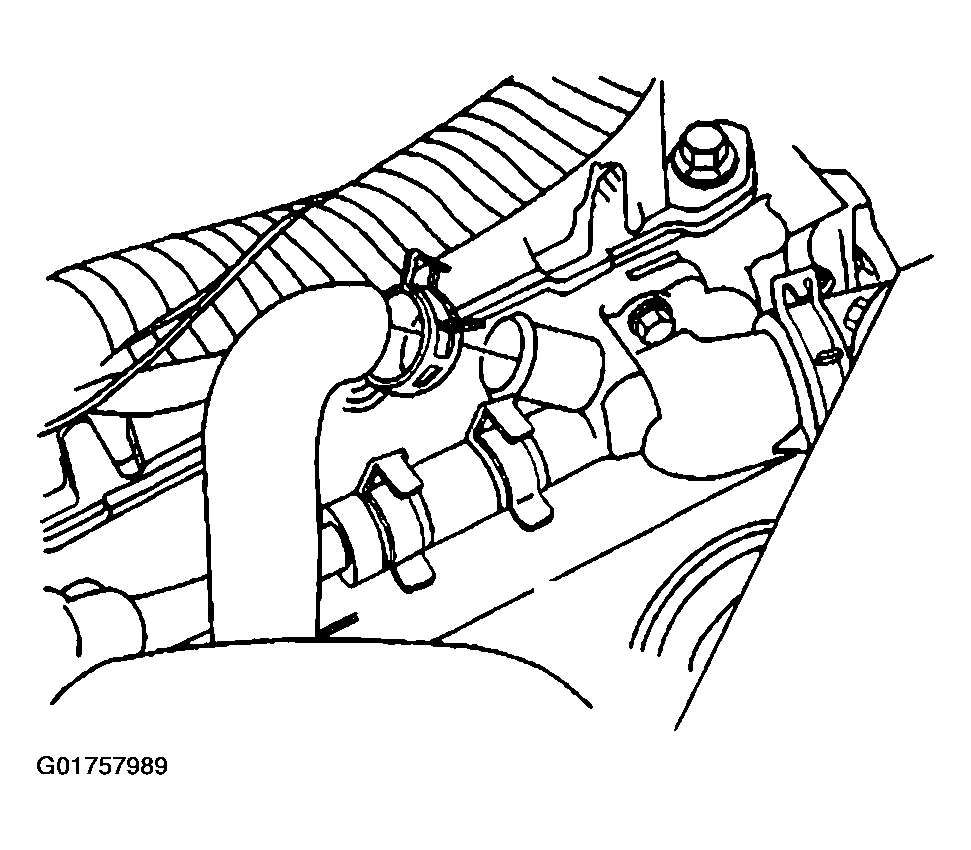

    Fig 1: Install Surge Tank Outlet Hose To Thermostat Housing
    G01757989Courtesy of GENERAL MOTORS CORP.
  3. Install the surge tank outlet hose to the surge tank.
  4. Install the surge tank outlet hose clamp to the surge tank use J 38185  .
  5. Fill the cooling system. Refer to Draining and Filling Cooling System .

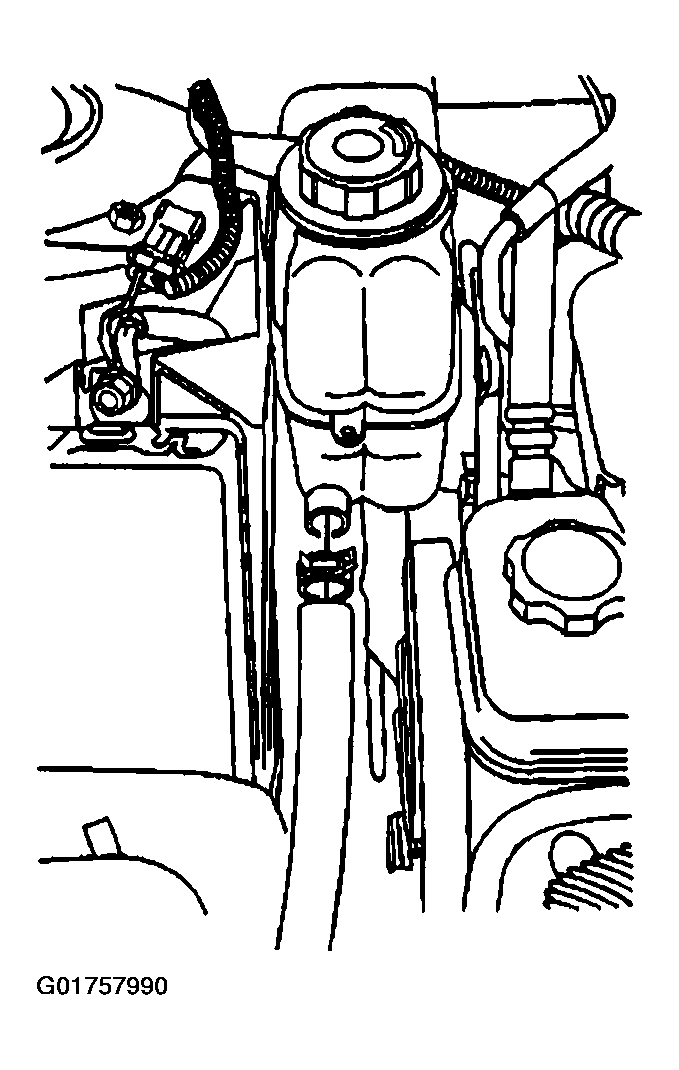

    Fig 2: Install Surge Tank Outlet Hose To Surge Tank
    G01757990Courtesy of GENERAL MOTORS CORP.
