Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inlet surge tank hose to the throttle body heater outlet hose.
  2. Install the inlet surge tank hose clamp to the throttle body heater outlet hose use J 38185  .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the surge tank inlet hose bracket bolt to the lift hook bracket.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  4. Install the inlet surge tank hose to the surge tank.

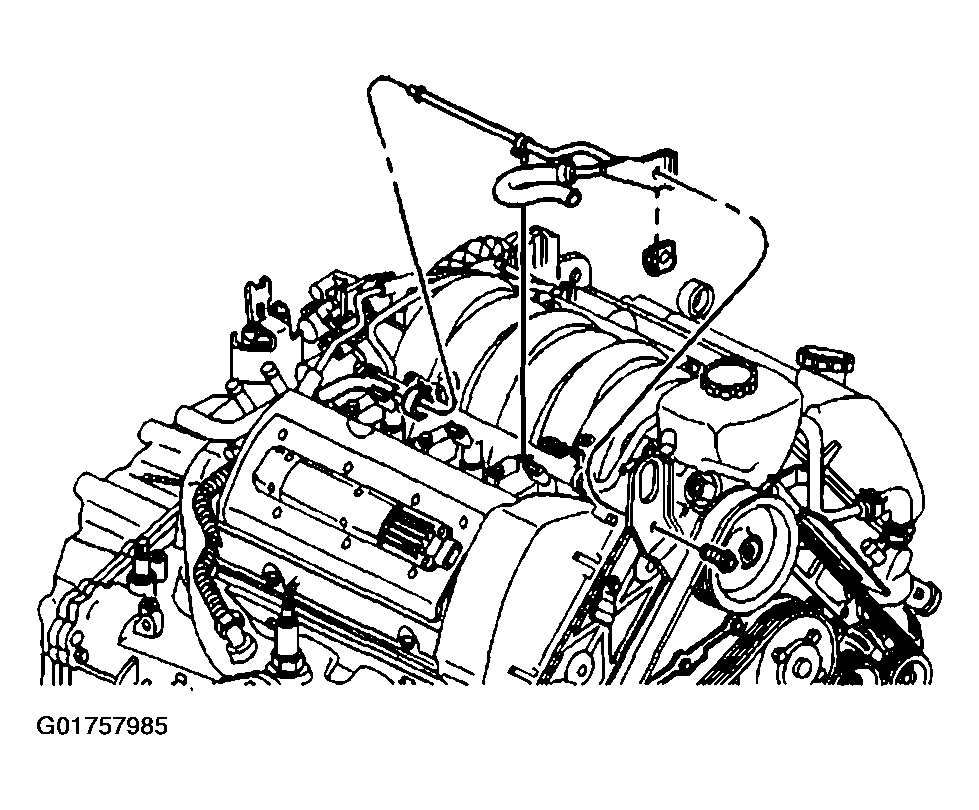

    Fig 1: Install Surge Tank Inlet Hose Bracket Bolt To Lift Hook Bracket
    G01757985Courtesy of GENERAL MOTORS CORP.
  5. Install the inlet surge tank hose clamp to the surge tank use J 38185  .
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .
  7. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT in Engine Mechanical - 3.5L.

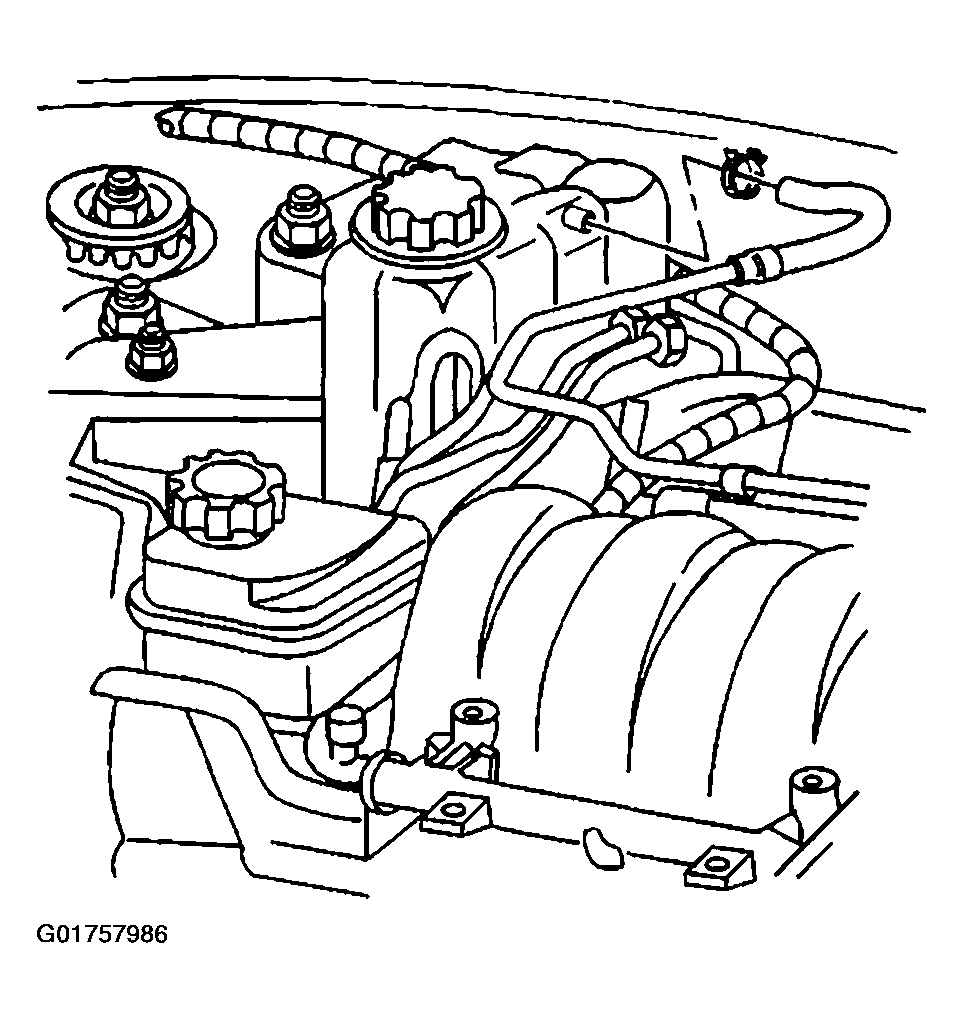

    Fig 2: Install Inlet Surge Tank Hose Clamp To Surge Tank
    G01757986Courtesy of GENERAL MOTORS CORP.
