Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet hose.
  2. Connect the outlet hose to the thermostat housing.
  3. Use J 38185  in order to install the outlet hose clamp to the radiator.

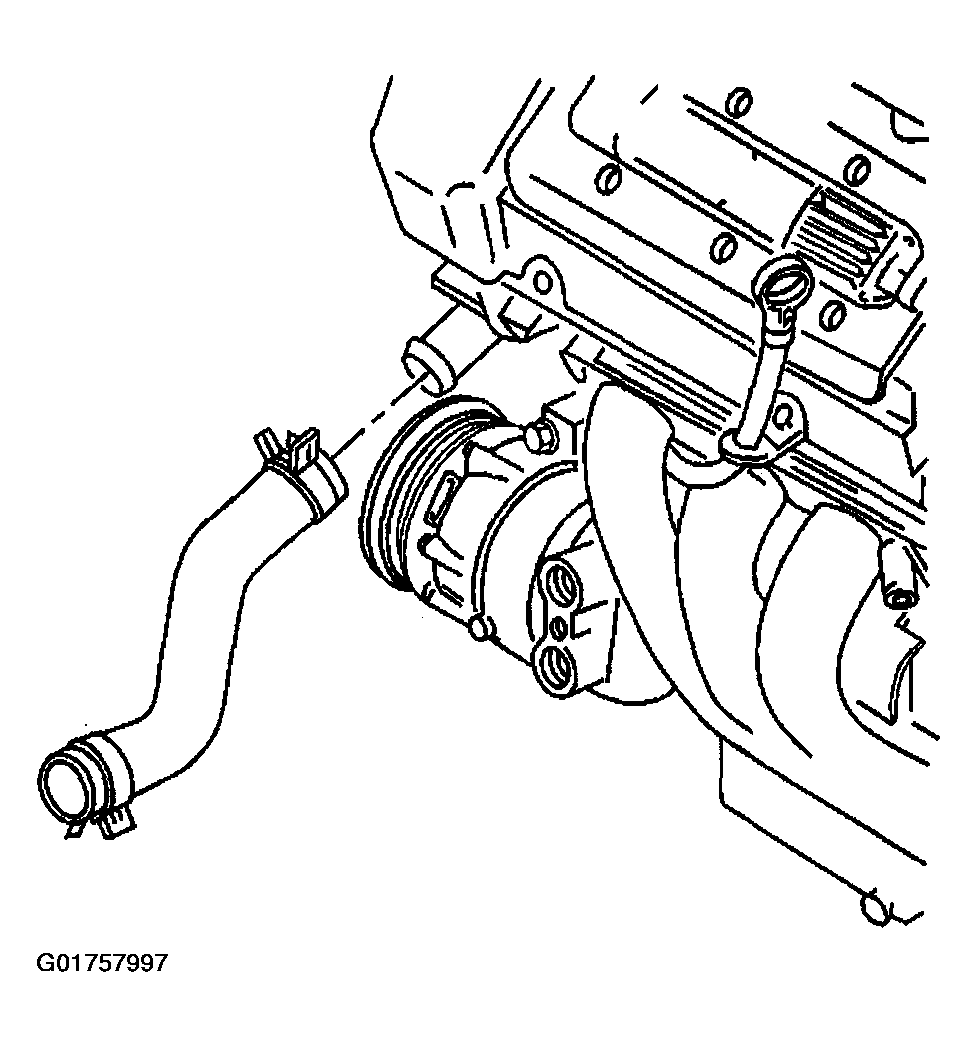

    Fig 1: Connect Outlet Hose To Thermostat Housing
    G01757997Courtesy of GENERAL MOTORS CORP.
  4. Connect the outlet hose to the radiator.
  5. Use J 38185  in order to install the outlet hose clamp to the radiator.
  6. Install the lower air baffle. Refer to Radiator Air Baffle and Deflector Replacement - Lower .
  7. Lower the vehicle.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .

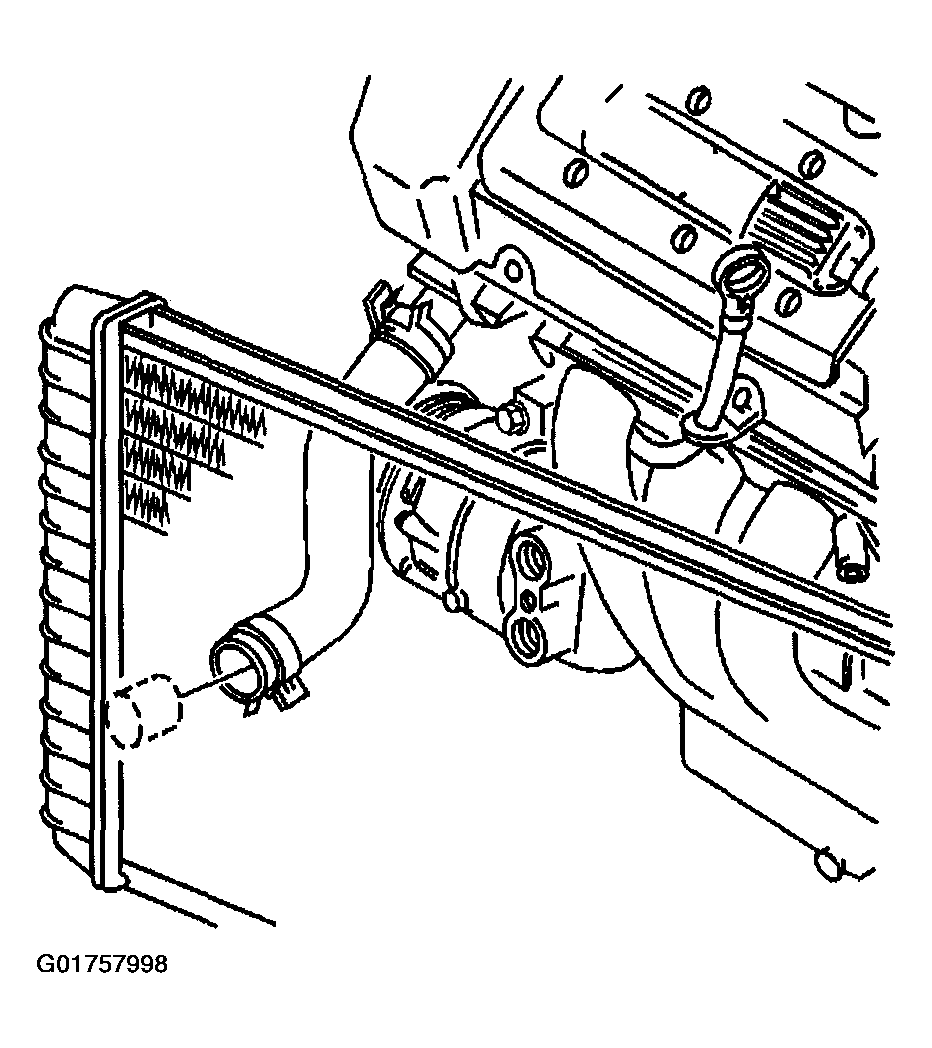

    Fig 2: Connect Outlet Hose To Radiator
    G01757998Courtesy of GENERAL MOTORS CORP.
