Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the LH diagonal brace. Refer to BRACE REPLACEMENT - SHEET METAL DIAGONAL in Body Front End.
  3. Use J 38185  in order to remove the inlet hose clamp from the radiator.
  4. Remove the inlet hose from the radiator.

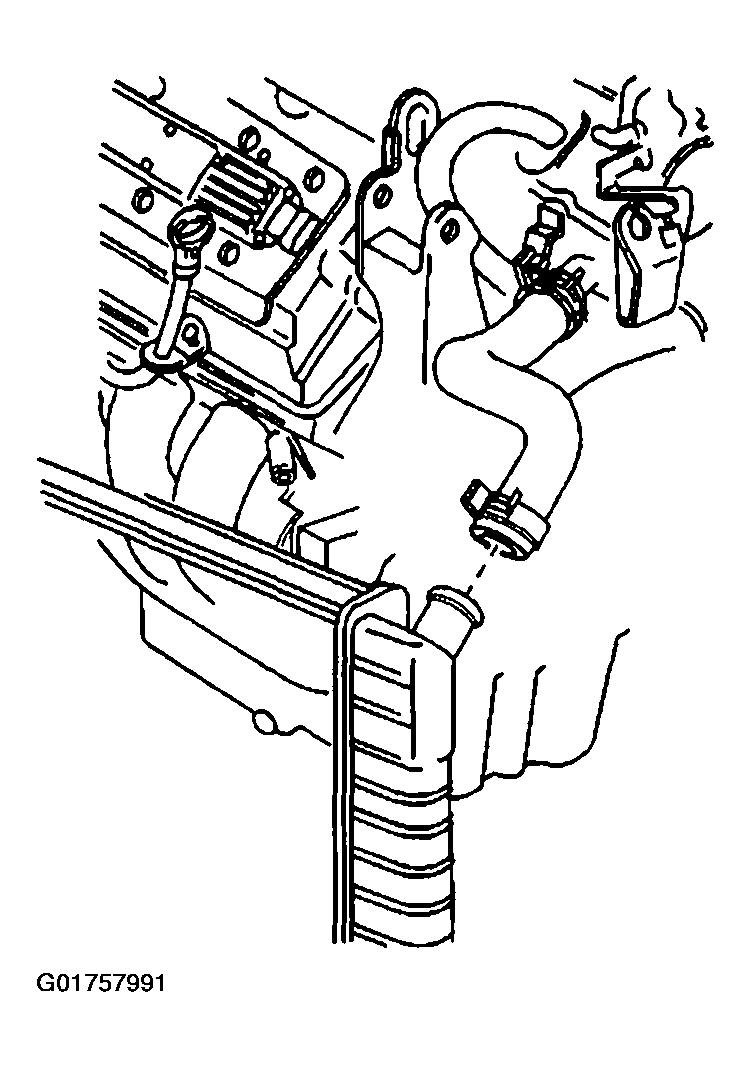

    Fig 1: Remove Inlet Hose Clamp From Radiator Using J 38185
    G01757991Courtesy of GENERAL MOTORS CORP.
  5. Remove the inlet hose clamp from the water crossover using the J 38185  .
  6. Remove the inlet hose from the water crossover.

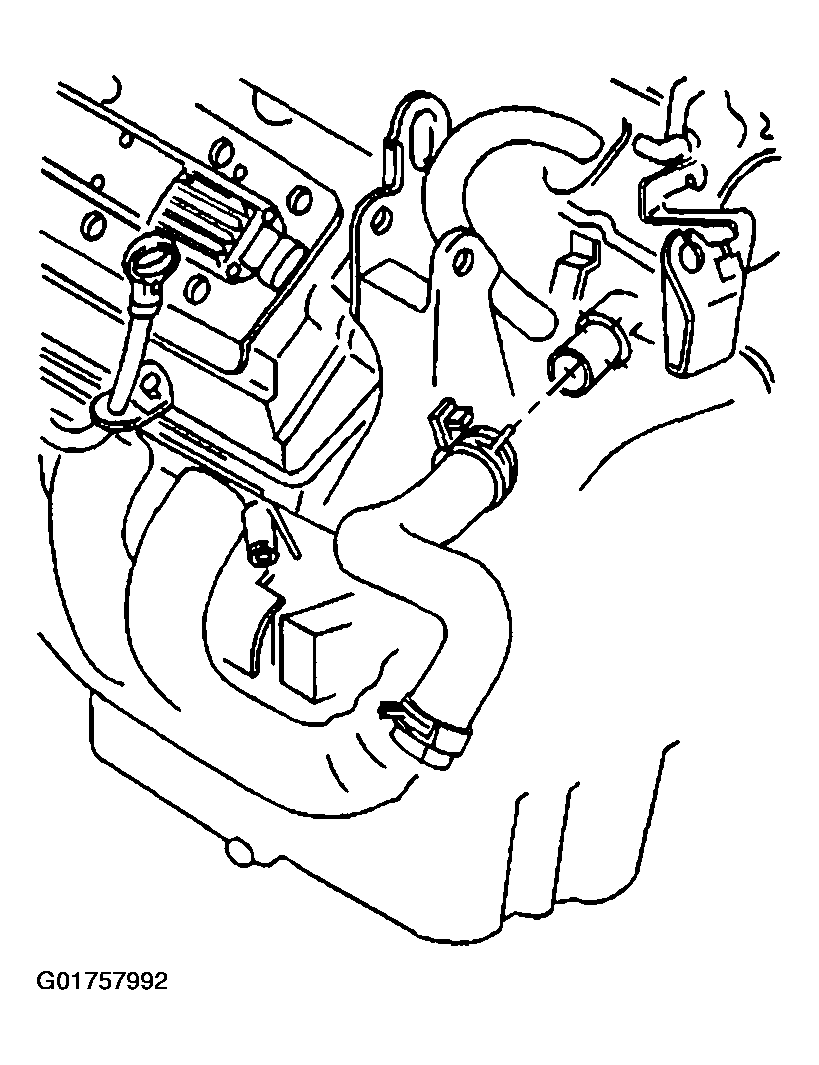

    Fig 2: Remove Inlet Hose Clamp From Water Crossover Using J 38185
    G01757992Courtesy of GENERAL MOTORS CORP.
