Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Important: Radiator side baffles are mounted above and in contact with lower A/C condenser insulators (1).

Install the radiator side baffles.

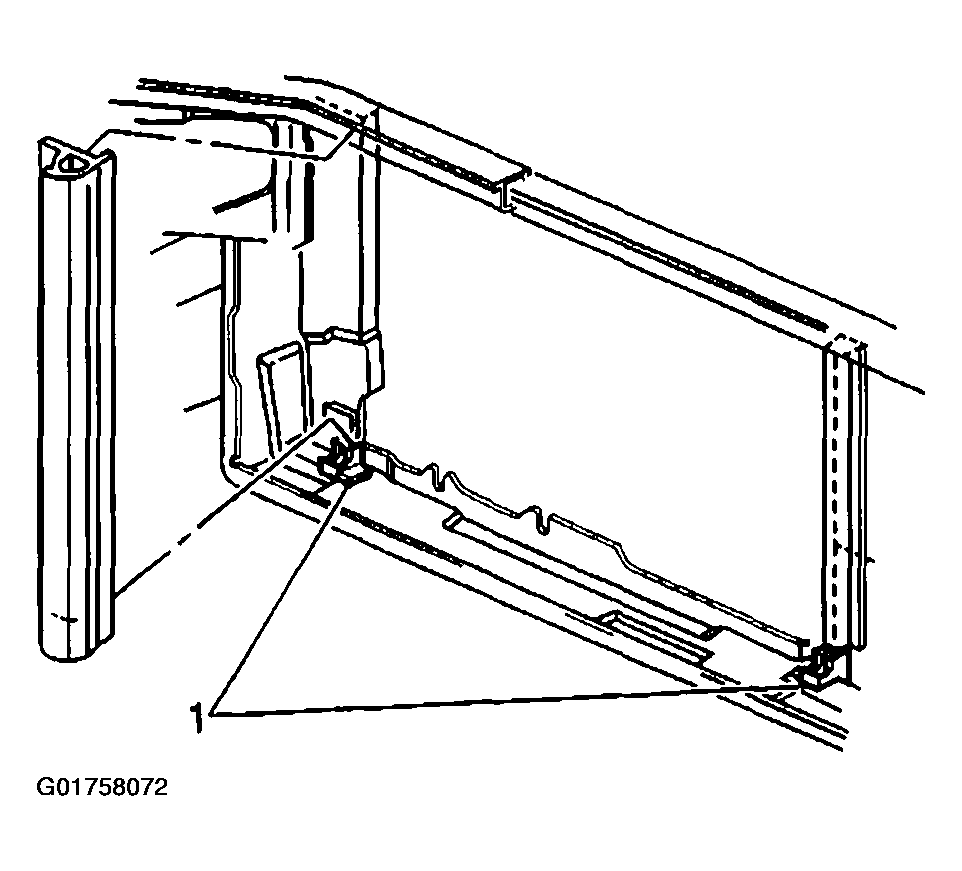

Fig 1: Installing Radiator Side Baffles
Courtesy of GENERAL MOTORS CORP.
Place left radiator side baffle (1) as shown.

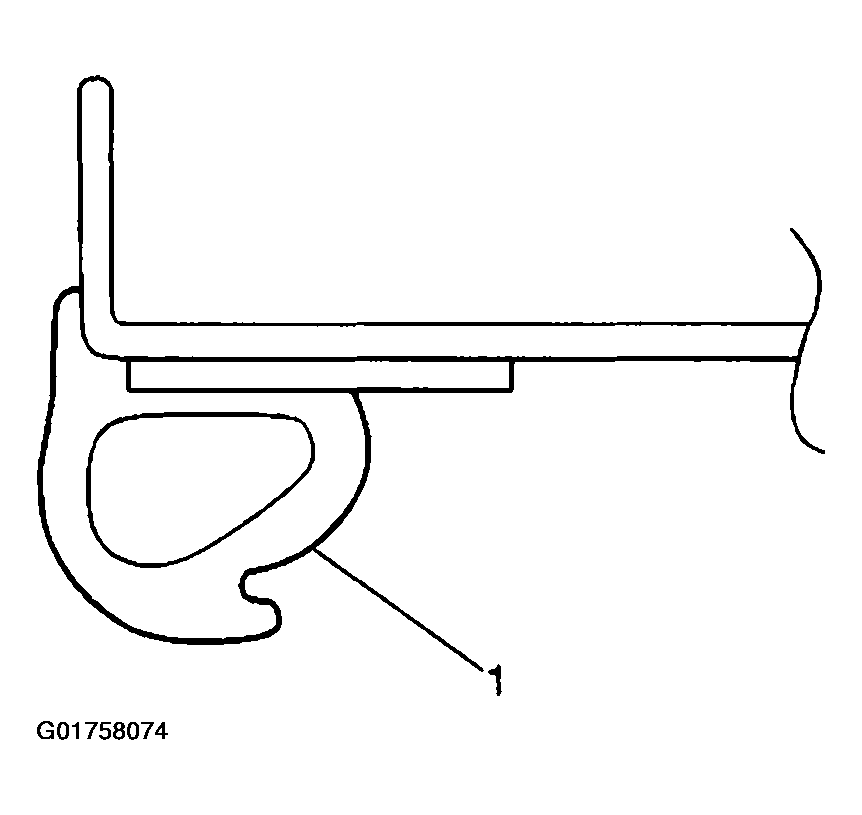

Fig 2: Place Left Radiator Side Baffle
Courtesy of GENERAL MOTORS CORP.
Place right radiator side baffle (1) as shown.
Install the radiator. Refer to Radiator Replacement Radiator Replacement .

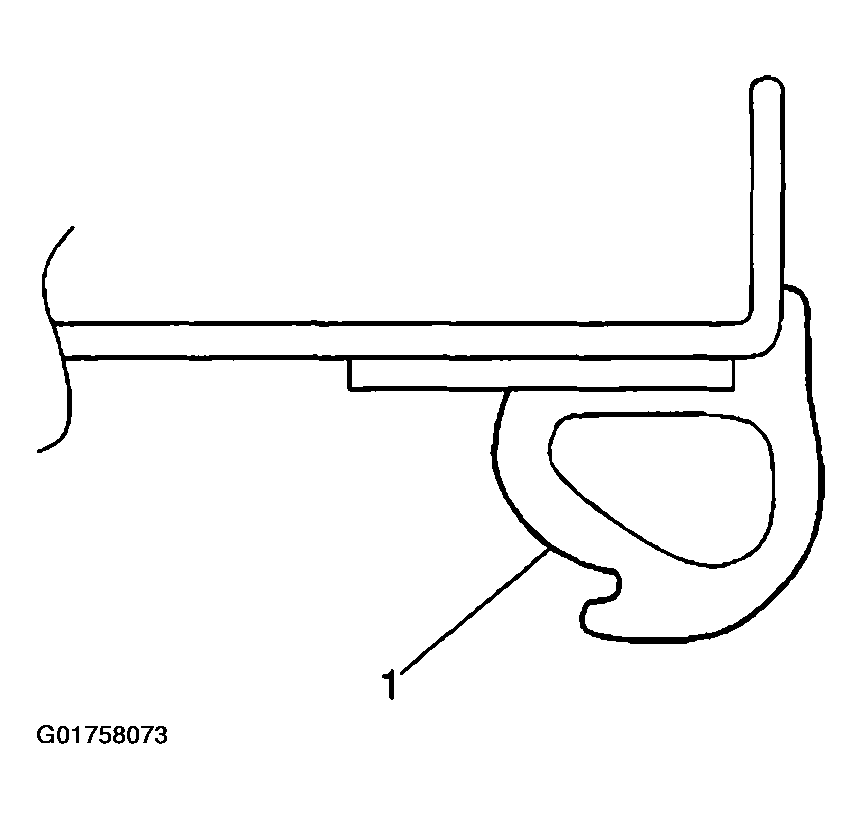

Fig 3: Place Right Radiator Side Baffle
Courtesy of GENERAL MOTORS CORP.
