Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the radiator lower air deflector mounting bolts.
  3. Remove the radiator lower air deflector.

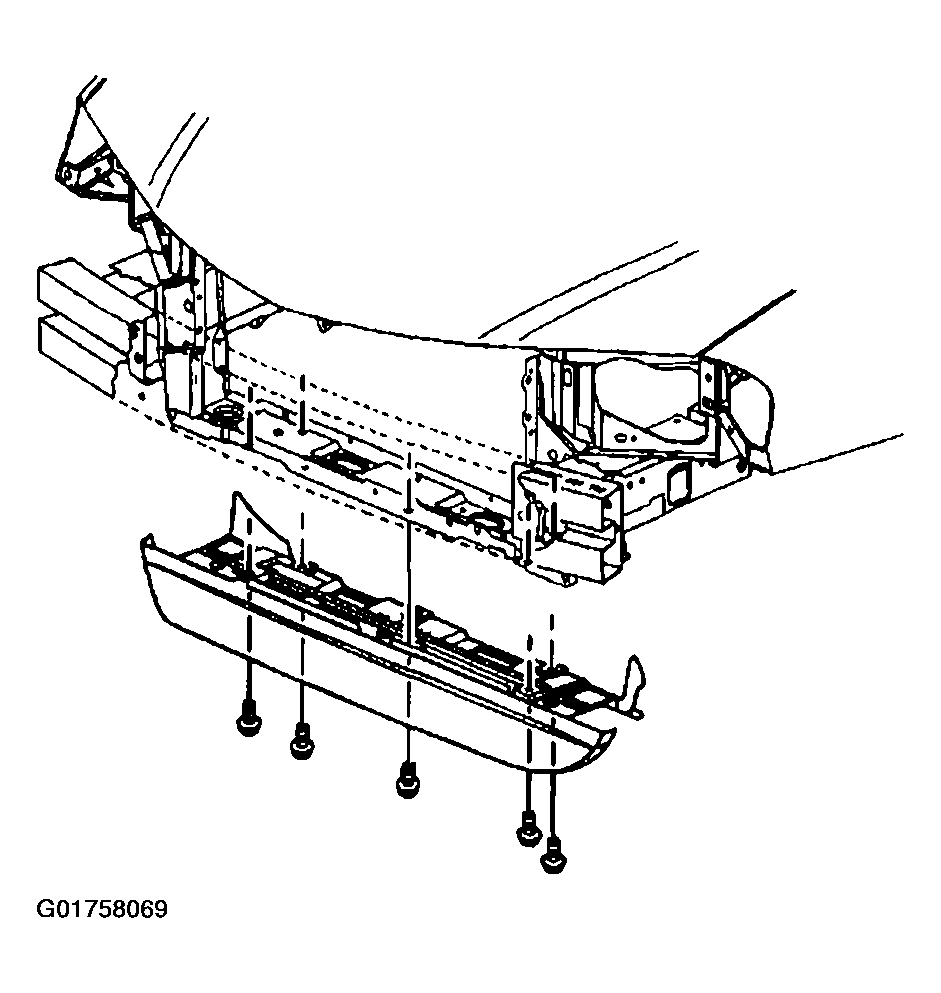

    Fig 1: Remove Radiator Lower Air Deflector And Mounting Bolts
    G01758069Courtesy of GENERAL MOTORS CORP.
