Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator lower air deflector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the radiator lower air deflector mounting bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.

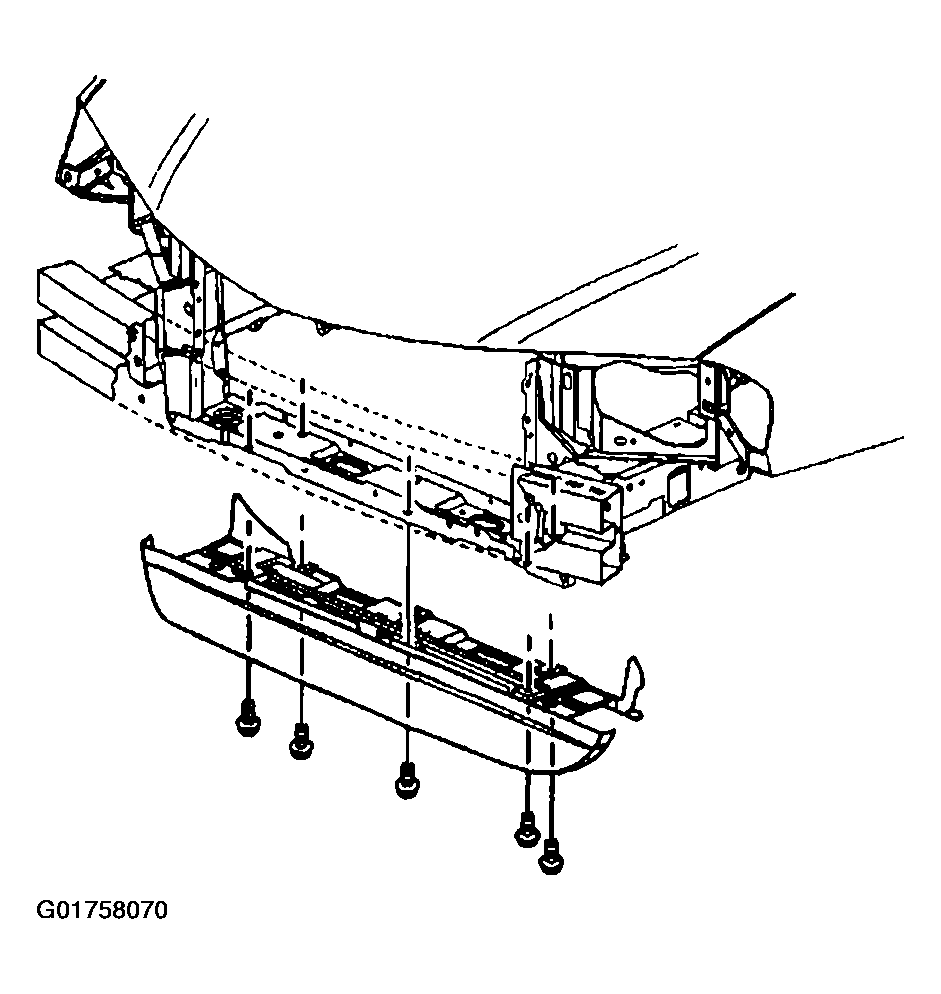

    Fig 1: Install The Radiator Lower Air Deflector And Mounting Bolts
    G01758070Courtesy of GENERAL MOTORS CORP.
