Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Remove the radiator air baffle upper retaining clips.
  3. Raise and suitably support the vehicle.
  4. Remove the outside air temperature sensor. Refer to AMBIENT AIR TEMPERATURE SENSOR in HVAC Systems - Automatic.
  5. Remove the radiator air baffle lower retaining clips.
  6. Remove the radiator air baffle.

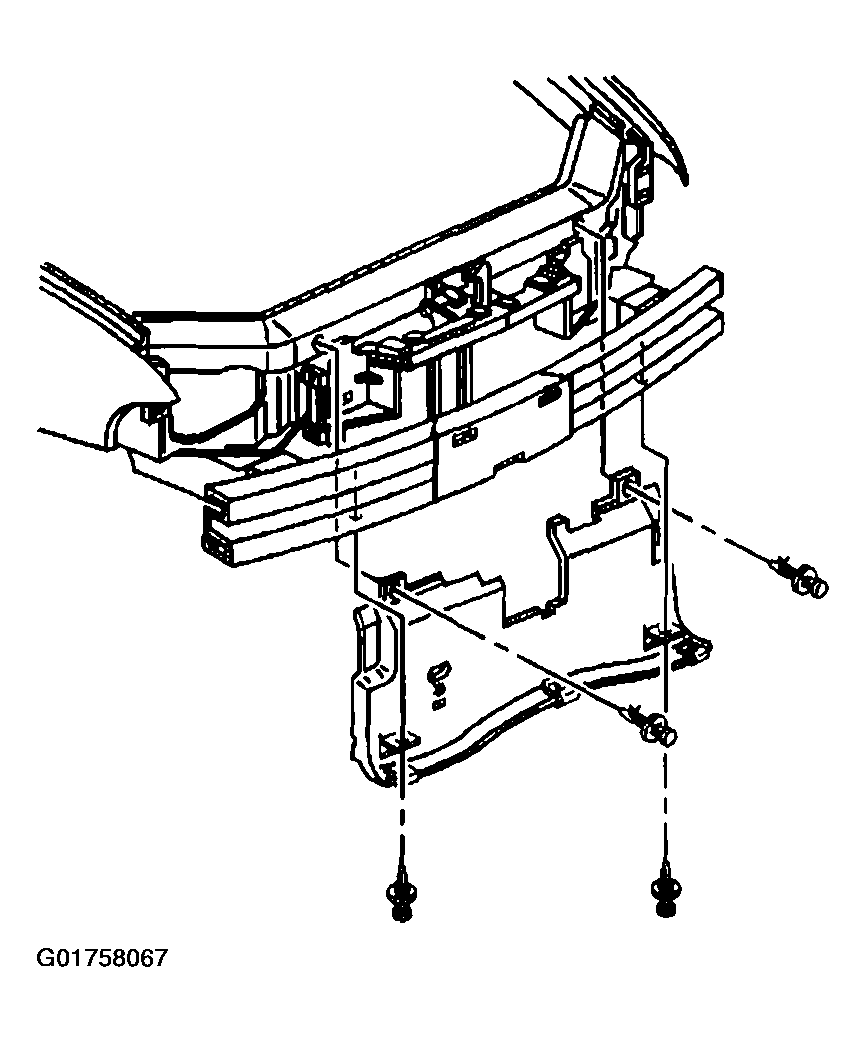

    Fig 1: Remove Radiator Air Baffle And Lower Retaining Clips
    G01758067Courtesy of GENERAL MOTORS CORP.
