Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator air baffle.
  2. Install the radiator air baffle lower retaining clips.
  3. Install the outside air temperature sensor. Refer to AMBIENT AIR TEMPERATURE SENSOR in HVAC Systems - Automatic.
  4. Lower the vehicle.
  5. Install the radiator air baffle upper retaining clips.
  6. Lower the hood.

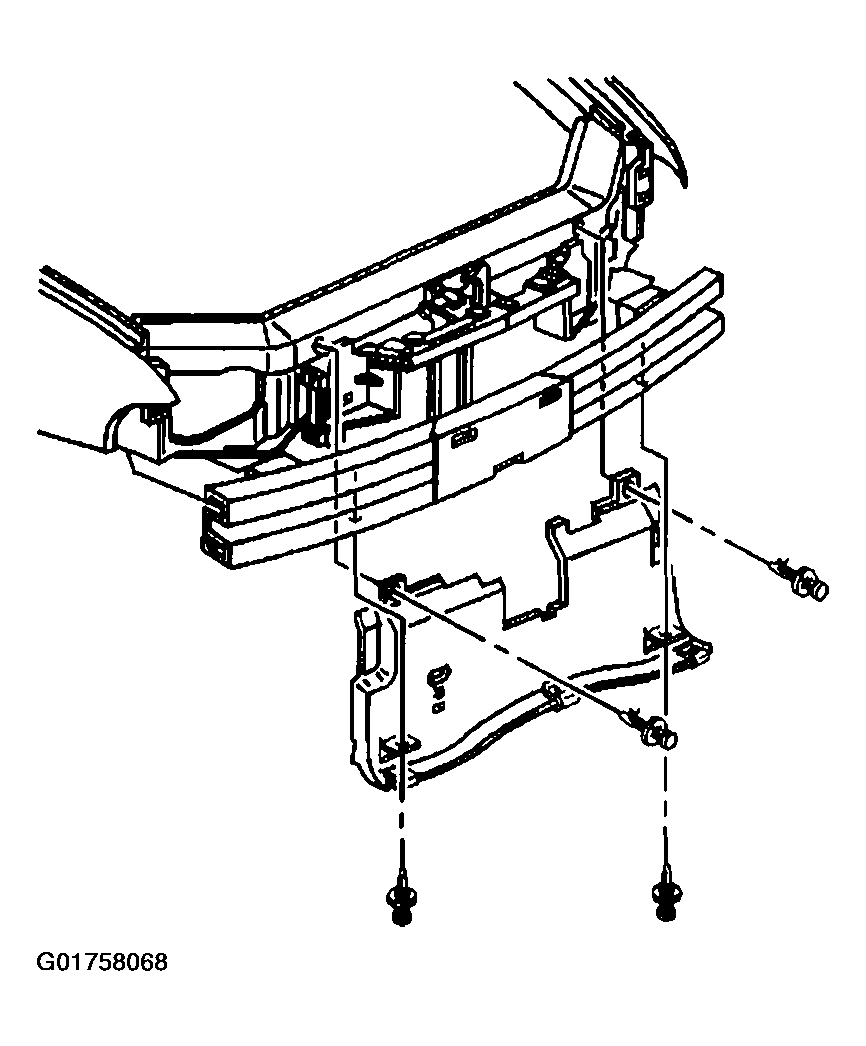

    Fig 1: Install The Radiator Air Baffle And Upper Retaining Clips
    G01758068Courtesy of GENERAL MOTORS CORP.
