Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cooling fans. Refer to Cooling Fan Replacement - Electric .
  2. Remove the cooling fan motors bolts.
  3. Remove the cooling fan motors from the fan shroud.

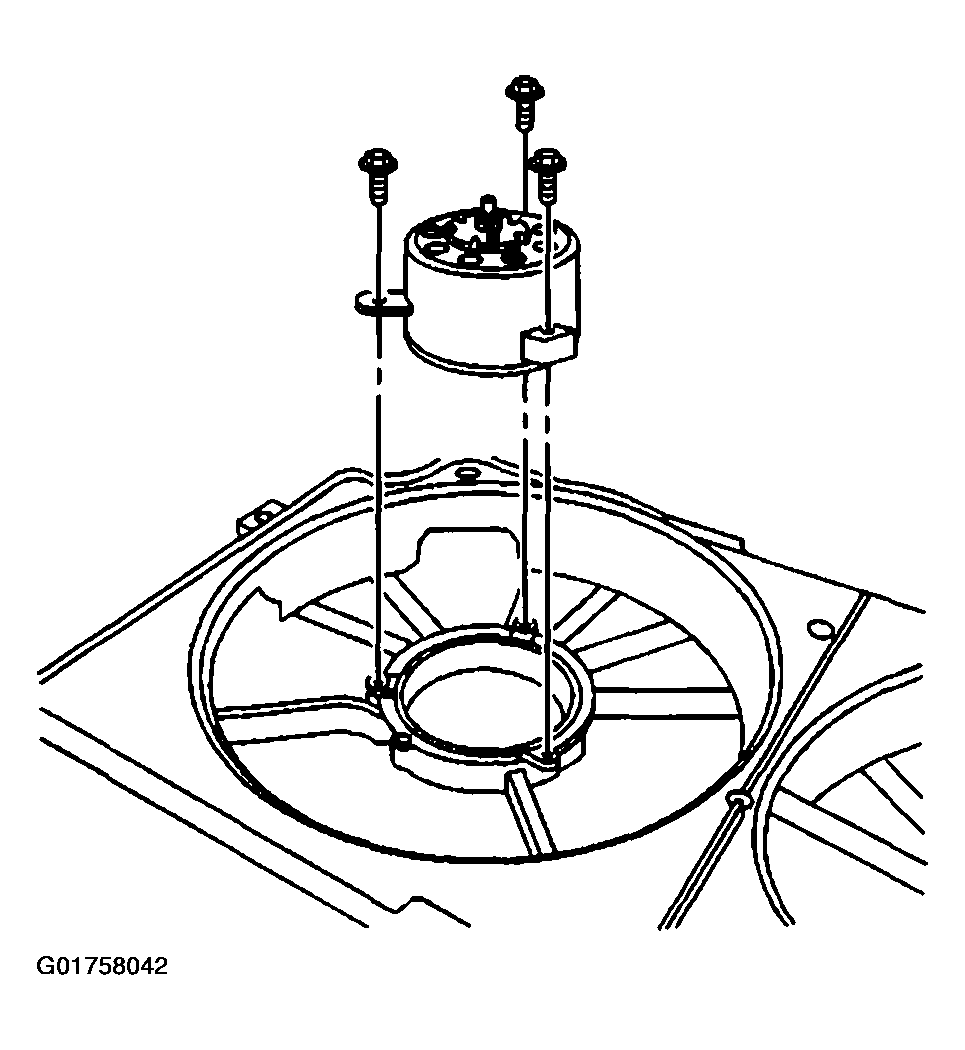

    Fig 1: Remove Cooling Fan Motors And Bolts
    G01758042Courtesy of GENERAL MOTORS CORP.
