Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fan motors onto the fan shroud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cooling fan motors bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  3. Install the cooling fans. Refer to Cooling Fan Replacement - Electric .

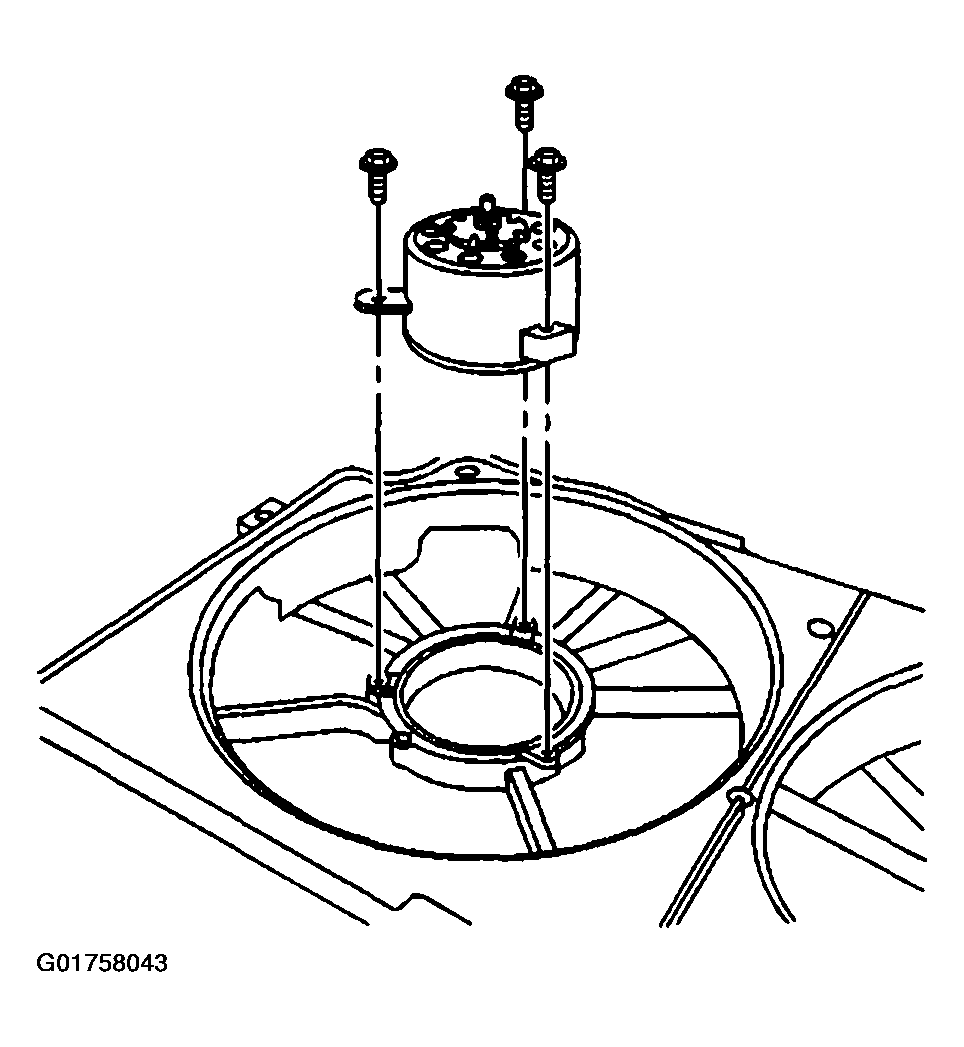

    Fig 1: Install Cooling Fan Motors And Bolts
    G01758043Courtesy of GENERAL MOTORS CORP.
