Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cooling fan. Refer to Cooling Fan Replacement - Electric .
  2. Remove the cooling fan motor bolts.
  3. Remove the cooling fan motors from the fan shroud.

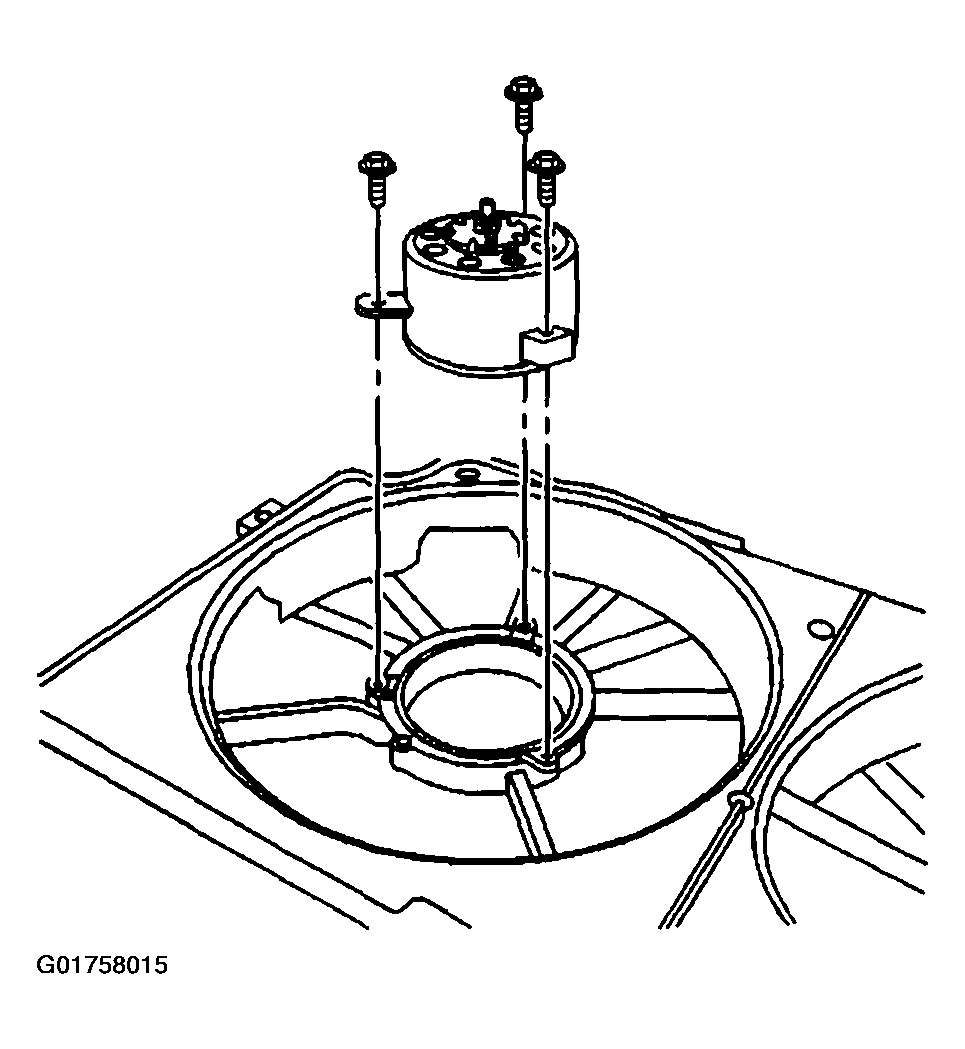

    Fig 1: Remove Cooling Fan Motors From Fan Shroud
    G01758015Courtesy of GENERAL MOTORS CORP.
