Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fan motors onto the fan shroud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cooling fan motors bolts.

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  3. Install the cooling fan. Refer to Cooling Fan Motor Replacement - Electric .

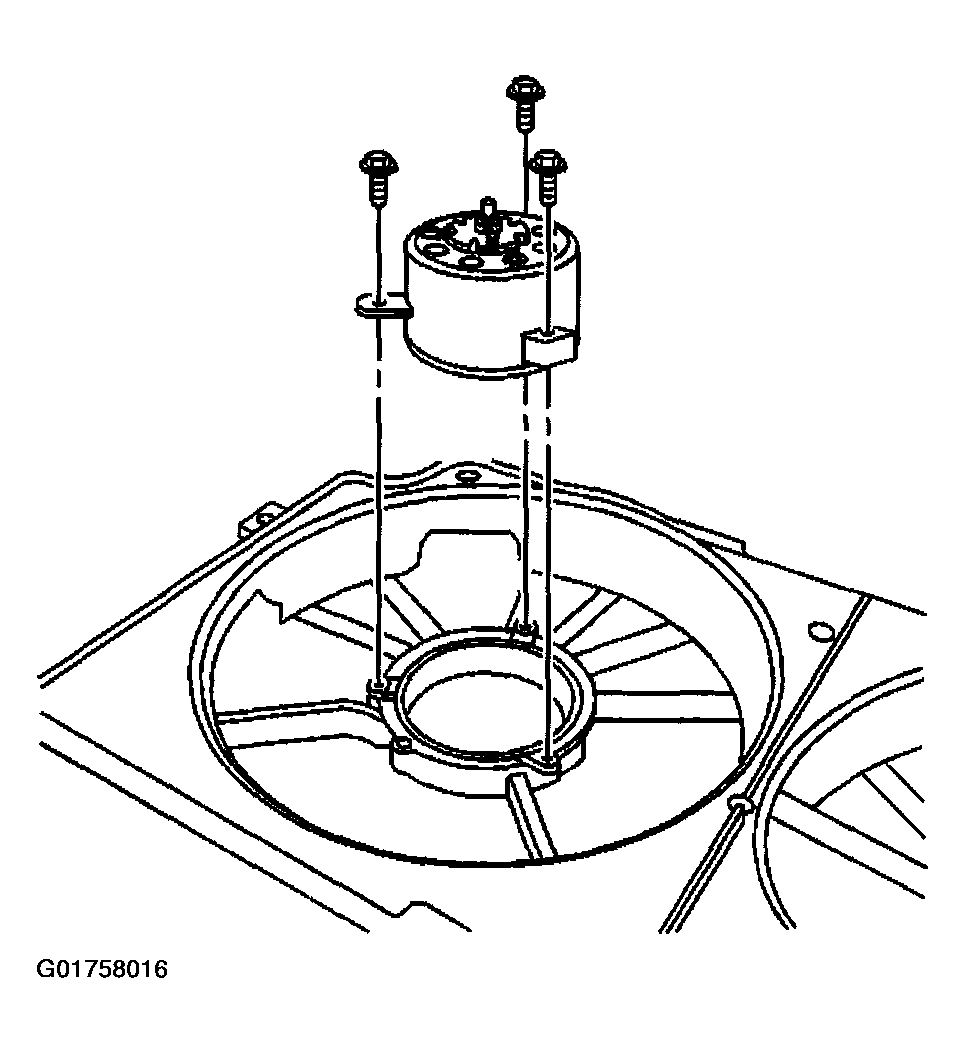

    Fig 1: Install cooling fan motors onto fan shroud
    G01758016Courtesy of GENERAL MOTORS CORP.
