Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Disconnect the right coolant heater electrical connector (3).

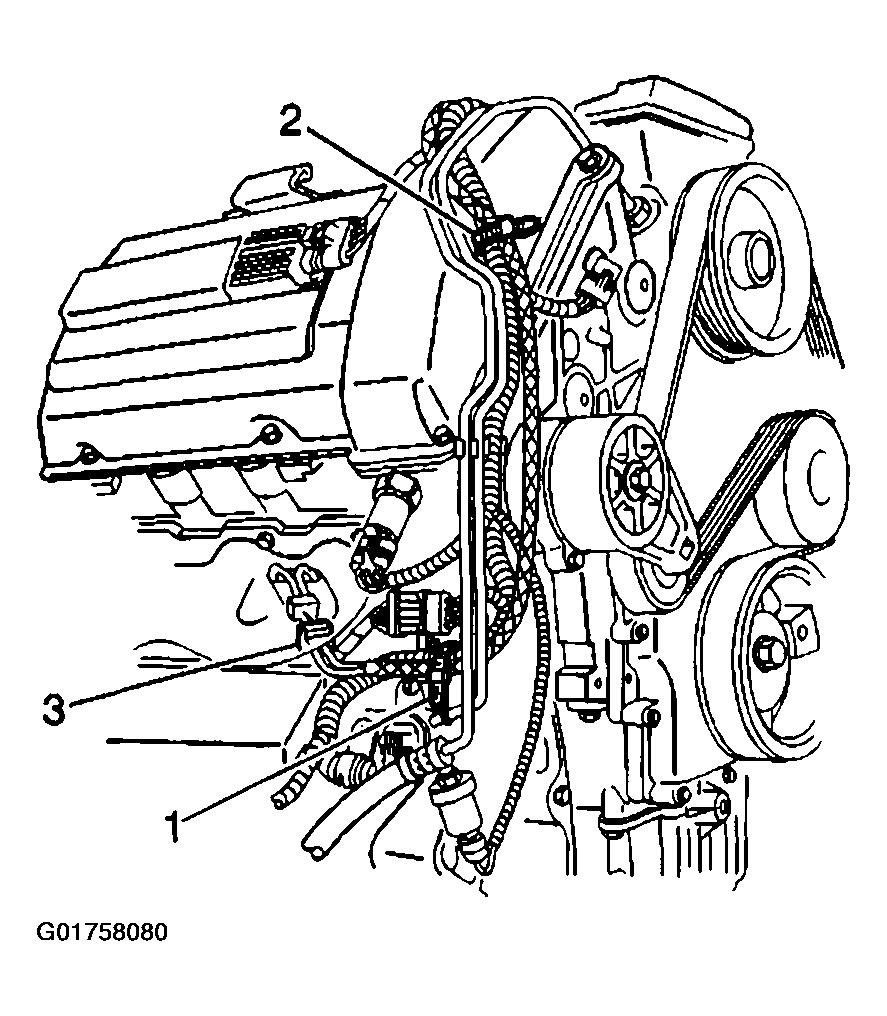

    Fig 1: Disconnect Right Coolant Heater Electrical Connector (Right)
    G01758080Courtesy of GENERAL MOTORS CORP.
  3. Remove the right coolant heater bolt.
  4. Remove the right coolant heater.

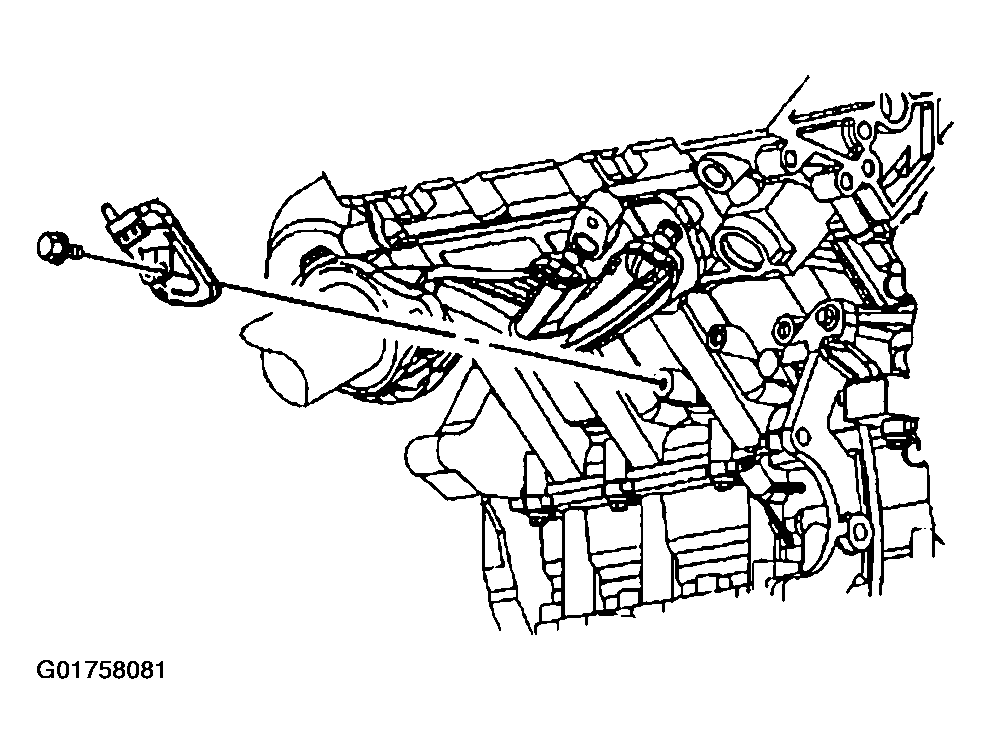

    Fig 2: Remove Right Coolant Heater And Bolt (Right)
    G01758081Courtesy of GENERAL MOTORS CORP.
