Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Important: Align the threaded hole in the engine block with the hole labeled R (1) on the right coolant heater.

Install the right coolant heater.

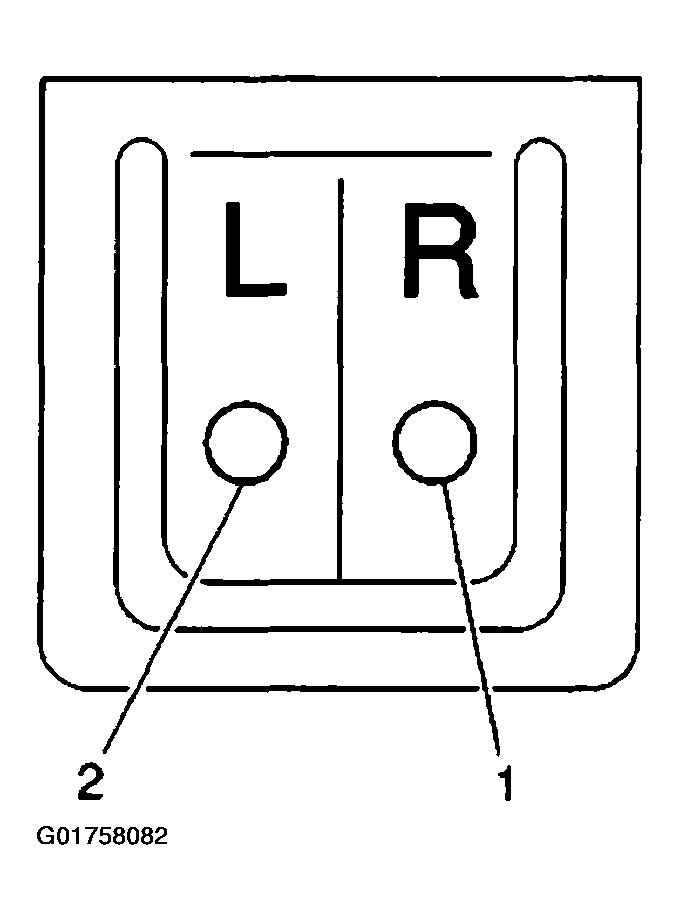

Fig 1: Align Threaded Hole In Engine Block With Hole Labeled R (Right)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

NOTE: The heater cord must not touch the engine, hot pipes, manifold, or any moving parts. Route the cord to the left front of the engine compartment securing with tie straps as necessary to prevent damage.
Install the right coolant heater bolt.
Tighten

Tighten the bolt to 9 N.m (80 lb in).

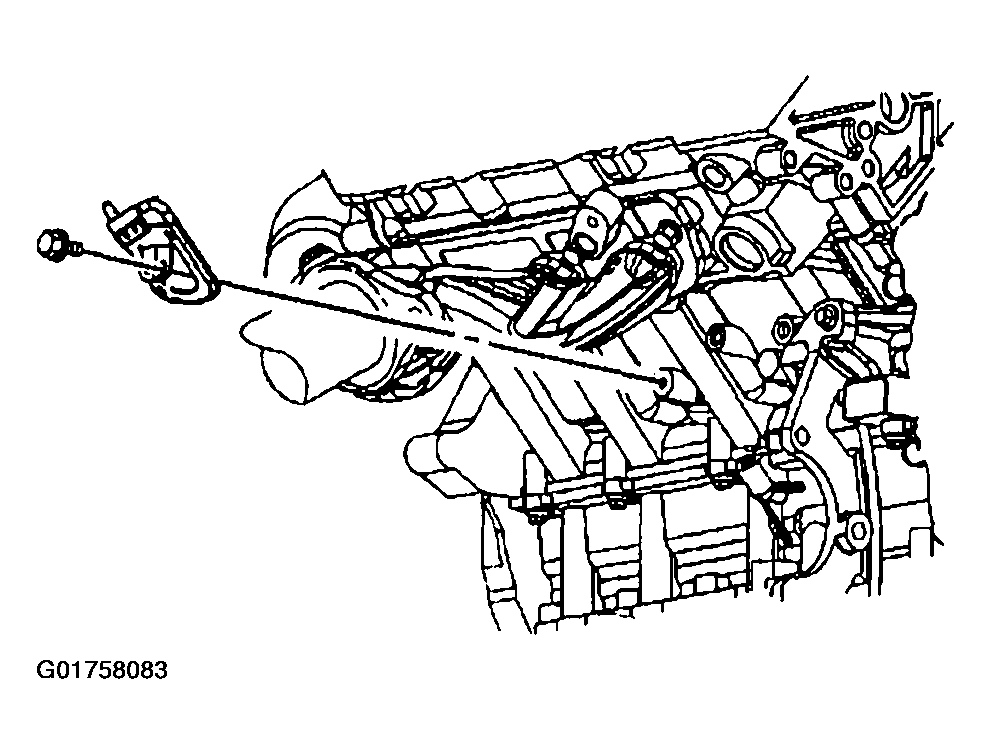

Fig 2: Install Right Coolant Heater Bolt (Right)
Courtesy of GENERAL MOTORS CORP.
Connect the right coolant heater electrical connector (3).
Lower the vehicle.

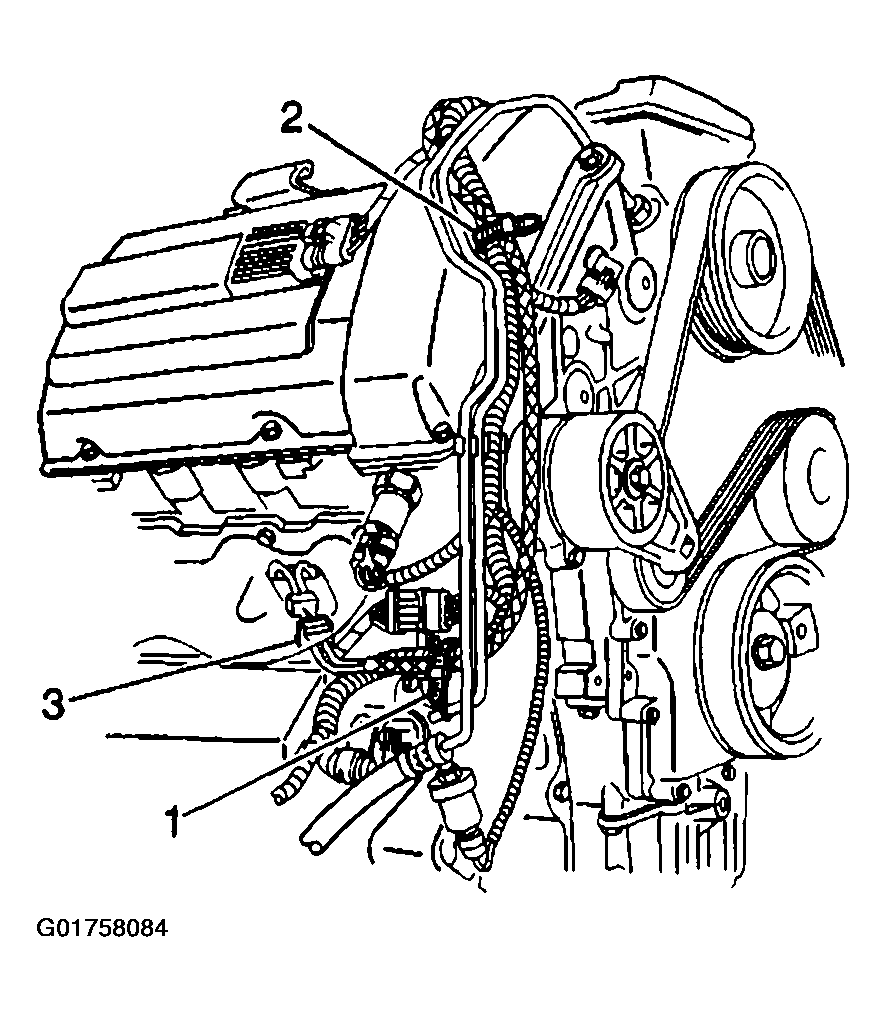

Fig 3: Connect Right Coolant Heater Electrical Connector (Right)
Courtesy of GENERAL MOTORS CORP.
