Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise support the vehicle.
  2. Disconnect the left coolant heater electrical connector (4).

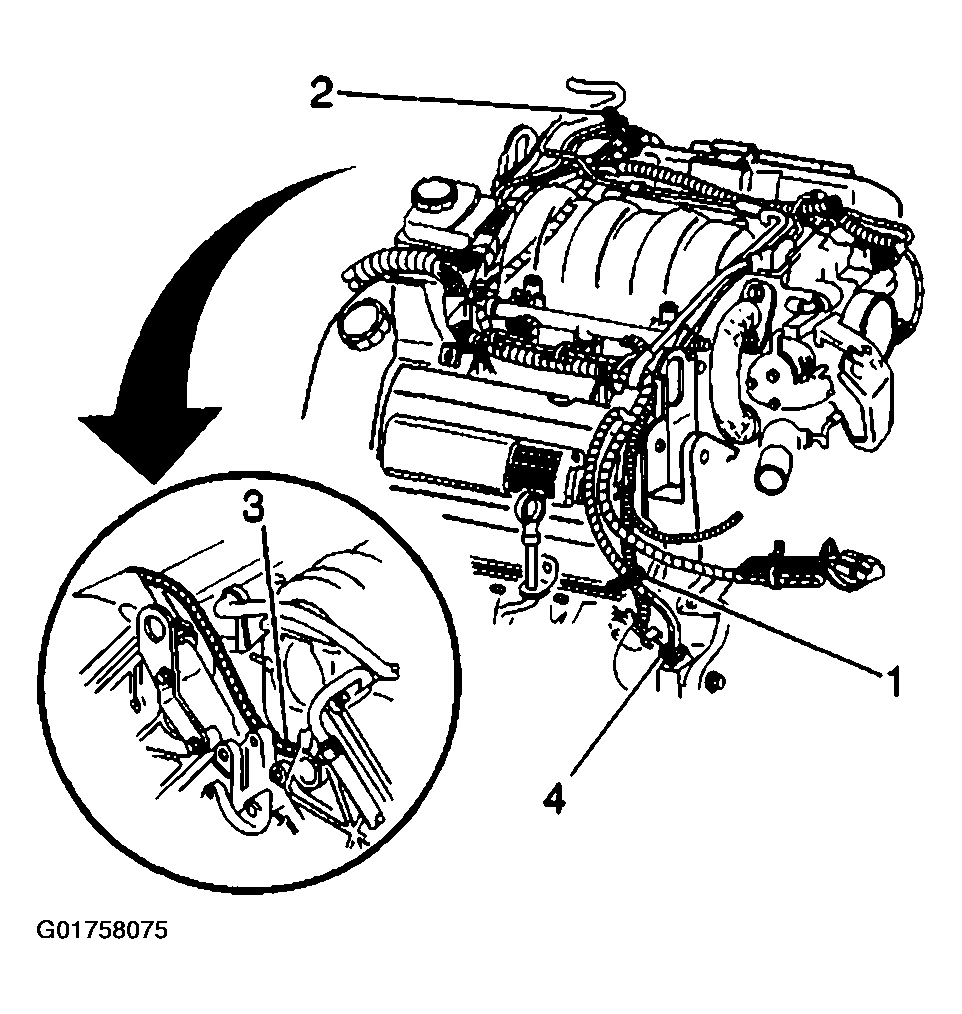

    Fig 1: Disconnect Left Coolant Heater Electrical Connector (Left)
    G01758075Courtesy of GENERAL MOTORS CORP.
  3. Remove the left coolant heater bolt.
  4. Remove the left coolant heater.

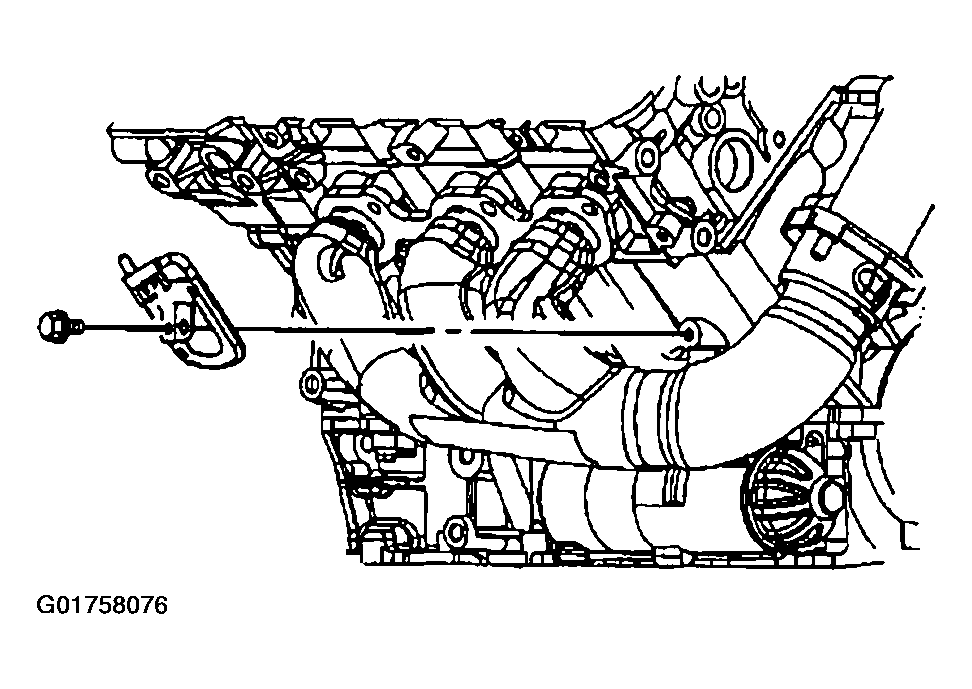

    Fig 2: Remove The Left Coolant Heater And Bolt (Left)
    G01758076Courtesy of GENERAL MOTORS CORP.
