Where to Find Electrical Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Electrical system schematics are located within their respective subsections. Because more than one electrical system is located in each subsection, each electrical systems schematics are further broken down into operating systems. The following table lists all electrical system schematics and the subsection in which they are located.

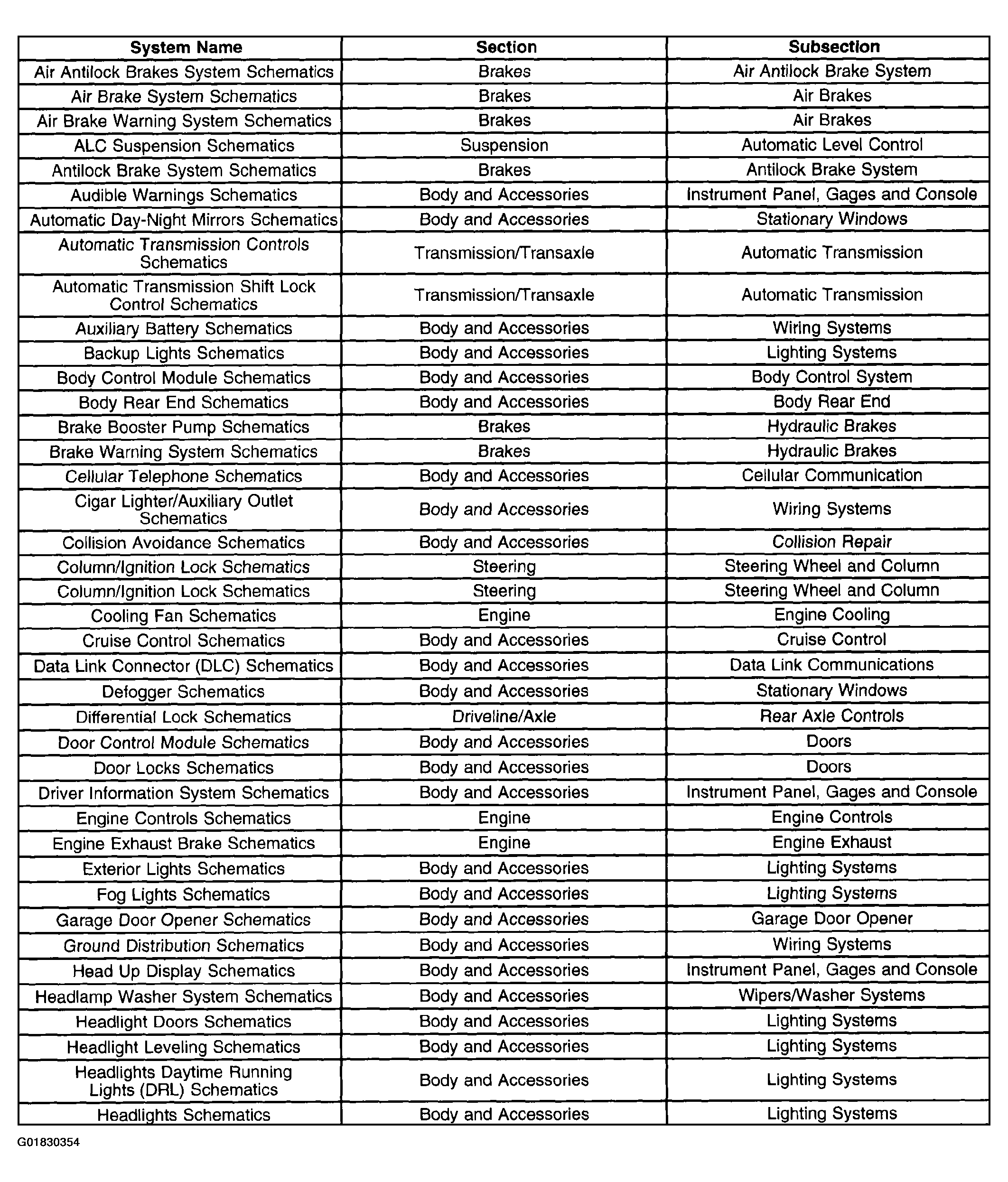

Fig 1: Electrical Schematic Locations (1 Of 3)
G01830354Courtesy of GENERAL MOTORS CORP.

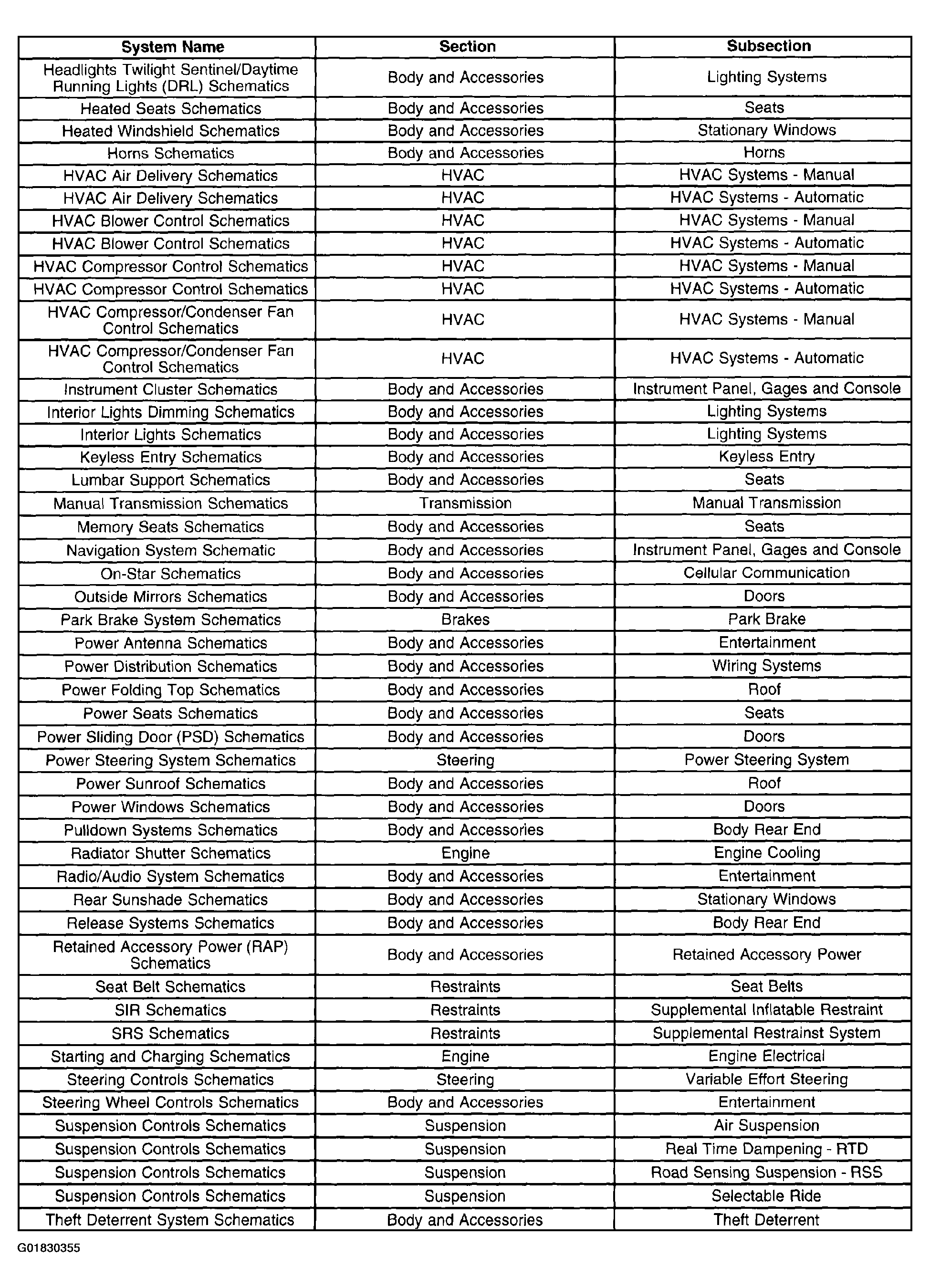

Fig 2: Electrical Schematic Locations (2 Of 3)
G01830355Courtesy of GENERAL MOTORS CORP.

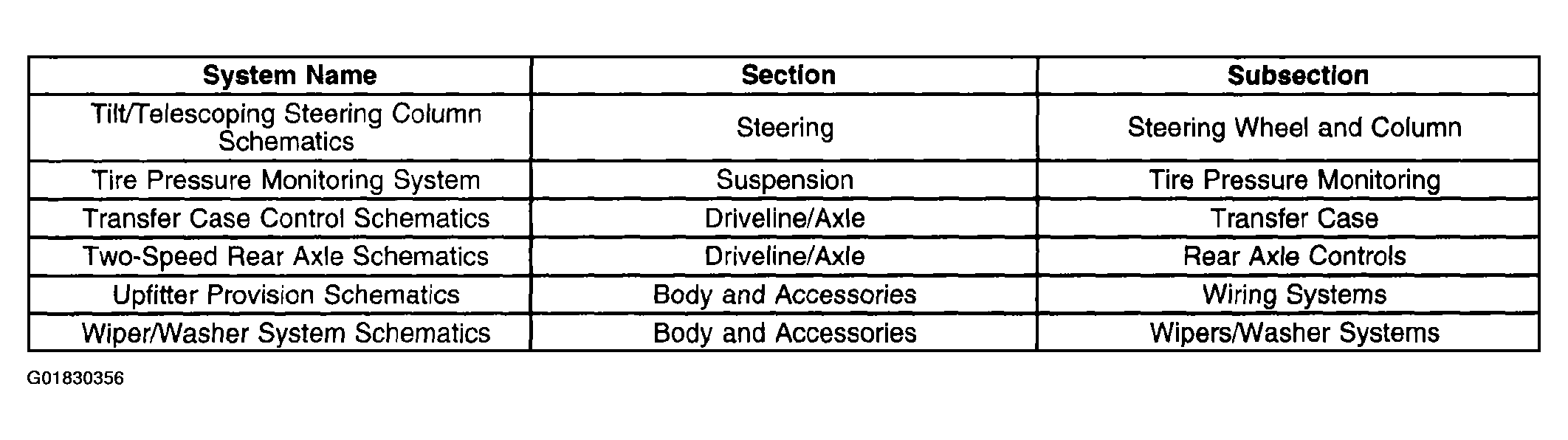

Fig 3: Electrical Schematic Locations (3 Of 3)
G01830356Courtesy of GENERAL MOTORS CORP.
