Disassembly Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mounting bracket bolts (3) from the mounting bracket assembly (2).
  2. Remove the mounting bracket assembly (2) from the pump (1).

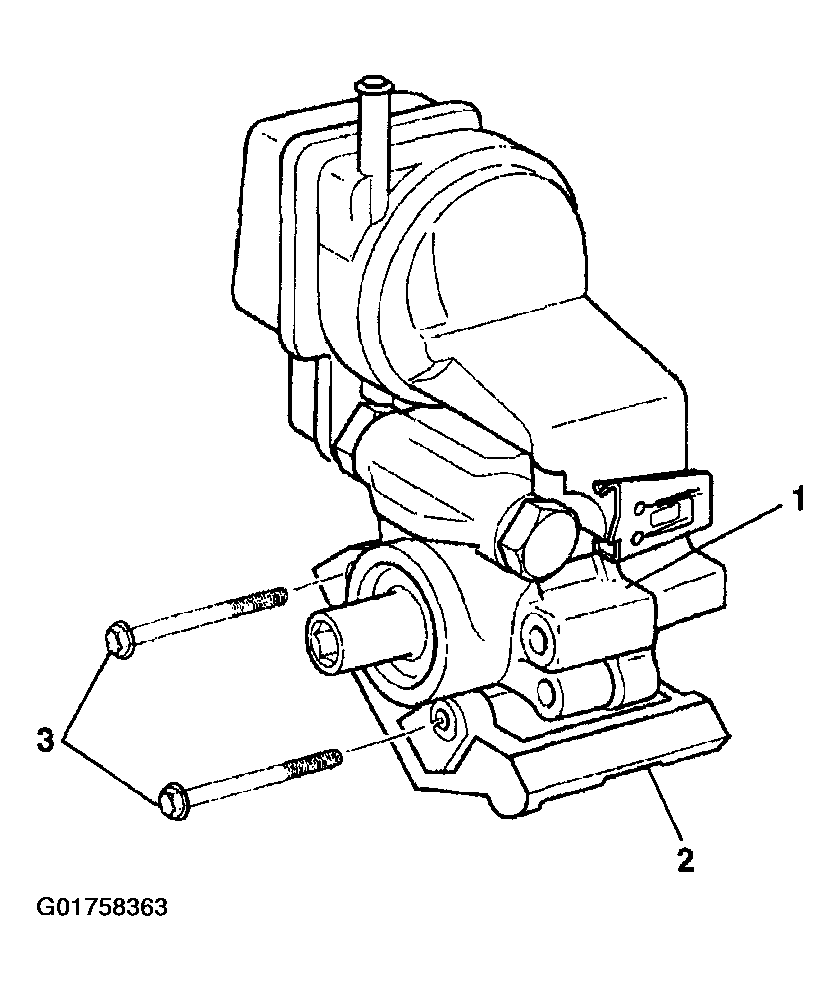

    Fig 1: Mounting Bracket Bolts, Bracket Assembly And Pump
    G01758363Courtesy of GENERAL MOTORS CORP.
  3. Remove retaining clips (2) from the reservoir assembly (1) by inserting a screwdriver into the release clip tang. Tap the clip off with a hammer.

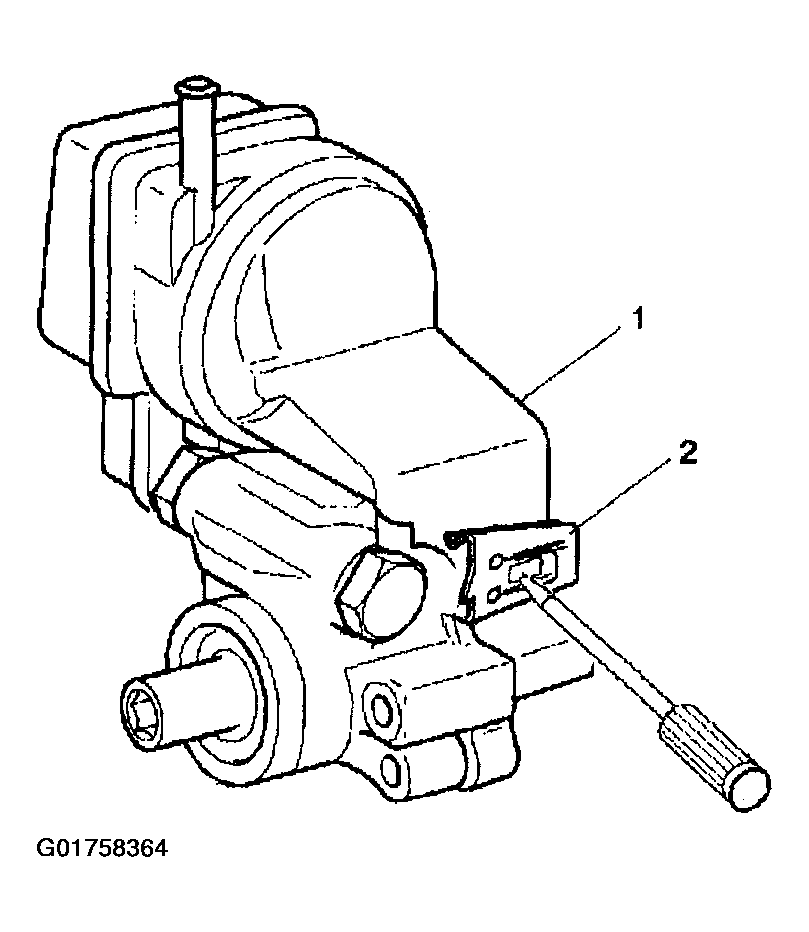

    Fig 2: Removing Retaining Clips From Reservoir Assembly
    G01758364Courtesy of GENERAL MOTORS CORP.
  4. Remove reservoir (1) from the hydraulic pump housing (3).
  5. Remove the O-ring seal (2) from the reservoir (1).
  6. Discard the O-ring seal (2).

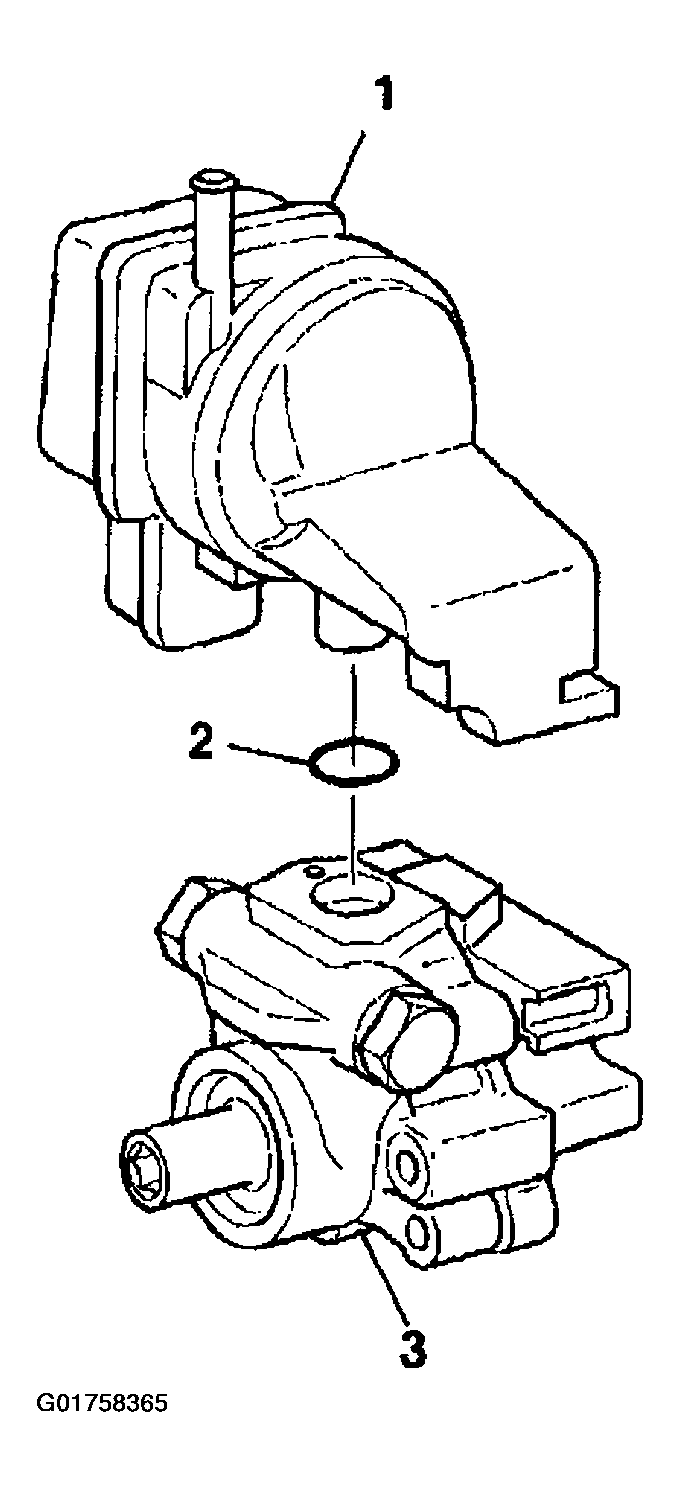

    Fig 3: Reservoir And O-Ring Seal
    G01758365Courtesy of GENERAL MOTORS CORP.
